纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-29) - CAB - GLASS AND WINDOWS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
420 次

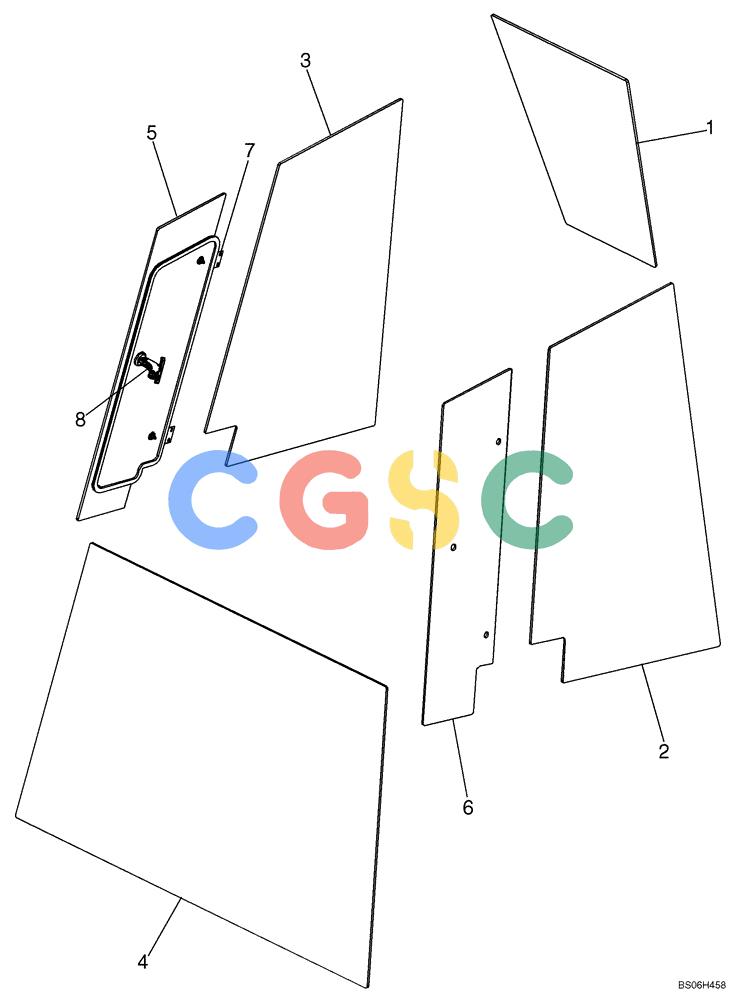

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87372039 | [1] | CAB GLASS ASSY | BURFront Cab Glass |
| 2. | 87372048 | [1] | CAB GLASS | BURRight-Hand Side, Cab Glass |
| 3. | 87372047 | [1] | CAB GLASS | BURLeft-Hand Side, Cab Glass |
| 4. | 87372049 | [1] | CAB GLASS | BURRear, Cab Glass |
| 5. | 87372050 | [1] | WINDOW | BURLeft-Hand Window Vent; See Figure 09-29A |
| 6. | 87372051 | [1] | WINDOW | BURRight-Hand Window Vent; See Figure 09-29A |
| 7. | 87397400 | [4] | HINGE | BURVent Window Hinge; See Figure 09-29A |
| 8. | 87397399 | [2] | LATCH | BURVent Window Latch; See Figure 09-29A |
