纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-29A) - CAB - WINDOW VENTS - HARDWARE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
823 次

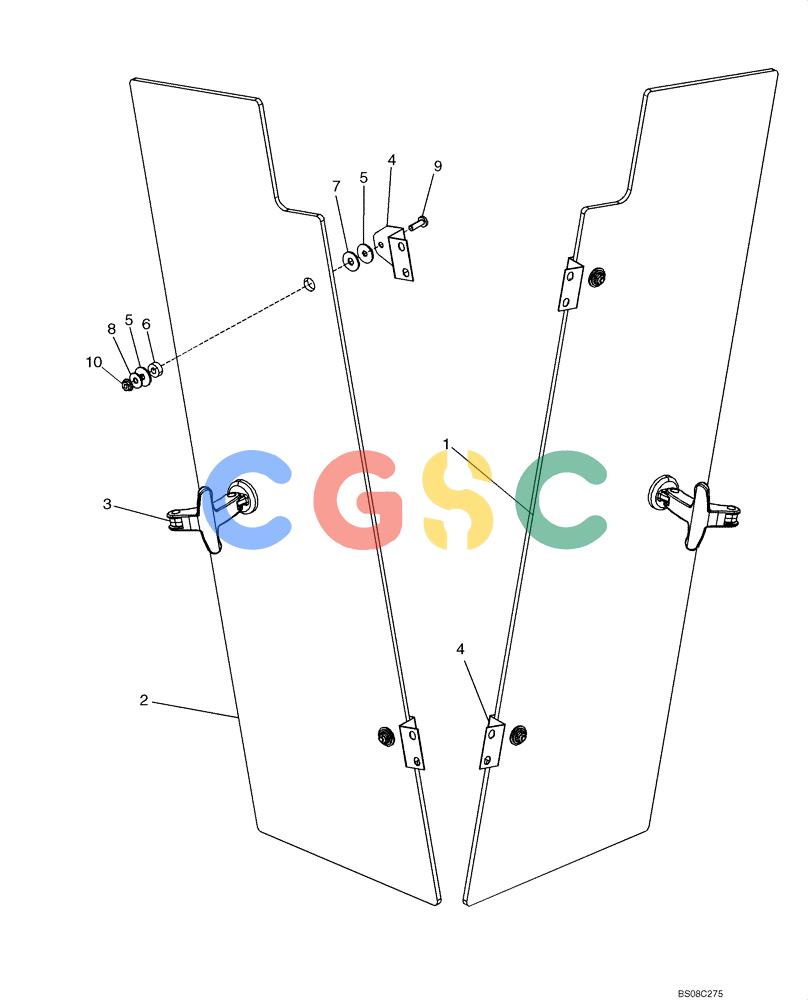

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87372050 | [1] | WINDOW | BURLeft-Hand Vent |
| 2. | 87372051 | [1] | WINDOW | BURRight-Hand Vent |
| 3. | 87397399 | [2] | LATCH | BURVent Window |
| 4. | 87397400 | [4] | HINGE | BURVent Window |
| 5. | 87615099 | [8] | WASHER | BURWASHER, Nylon |
| 6. | 87517926 | [4] | BUSHING | BURPlastic |
| 7. | 87517925 | [4] | WASHER | BURFoam |
| 8. | 86624182 | [4] | WASHER,6.6mm ID x 18mm OD x 1.6mm Thk | FOR |
| 9. | 86511830 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8 | ZED |
| 10. | 9804276 | [4] | FLANGE NUT,M6 x 1.0, Cl 8 | NH |
| . . | 87615086 | [1] | SEAL | BURSeal, Vent Window; Not Illustrated |
