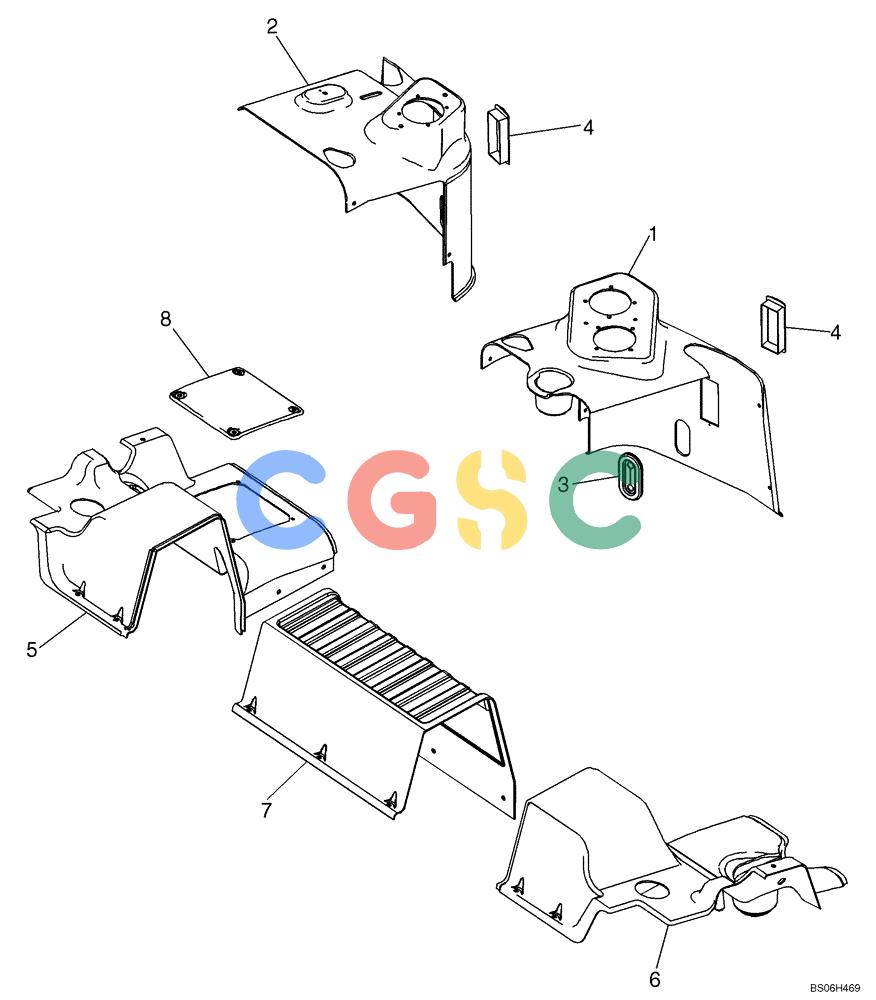

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-30) - CAB - CONSOLES, SIDE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
625 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87550949 | [1] | CONSOLE | BURRight-Hand Gray Console |
| 2. | 87372055 | [1] | CONSOLE | BURLeft-Hand Gray Console |
| 3. | 76067249 | [4] | SHIELD | LECSeal, Lockout/Parking Brake Levers |
| 4. | 76079036 | [2] | VENT | LECLouver |
| 5. | 87372034 | [1] | COVER | BHBLeft-Hand Rear HVAC Cover |
| 6. | 87372036 | [1] | COVER | BHBRight-Hand Rear HVAC Cover |
| 7. | 87372052 | [1] | COVER | BHBCenter Rear HVAC Cover |
| 8. | 87530504 | [1] | CAP | BHBGray Controller Cover |
