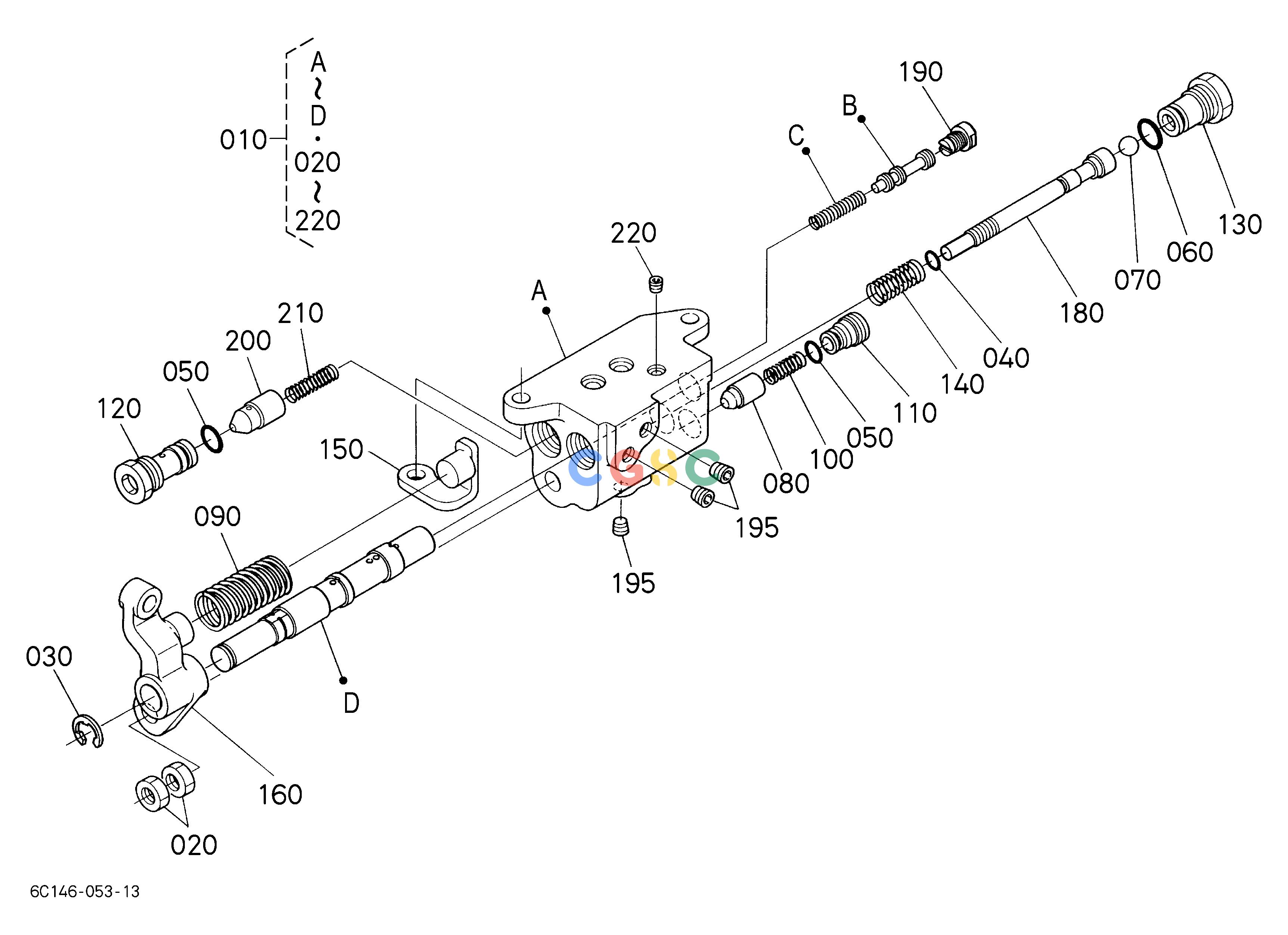

久保田零件查询J41000 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YR89800100
|
[1] |
ASSY VALVE,CONTROL
|
2.9700(lbs); 1.350
|
| 010. |
YR89800103
|
[1] |
ASSY VALVE,CONTROL
|
2.9700(lbs); 1.350
|
| 010. |
YR89800104
|
[1] |
ASSY VALVE,CONTROL
|
2.9700(lbs); 1.350
|
| 020. |
0211250080
|
[2] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 030. |
0461350090
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 040. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481700090
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 080. |
YR26500510
|
[1] |
POPPET
|
0.0264(lbs); 0.012
|
| 090. |
YR26500910
|
[1] |
SPRING,RETURN
|
0.0264(lbs); 0.012
|
| 100. |
YR26500920
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 110. |
YR57500310
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 120. |
YR57500410
|
[1] |
PLUG
|
0.0550(lbs); 0.025
|
| 130. |
YR57500510
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 140. |
YR57500710
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 150. |
YR68900310
|
[1] |
HOLDER,SPRING
|
0.0550(lbs); 0.025
|
| 160. |
YR68900610
|
[1] |
LEVER
|
0.0880(lbs); 0.040
|
| 160. |
YR68900612
|
[1] |
LEVER
|
0.0880(lbs); 0.040
|
| 180. |
YR89800610
|
[1] |
POPPET
|
0.0792(lbs); 0.036
|
| 190. |
YR89800830
|
[1] |
PLUG
|
0.0220(lbs); 0.010
|
| 195. |
YT10421010
|
[3] |
PLUG,M8
|
0.0110(lbs); 0.005
|
| 200. |
YT50900130
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 200. |
YR73020213
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 210. |
YT50900140
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 220. |
YT68010190
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
