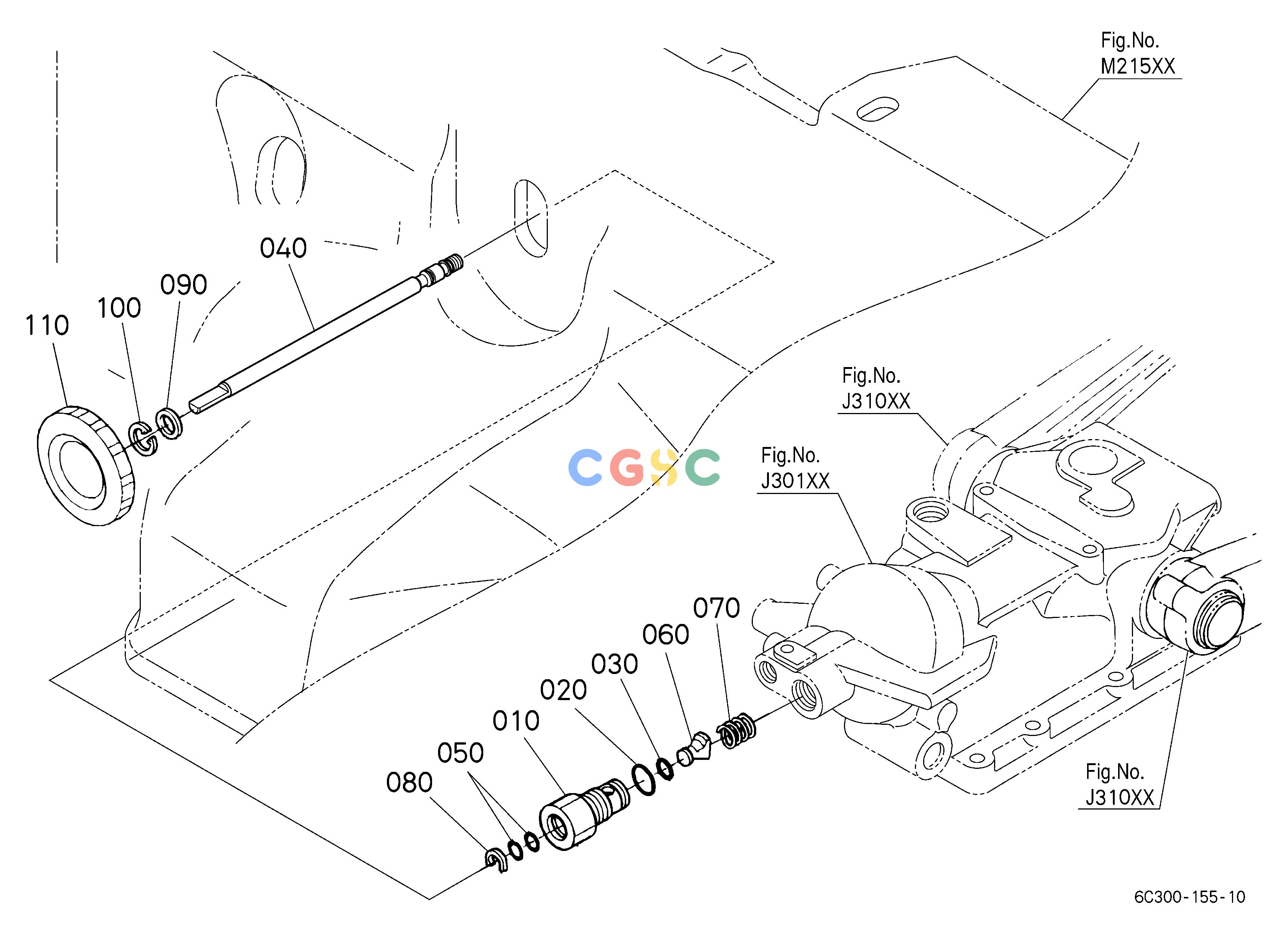

久保田零件查询J42801 FALL ADJUSTMENT SHAFT ## S.No.<=31570 S.No.;<=31570 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04037210
|
[1] |
BODY
|
0.1694(lbs); 0.077
|
| 020. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 030. |
0481606120
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 040. |
6C35737220
|
[1] |
SHAFT,HYD.ADJUST
|
0.3674(lbs); 0.167
|
| 050. |
0481700080
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
6C04037250
|
[1] |
POPPET
|
0.0132(lbs); 0.006
|
| 070. |
6C04037430
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 080. |
6C04037410
|
[1] |
STOPPER
|
0.0044(lbs); 0.002
|
| 090. |
6C04037420
|
[1] |
COLLAR
|
0.0022(lbs); 0.001
|
| 100. |
0461100170
|
[1] |
CIR-CLIP,INTERNAL
|
0.0022(lbs); 0.001
|
| 110. |
3741036643
|
[1] |
GRIP
|
0.0660(lbs); 0.030
|
