纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-34) - CAB - MIRROR, SUN SHADE, GRAB HANDLE, DOME LAMP, ANTENNA New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
538 次

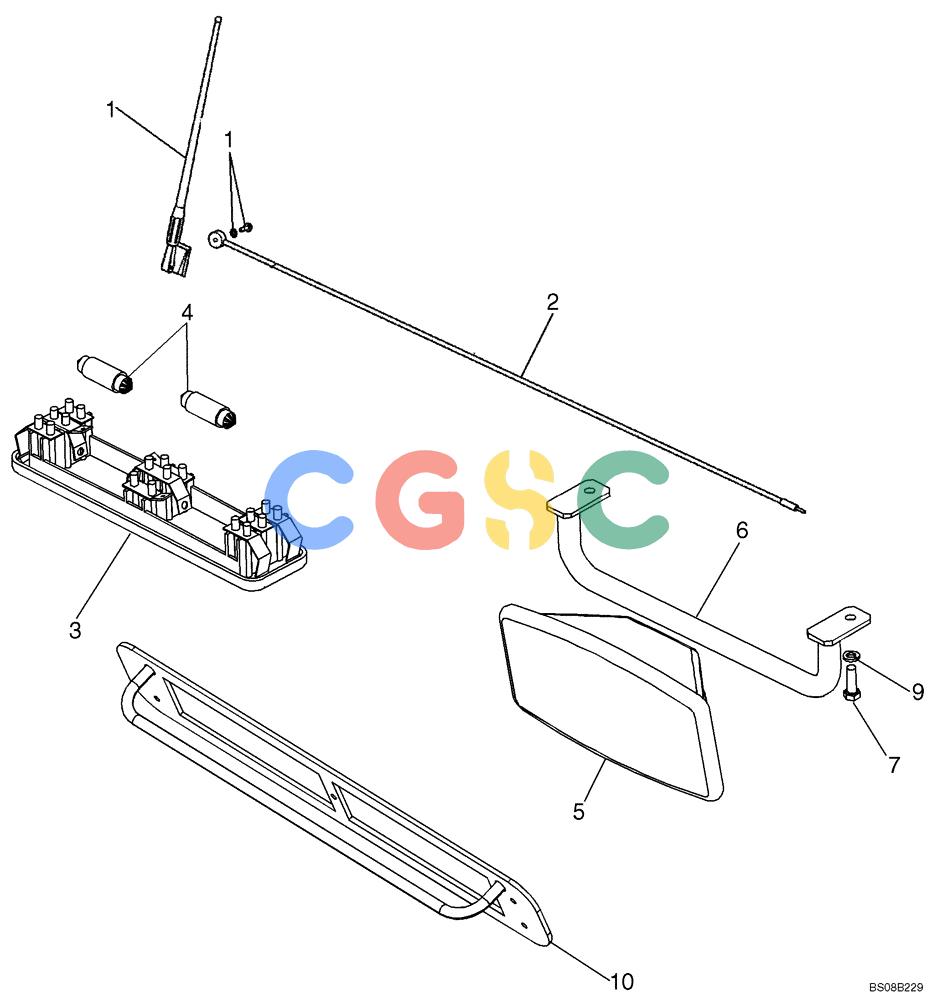

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197745A1 | [1] | ANTENNA | CASAntenna, Radio; Incl flat Waher and Nut Which Are Not Serviced Separately |
| 2. | 198962A1 | [2] | CABLE | CASAntenna Cable, Ground |
| 3. | 87550942 | [1] | COURTESY LIGHT | BURDOME LIGHT Dome Lamp, 12 V |
| 4. | 87550980 | [1] | BULB | BUR12V, 10W Bulb Superseded by part number: E35556 |
| 5. | 76067706 | [1] | REAR VIEW MIRROR | LEC |
| 6. | 87444309 | [1] | BRACKET | BURRear View Mirror |
| 7. | 614-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 8. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 9. | 892-11008 | [2] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 10. | 87517929 | [1] | BRACKET | BURRadio Mount Bracket |
| 11. | 1535219C1 | [1] | COVER | IHRadio Opening |
