神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (02-005) - VALVE MECHANISM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
251 次

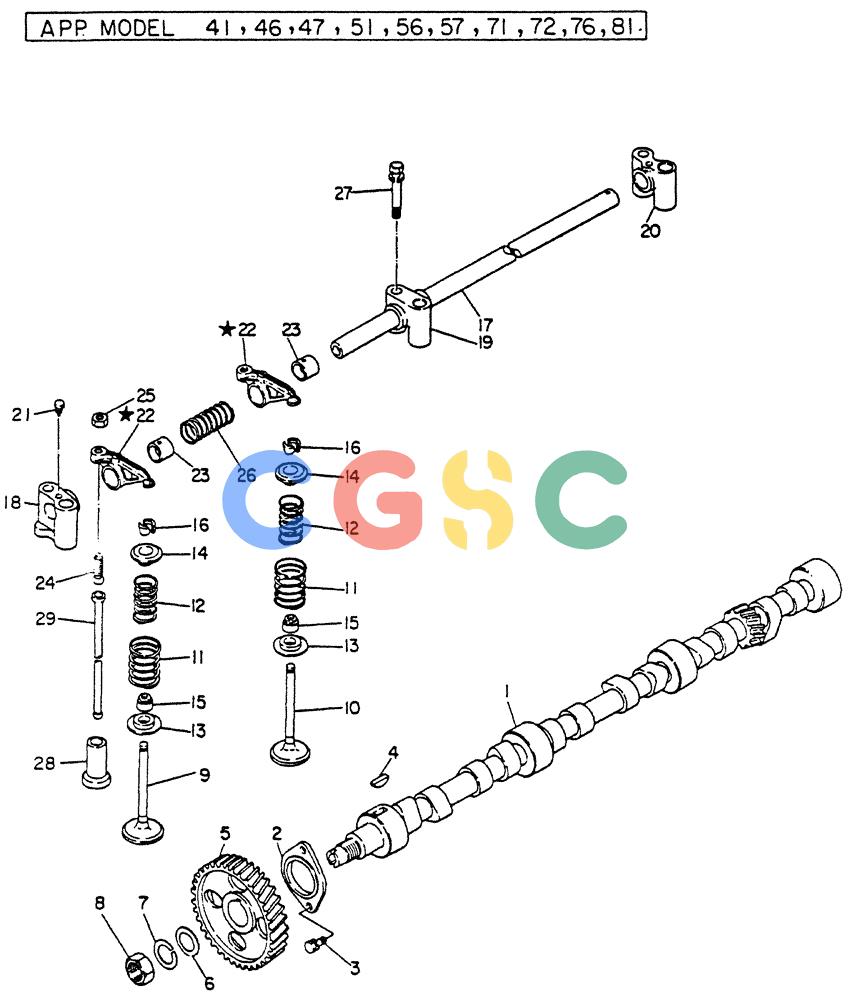

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONVALVE MECHANISM |
| 1. | VG13001Z5500 | [1] | CAM SHAFT, FOR 41,46,47,51,56,57,72,76,81 ONLY | |
| 1. | VG13001Z5501 | [1] | CAMSHAFT CAM SHAFT, FOR 71 ONLY | CAMSHAFT CAM SHAFT, FOR 71 ONLY |
| 2. | VG13010Z5500 | [1] | PLATE | KOBPLATE-LOCATING |
| 3. | VG0B11081662 | [1] | B0LT, W/WASHER | |
| 4. | VG0092662500 | [1] | KEY | KOBKEY-WDF |
| 5. | VG13024J2000 | [1] | DRIVEN GEAR | KOBGEAR-CAMSHFT |
| 6. | VG0891545410 | [1] | LOCK WASHER | KOBWASHER-PLAIN |
| 7. | VG0891515410 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 8. | VG9111190014 | [1] | NUT NUT-HEX | NUT NUT-HEX |
| 9. | VG13201Z5000 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE-INLET |
| 10. | VG13202Z5001 | [6] | VALVE | KOBVALVE-EXHAUST |
| 11. | VG13203Z5500 | [12] | SPRING | KOBSPRING-VALVE OUT |
| 12. | VG13204Z5500 | [12] | SPRING | KOBSPRING-VALVE IN |
| 13. | VG13206J2001 | [12] | VALVE SEAT | KOBSEAT-SPR |
| 14. | VG13209J2000 | [12] | BRACKET SEAT-SPR | BRACKET SEAT-SPR |
| 15. | VG13207Z5001 | [2] | SEAL | KOBSEAL-STEM VALVE |
| 16. | VG1320BJ2001 | [24] | COLLAR-SPLIT | |
| 17. | VG13252Z5000 | [1] | SHAFT | KOBSHAFT ASSY-ROCK |
| 18. | VG13221J2001 | [1] | U-BRACKET | KOBBRACKET-ROCKER |
| 19. | VG13222J2000 | [5] | U-BRACKET | KOBBRACKET-ROCKER |
| 20. | VG13223J2001 | [1] | U-BRACKET | KOBBRACKET-ROCKER |
| 21. | VG1904796000 | [2] | BOLT BOLT-STOPPER, CE | BOLT BOLT-STOPPER, CE |
| 22-23. | VG13257Z5000 | [2] | ROCKER ARM | KOBROCKER ASSY-VAL |
| 23. | VG13260Z5000 | [2] | BUSHING | KOBBUSHING |
| 24. | VG1328796000 | [2] | SCREW-ADJ. | |
| 25. | VG1328696000 | [2] | NUT | |
| 26. | VG13256J2000 | [6] | SPRING | KOBSPRING-INSIDE |
| 27. | VG0112100054 | [7] | BOLT BOLT-W/SPW | BOLT BOLT-W/SPW |
| 28. | VG13231Z5000 | [12] | CAM FOLLOWER | KOBFOLLOWER-CAM |
| 29. | VG13238Z5000 | [12] | PUSH ROD | KOBROD-PUSH |
