纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-03) - SPROCKET, TRACK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
194 次

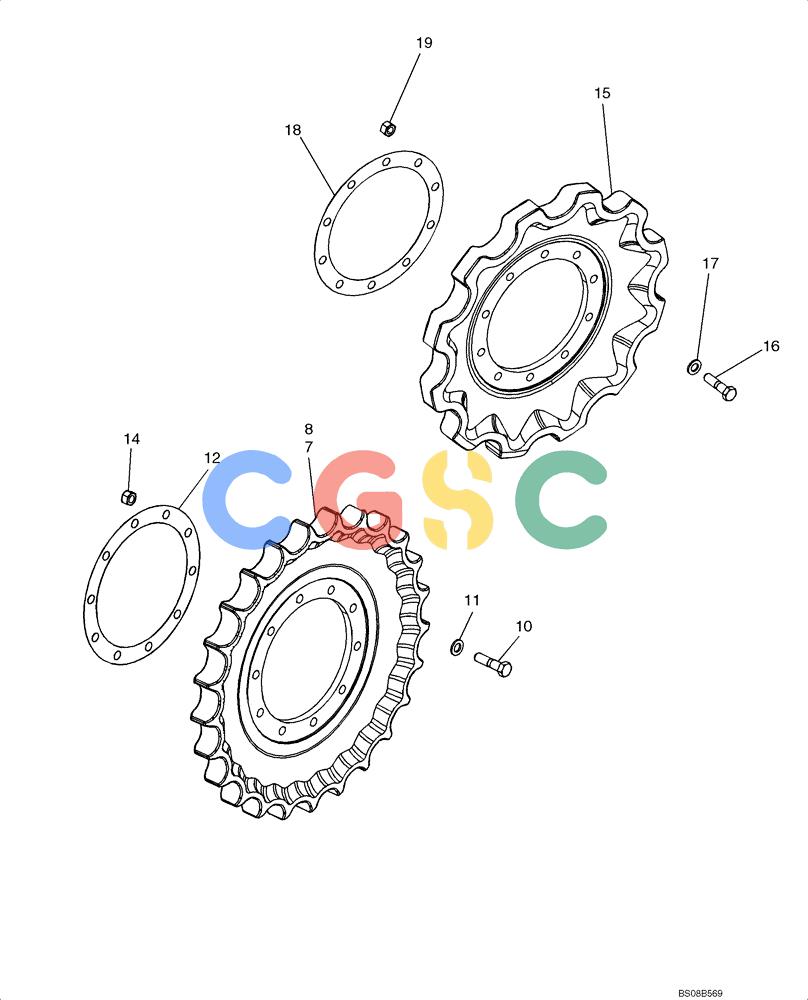

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 7. | 86981861 | [2] | DRIVING SPROCKET | BUR25T; Sealed and Lubricated Track (S.A.L.T.) Superseded by part number: 404056A1 |
| 7. | 404060A1 | [2] | DRIVING SPROCKET | BUR25T; Relieved 57 and 62 Gauge; RECOMMENDED FOR PACKING CONDITIONS ONLY |
| 8. | 403559A1 | [2] | DRIVING SPROCKET | BUR25T; Relieved 67 and 70 Gauge; RECOMMENDED FOR PACKING CONDITIONS ONLY |
| 8. | 86981854 | [2] | DRIVING SPROCKET | BUR25T; Sealed and Lubricated Track (S.A.L.T.) Superseded by part number: 403555A1 |
| 10. | 86982082 | [20] | Bolt, 3/4 x 2-3/4 | |
| 10. | R27954 | [20] | BOLT | CAS3/4 x 3 |
| 15. | 87637437 | [2] | SPROCKET | BURSPROCKET, DRIVING, 12T; Extended Life Track (E.L.T.), 57 & 62 Gauge |
| 11. | D34666 | [20] | WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk | CAS |
| 15. | 87637436 | [2] | SPROCKET | BURSPROCKET, DRIVING, 12T; Extended Life Track (E.L.T.), 67 & 70 Gauge |
| 12. | 404152A1 | [1] | SHIM | BUR |
| 14. | 29-1012 | [20] | NUT,3/4"-10, G8 | CASUse Loctite No. 242 |
| . . | ZPX24236 | [1] | SEALANT, THREAD | MKTLoctite, No. 242, 50 ml |
