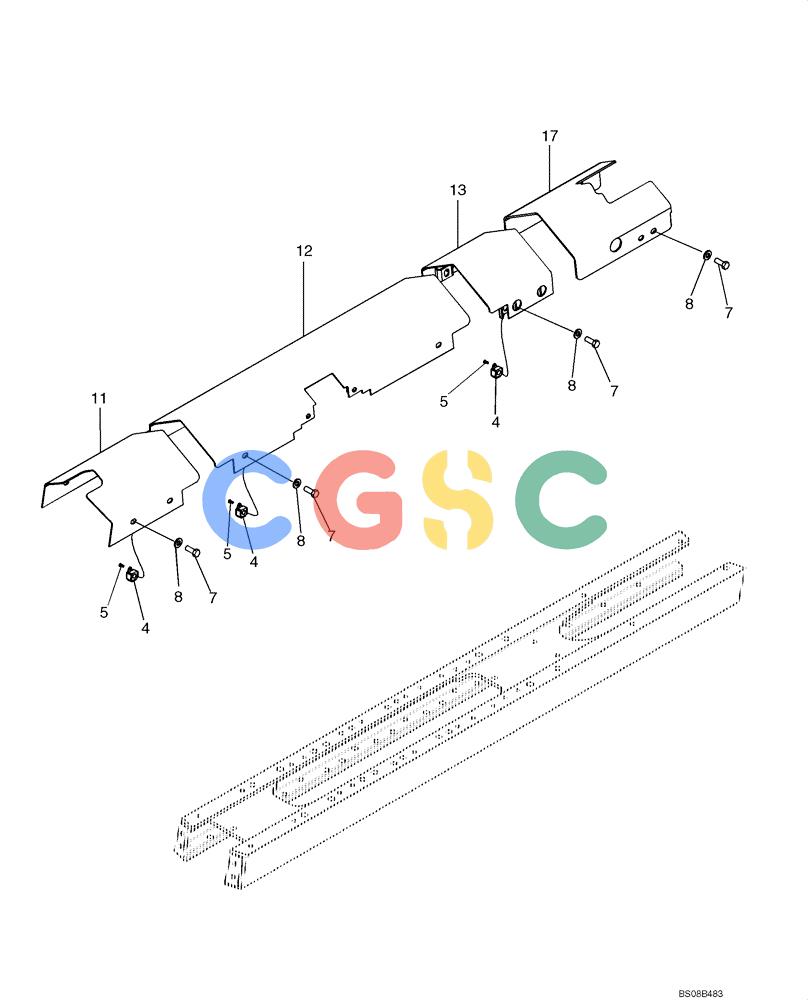

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-02) - FRAME, TRACK - COVERS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | 129-857 | [30] | SQUARE NUT,Sq, 1/2"-13 | CAS |
| 5. | 336371A1 | [30] | PIN | CAS |
| 7. | 413-820 | [38] | BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5 | CAS Superseded by part number: 87670, 72187215 |
| 8. | 496-21053 | [38] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| . . | 87644036 | [1] | KIT, Track Covers; Includes Ref 11-17 | |
| 11. | 87644088 | [1] | COVER | BURCOVER, RH Rear |
| 12. | 87644137 | [1] | COVER | BURCOVER, RH Center |
| 13. | 87644144 | [1] | COVER | BURCOVER, RH Front |
| 14. | 87644078 | [1] | COVER | BURCOVER, LH Rear; Not Illustrated |
| 15. | 87644125 | [1] | COVER | BURCOVER, LH Center; Not Illustrated |
| 16. | 87644134 | [1] | COVER | BURCOVER, LH Front; Not Illustrated |
| 17. | 87644112 | [2] | COVER | BURCOVER, Idler |
