纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-06) - TRACK IDLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
617 次

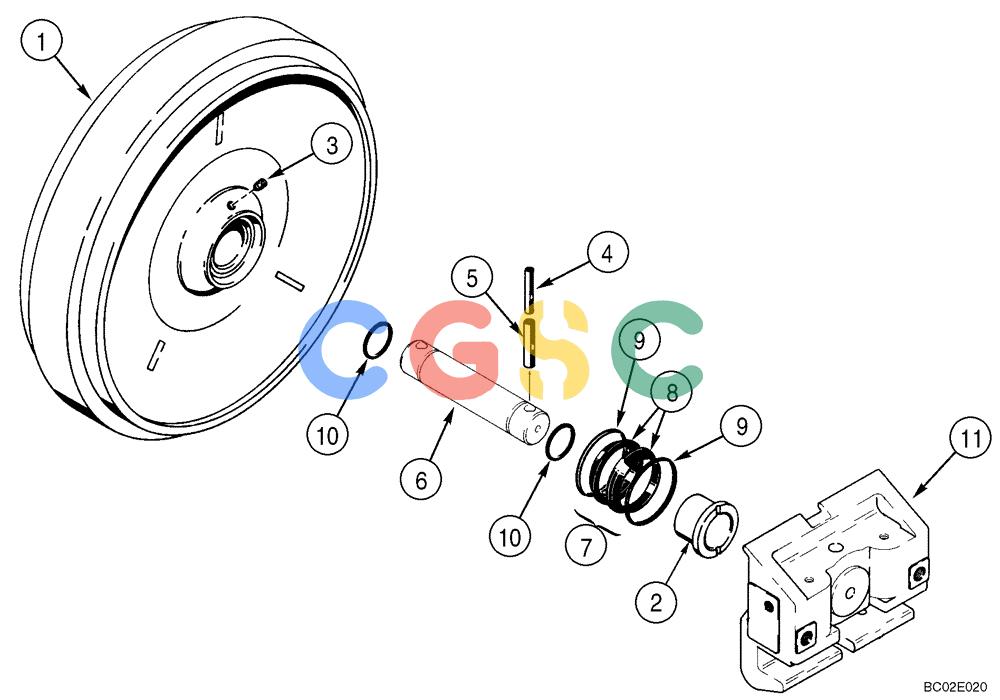

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87353998 | [2] | IDLER, FRONT; Incl. Ref 1 - 11; Replaces 86987773; Not Available As An Assembly, Order Components; Used In Production, For Service Order 103384A2, Idler/A | |
| . . | 103384A2 | [2] | FRONT IDLER | CASIncl. Ref 1 - 11 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHub; Incl. Ref 2 |
| 2. | 103391A1 | [2] | BUSHING,60.26mm ID x 68mm OD x 46mm L | CAS |
| 3. | R33557 | [1] | PLUG | CAS Superseded by part number: J2537437 |
| 4. | 838-51090 | [2] | PIN,M10 x 90, Coiled | CASRoll |
| 5. | 838-51690 | [2] | LOCK PIN,M16 x 90, Slotted | CASRoll |
| 6. | 103390A1 | [1] | SHAFT | CAS |
| 7. | S116825 | [2] | SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk | CASSeal; Incl. Ref 8, 9 |
| 10. | 238-5227 | [2] | O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro | CAS Superseded by part number: 510121 |
| 11. | 419779A1 | [2] | BRACKET | CAS |
