纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-07) - TRACK ROLLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
801 次

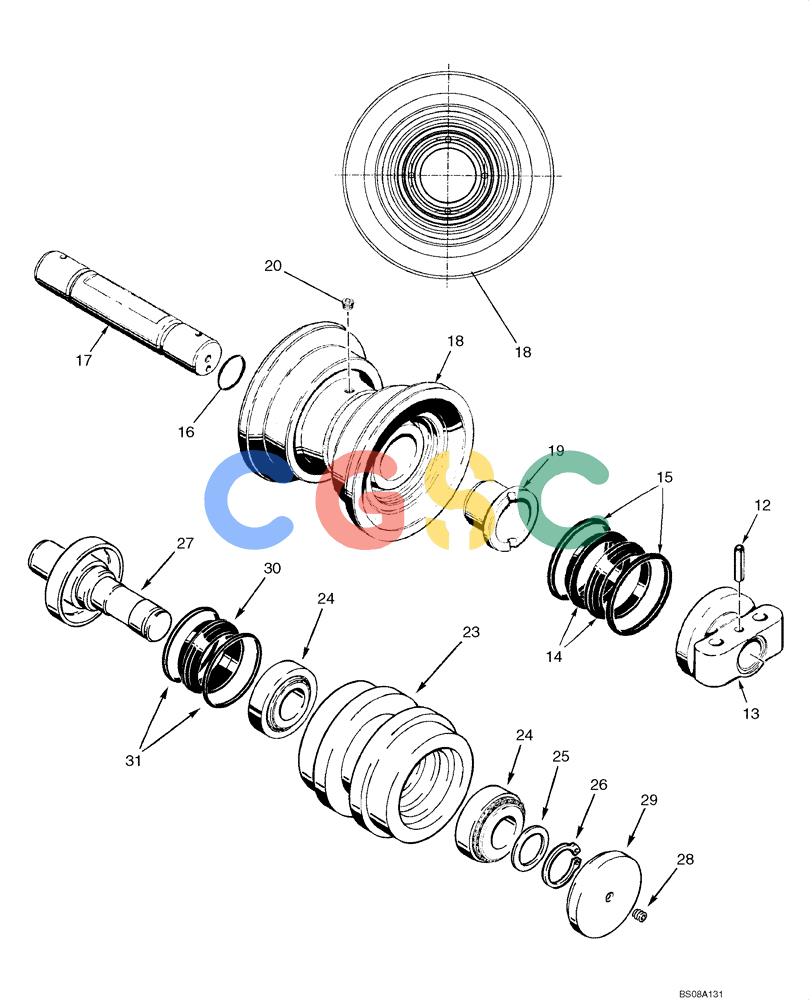

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87581583 | [12] | ROLLER | BURROLLER ASSY, Painted, Incl. Ref 12 - 20; With Lubrication Ports |
| 12. | R33563 | [2] | ROLL PIN | CAS |
| 13. | 427026A1 | [2] | BRACKET | BUR |
| . . | S113075 | [2] | SEAL | CASIncl. Ref 14, 15 |
| 14. | NSS | [2] | NOT SERVICED SEPARATELY | CONSeal |
| 15. | N6846 | [2] | O-RING,75.7mm ID x 9.5mm Width | CASFace Seal |
| 16. | 235782 | [2] | O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro | WIN |
| 17. | R33561 | [1] | SHAFT | CAS |
| 19. | R33556 | [2] | BUSHING,50.28mm ID x 70.5mm OD x 46mm L | CAS |
| 20. | R33557 | [1] | PLUG | CAS Superseded by part number: J2537437 |
| . . | 87314691 | [2] | ROLLER ASSY. | BURCarrier; Incl. Ref 23 - 31; Service As A Complete Assembly |
| 24. | 3142394R91 | [2] | TAPERED ROLLER BEARING | IH Superseded by part number: 87668909 |
| 25. | 198945A1 | [1] | SPACER | CAS |
| 26. | 800-5140 | [1] | SNAP RING,M40, Ext, Hvy | CAS Superseded by part number: 370006 |
| . . | R33607 | [1] | SEAL | CASFace; Incl. Ref 30, 31 Superseded by part number: D8846056 |
| 31. | N6847 | [2] | O-RING,75mm ID x 8mm Width | CAS |
