纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-09) - TRACK CHAIN, SEALED New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
552 次

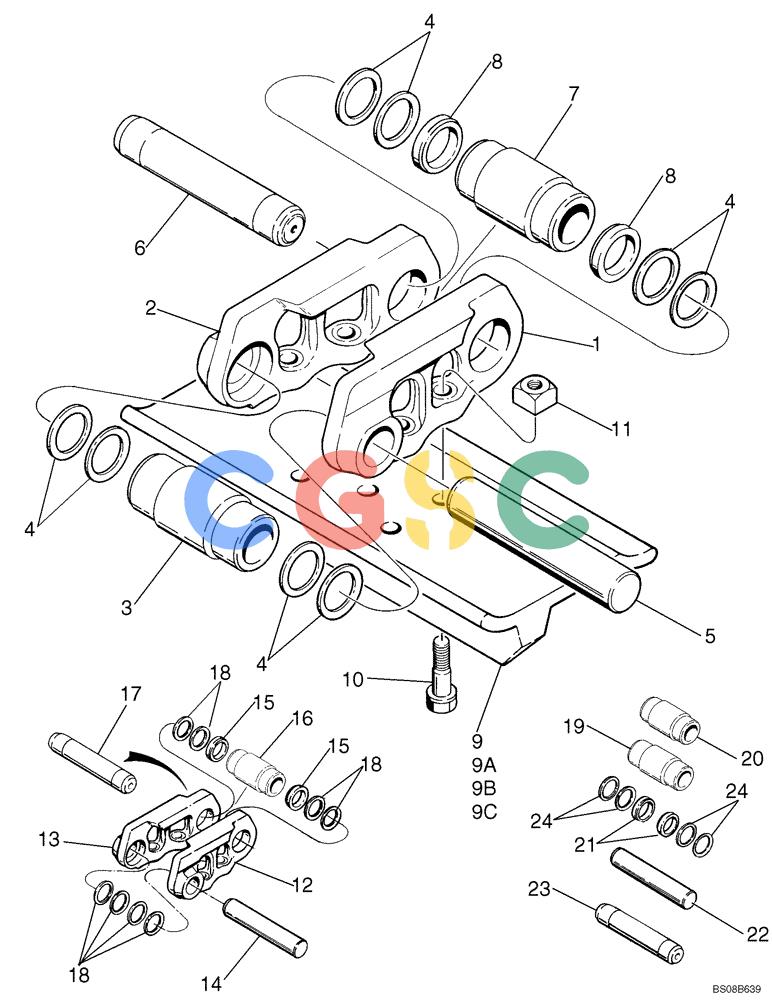

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 86982106 | [2] | TRACK ASSY, 457 mm (18 inch); Chain Assy; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9, 10, 11 | |
| . . | 86982108 | [2] | TRACK ASSY, 508 mm (20 inch); Chain Assy; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9A, 10, 11 | |
| . . | 86982110 | [2] | TRACK ASSY, 610 mm (24 inch); Chain Assy; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9B, 10, 11 | |
| . . | 86982112 | [2] | TRACK ASSY, 711 mm (28 inch); Chain Assy; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9C, 10, 11 | |
| . . | 407015A1 | [1] | TRACK CHAIN | BURIncl. Ref 1 - 8; Replaces 86982094 Chain Assy Service Kit |
| 1. | 295178A2 | [40] | LINK | BURRight-Hand |
| 2. | 295177A2 | [40] | LINK | BURLeft-Hand |
| 3. | R56517 | [39] | BUSHING | CAS123,5 mm (4-7/8 in) OD; Link |
| 4. | R50211 | [160] | WASHER | CAS |
| 5. | R49792 | [39] | PIN,33.48mm OD x 183.5mm L | CAS183 x 33 mm |
| 6. | R54349 | [1] | PIN,33.04mm OD x 183.5mm L | BURMaster Link |
| 7. | R56516 | [1] | BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L | CAS108 mm (4-1/4 in) OD; Master Link |
| 8. | R50210 | [2] | SPACER | CAS |
| 9. | 295181A1 | [40] | TRACK SHOE | CAS457 mm (18 inch) |
| 9A. | 300199A1 | [40] | SHOE | CAS508 mm (20 inch) |
| 9B. | 295182A1 | [40] | SHOE | CAS610 mm (24 inch) |
| 9C. | 295183A1 | [40] | SHOE | CAS711 mm (28 inch) |
| 10. | 295318A1 | [160] | BOLT,Hex, 5/8" - 18 x 2 1/8" | CAS5/8 NF x 2-1/8 |
| 11. | K134536 | [160] | NUT | CAS5/8 NF Superseded by part number: PK134536 |
| . . | 86982396 | [1] | KIT | BHBIncl. Ref 12 - 18, Instructions; One Joint Repair Kit |
| . . | 434144A1 | [1] | SERVICE KIT | BURPin and Bushing Kit; Incl. Ref 19 - 24 Superseded by part number: R50210, R56517, R49792, R50211, R56516, R54281 |
| 23. | R54281 | [2] | PIN,33.41mm OD x 183.5mm L | CASMaster Link |
