纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (05-08) - TRACK GUARDS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
198 次

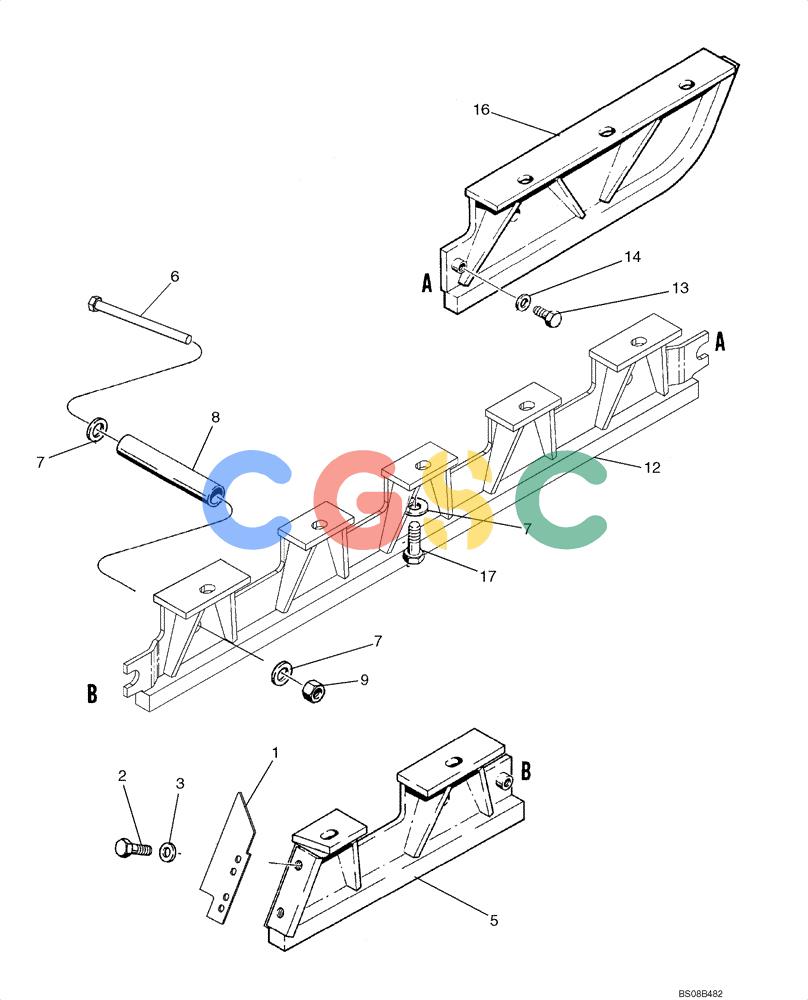

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87644114 | [4] | COVER | BURGUARD, Rear |
| 2. | 86622997 | [16] | BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd | FOR |
| 3. | 496-21066 | [16] | WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk | CAS Superseded by part number: 5122064 |
| 4. | 86987770 | [2] | GUARD ASSY. | BURLeft-Hand Rear; Not Illustrated |
| 5. | 86987771 | [2] | GUARD ASSY. | BURRight-Hand Rear |
| 6. | 413-12152 | [8] | BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5 | CAS Superseded by part number: 83980547 |
| 7. | 496-11081 | [56] | WASHER,13/16" x 1 1/2" x .134", HDN | CAS Superseded by part number: 394632 |
| 8. | D35698 | [8] | SPACER | CAS |
| 9. | 231-41112 | [8] | LOCK NUT,3/4"-10, GB | CAS |
| 12. | 86987790 | [4] | GUARD ASSY. | BURCenter |
| 13. | 87018374 | [8] | BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd | BRR |
| 14. | 195-81030 | [8] | WASHER | CAS17/32 x 1-1/2 x 3/16 Superseded by part number: 86624149 |
| 15. | 86987768 | [2] | GUARD ASSY. | CASLeft-Hand Front; Not Illustrated |
| 16. | 86987769 | [2] | GUARD ASSY. | CASRight-Hand Front |
| 17. | 87018375 | [40] | BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8, Full Thd | BRR |
