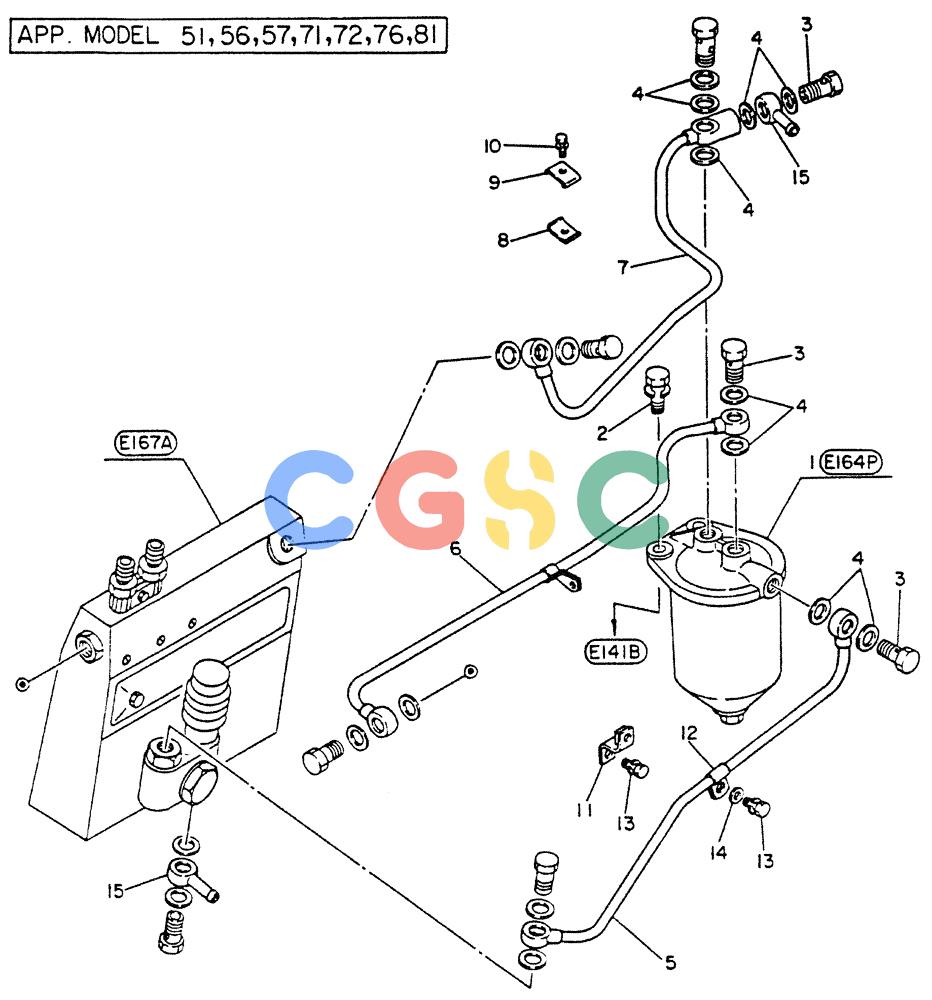

神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (04-005[02]) - FILTER-FUEL (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG16400Z5000 | [1] | ELEMENT | KOBFILTER ASSY-FUEL (INNER PARTS 04-007) Superseded by part number: VG16400Z5020 |
| 2. | VG0811103062 | [2] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
| 3. | VG1643490000 | [3] | SPECIAL BOLT | KOBBOLT-EYE Superseded by part number: 1643490000 |
| 4. | VG0135121144 | [9] | GASKET | KOBGASKET |
| 5. | VG16817Z5513 | [1] | TUBE ASSY-FUEL, FOR 41,46,47 ONLY | |
| 5. | VG16817Z5514 | [1] | TUBE | KOBTUBE ASSY-FUEL,FOR 51,56,57,71,72,76,81 ONLY |
| 6. | VG16818Z5502 | [1] | ASSY, TUBE TUBE ASSY, FOR 41,46,47 ONLY | ASSY, TUBE TUBE ASSY, FOR 41,46,47 ONLY |
| 6. | VG16818Z5500 | [1] | KIT | KOBTUBE ASSY,FOR 51,56,57,71,72,76,81 ONLY |
| 7. | VG16812Z5519 | [1] | TUBE ASSY, FOR 41,46,47 ONLY | |
| 7. | VG16812Z5560 | [1] | TUBE | KOBTUBE ASSY, FOR 51,56,57,71,72,76,81 ONLY |
| 8. | VG16677Z7000 | [1] | CLIP CLIP-TUBE | CLIP CLIP-TUBE |
| 9. | VG16677Z7001 | [1] | CLIP CLIP-TUBE | CLIP CLIP-TUBE |
| 10. | VG0811062062 | [1] | BOLT BOLT, W/WASH\u00a3R | BOLT BOLT, W/WASH£R |
| 11. | VG99450Z5560 | [1] | STAY STAY | STAY STAY |
| 12. | VG0155110054 | [1] | CLIP CLIP | CLIP CLIP |
| 13. | VG0811081662 | [2] | BOLT BOLT,W/WASHER | BOLT BOLT,W/WASHER |
| 14. | VG0891543810 | [1] | WASHER WASHER-PLAIN | WASHER WASHER-PLAIN |
| 15. | VG1751690000 | [2] | HYD CONNECTOR | KOBCONNECTOR-RING Superseded by part number: 76602377 |
