纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-01) - FAN - FAN BELT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
819 次

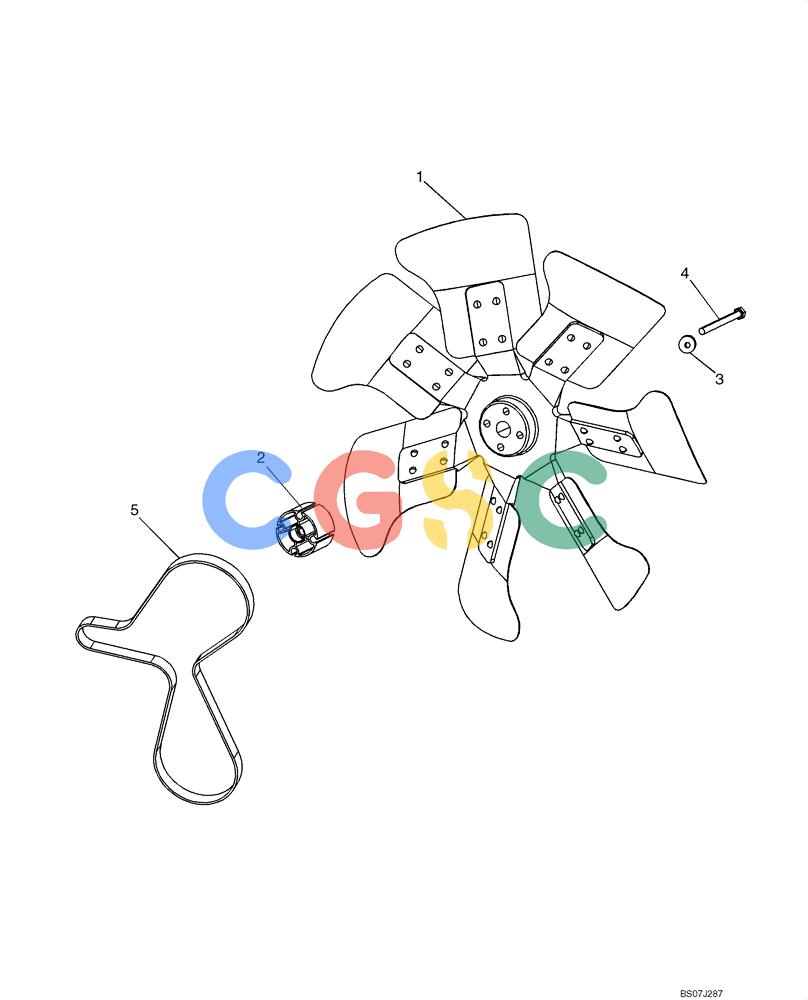

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87714752 | [1] | FAN | BURFAN, Pusher |
| 2. | 136260A1 | [1] | SPACER | CASSpacer |
| 3. | 85700654 | [4] | WASHER,10.5mm ID x 20mm OD x 2.5mm Thk | BASFan to Spacer; Use with 1 ml Adhesive Thread Loctite No. 243 |
| 4. | 814-10110 | [4] | BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8 | CASFan to Spacer; Use With 1 ml Adhesive Thread Loctite No. 243 Superseded by part number: 86508573 |
| 5. | 87452843 | [1] | V-BELT,3.56 mm W x 1714.50 mm L, 8 Ribs | CASEngine Fan and Alternator, Main |
