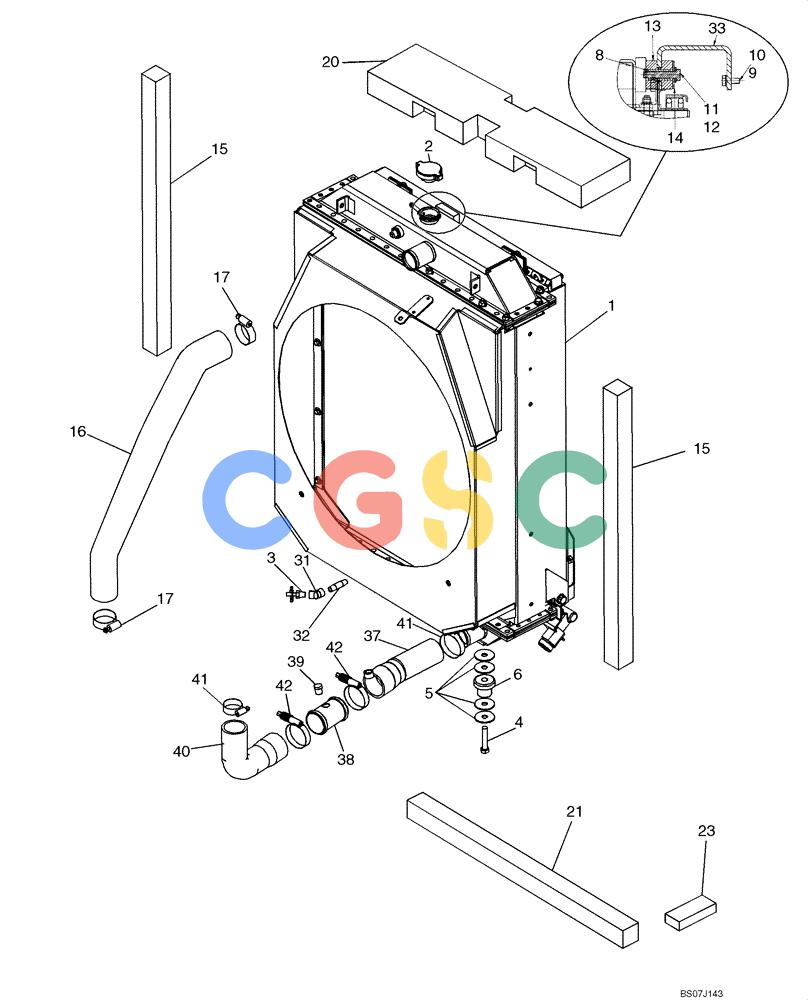

| 1. | 87660637 | [1] | RADIATOR | BURRadiator/Oil Cooler Assembly; See Figure 02-03 |
| 2. | A170241 | [1] | RADIATOR CAP | CAS Superseded by part number: 83957211 |
| 3. | 217-92 | [1] | COCK | CAS1/4 Superseded by part number: 86625234 |
| 4. | 814-12060 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8 | CAS Superseded by part number: 9706693 |
| 5. | R40262 | [8] | WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk | CAS |
| 6. | A59514 | [2] | RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L | CASMount |
| 8. | 4977100 | [1] | SPACER | LEC Superseded by part number: 75223896 |
| 9. | 627-10025 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106231 |
| 10. | 14496621 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | TTF |
| 11. | 827-12060 | [1] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | CAS Superseded by part number: 43263 |
| 12. | 12646921 | [1] | WASHER,12.2mm ID x 28mm OD x 3mm Thk | BHB Superseded by part number: 16887624 |
| 13. | 4977098 | [2] | ISOLATOR | LEC |
| 14. | 87026355 | [1] | WASHER,12.8mm ID x 50mm OD x 3mm Thk | GI |
| 15. | 87600679 | [2] | PAD | BURPad |
| 16. | 87571277 | [1] | HOSE | BURHose, Engine to Radiator Inlet; Use With Loctite 30525 Hi-Tack at Engine Outlet |
| 17. | 214-3140 | [2] | HOSE CLAMP,1-3/4" - 2-5/8", HD Worm | CAS Superseded by part number: 86637709 |
| 20. | 87600678 | [1] | FOAM INSULATION | BURAdhesive Back Seal; Upper |
| 21. | 87600681 | [1] | FOAM INSULATION,70mm W x 800mm L x 50mm Thk | BURLower Radiator Seal |
| 23. | 87600680 | [2] | SEAL | BURLower Seal |
| 31. | 87025801 | [1] | ELBOW | BUR45 Deg. Elbow |
| 32. | 221-1137 | [1] | PIPE,Nipple, 1/4" NPT x 2" | CAS Superseded by part number: 221-137 |
| 33. | 87587073 | [1] | BRACKET | BURBracket |
| 37. | 87390465 | [1] | HOSE,50.80 mm ID, 57.20 mm ID x 208.50 mm, SAE J20R4 CLASS C Or D1 | BURUse With Loctite 30525 Hi-Tack |
| 38. | 87390467 | [1] | TUBE | BURTube |
| 39. | 217-407 | [1] | PLUG,Hex Hd, 3/8"-18 | CASPipe; If Used Superseded by part number: 86836701 |
| 40. | 87398813 | [1] | HOSE,50.80 mm ID, 57.20 mm ID x 157.10 mm, SAE J20R4 CLASS C Or D2 | BURUse With Loctite 30525 Hi-Tack; Radiator to Engine Inlet |
| 42. | L115548 | [2] | CLAMP,57.15mm - 79.38mm | CAS |
