神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (08-001) - CLUTCH Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
358 次

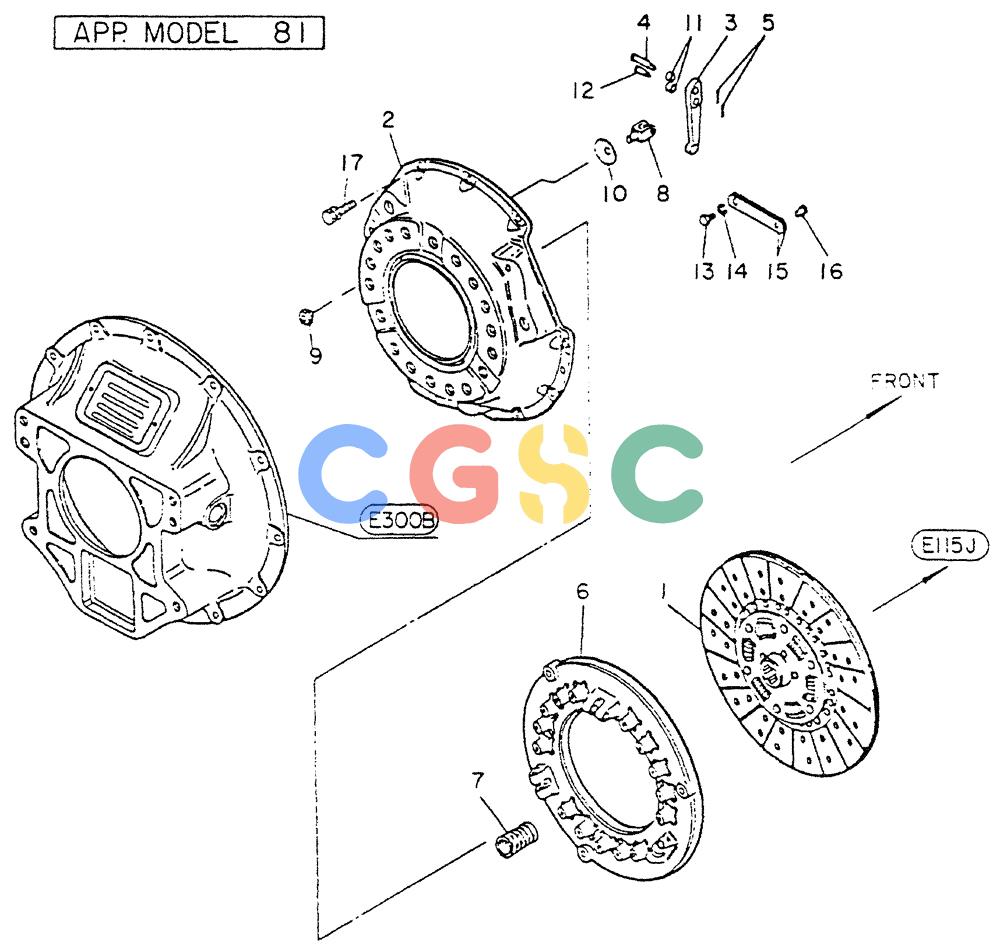

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG30100C0700 | [1] | DISC ASSY | |
| 2-16. | VG30210C0700 | [1] | COVER ASSY-CLUTCH | |
| 3. | VG30221C0700 | [3] | LEVER-RELEASE | |
| 4. | VG30226C0700 | [3] | PIN-YOKE | |
| 5. | VG0092121200 | [6] | PIN-COTTER | |
| 6. | VG30213C0700 | [1] | PLATE-PRESSURE | |
| 7. | VG30214C0700 | [15] | SPRING-PRESSURE | |
| 8. | VG30224C0700 | [3] | YOKE-RELEASE | |
| 9. | VG30229C0700 | [3] | NUT-ADJUSTING | |
| 10. | VG30232C0700 | [3] | SPRING | |
| 11. | VG30227C0700 | [1] | ROLLER-NEEDLE | |
| 12. | VG30225C0700 | [3] | PIN-RELEASE LEVER | |
| 13. | VG30245C0700 | [3] | BOLT | |
| 14. | VG0091511510 | [3] | WASHER-SPRING | |
| 15. | VG30241C0700 | [6] | STRAP-DRIVING | |
| 16. | VG30242C0700 | [5] | RIVET-DRIVING | |
| 17. | VG0812082028 | [9] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
