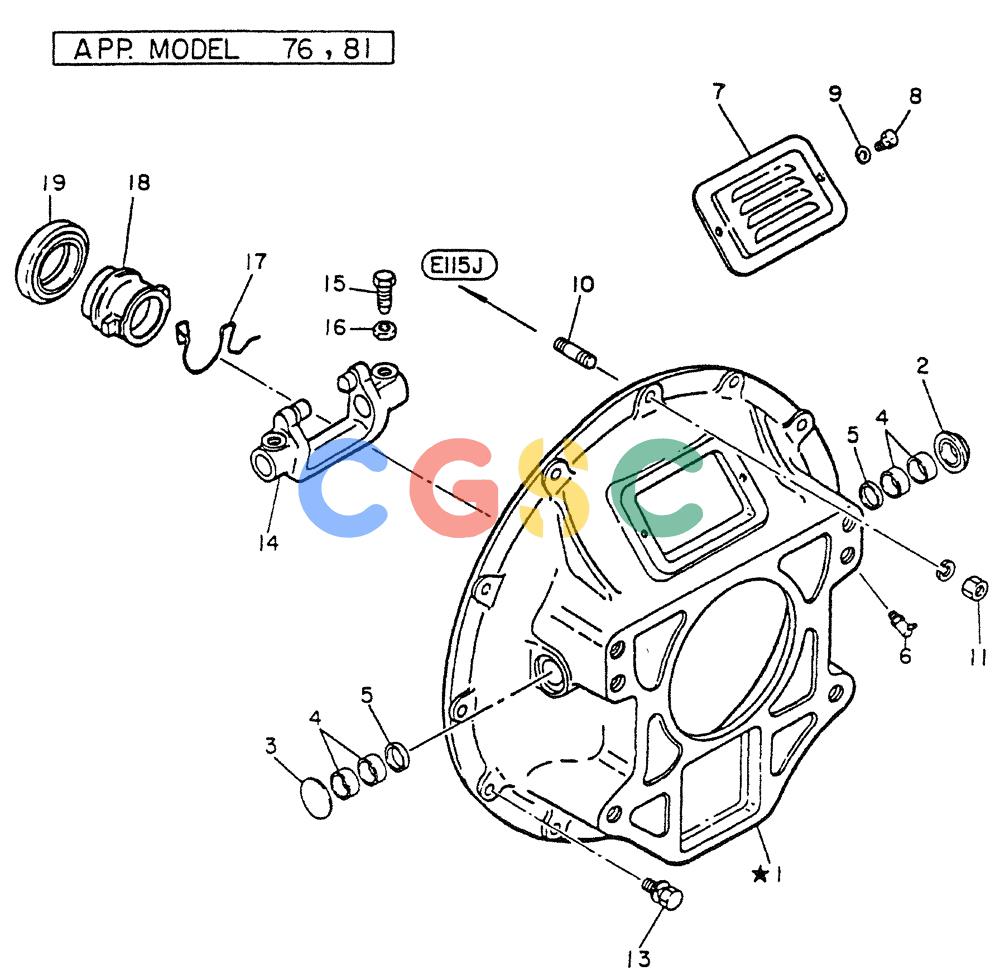

神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (08-002) - HOUSING-CLUTCH Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VG30400C0400 | [1] | HOUSING ASSY-CLUTCH | |
| 2. | VG30406C0400 | [1] | SEAL-OIL | |
| 3. | VG0093333500 | [1] | PLUG-EXP | |
| 4. | VG30402C0400 | [1] | BUSHING-CLUTCH SHA, FOR 76 ONLY | |
| 5. | VG30407C0400 | [1] | RING-DUST SEAL, FOR 76 ONLY | |
| 6. | VG0093220100 | [2] | FITTING | KOBNIPPLE-GREASE,FOR 81 ONLY |
| 7. | VG3042290060 | [1] | COVER-UP | |
| 8. | VG0811061210 | [2] | BOLT | |
| 9. | VG0891513610 | [2] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 10. | VG0822702510 | [3] | STUD | KOBSTUD |
| 11. | VG0891124010 | [3] | NUT | KOBNUT |
| 12. | VG0891524000 | [3] | SPRING | |
| 13. | VG0812103028 | [9] | BOLT | KOBBOLT, W/WASHER, FOR 76 ONLY |
| 14. | VG30515C0400 | [1] | YOKE RELEASE | |
| 15. | VG30538C0400 | [2] | SCREW-SET | |
| 16. | VG0891124210 | [2] | NUT NUT | NUT NUT |
| 17. | VG30514C0400 | [1] | SPRING-HOLDER | |
| 18. | VG30501C0500 | [1] | SLEEVE-RELEASE | |
| 19. | VG3050255100 | [1] | BEARING-REL | |
