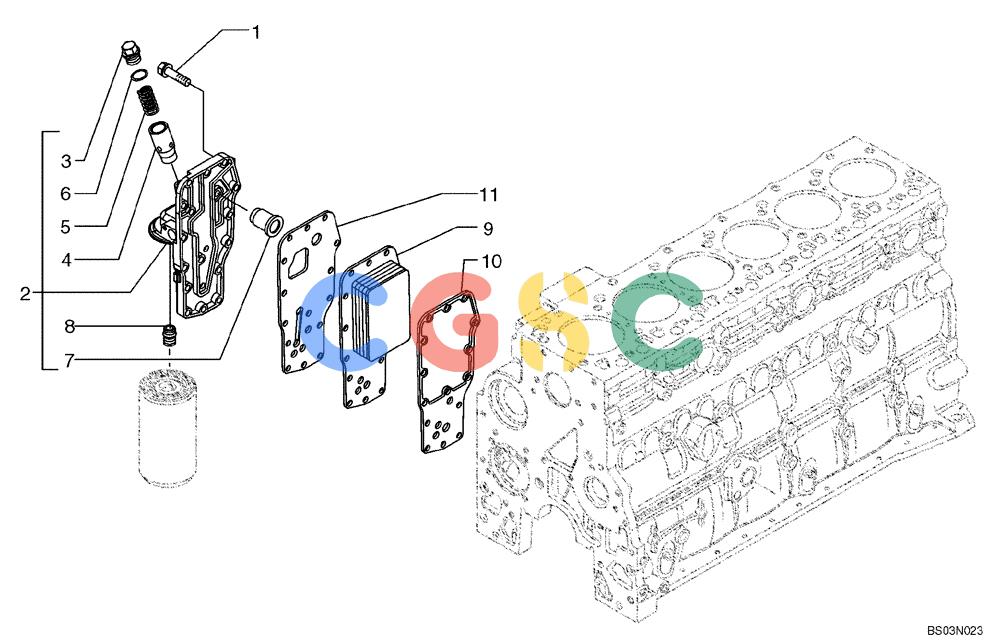

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-13) - OIL FILTER AND COOLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
917 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 2853780 | [1] | ENGINE OIL FILTER | TORHousing Assembly; Incl. Ref 3 - 8 Superseded by part number: 4895045, 4896410, 504096409, 4899566, 4896404 |
| 3. | 2853781 | [1] | PLUG | TORSocket Head Superseded by part number: 504096409 |
| 4. | 4896404 | [1] | PLUNGER | TORPlug Pressure Reg. |
| 5. | 4895045 | [1] | SPRING | TOR |
| 6. | 4899035 | [1] | O-RING,2.62mm Thk x 18.39mm ID | TOR |
| 7. | J936365 | [1] | PRESSURE RELIEF VALVE | CASPressure Relief Superseded by part number: 4896410 |
| 8. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TOR Superseded by part number: J936365 |
| 9. | 2853604 | [1] | OIL COOLER | TORCore |
| 10. | 2830559 | [1] | GASKET,0.5mm Thk | TOROil Cooler Core |
| 11. | 4896409 | [1] | GASKET,1.55mm Thk | TOR |
