纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-14) - OIL PUMP, PAN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
840 次

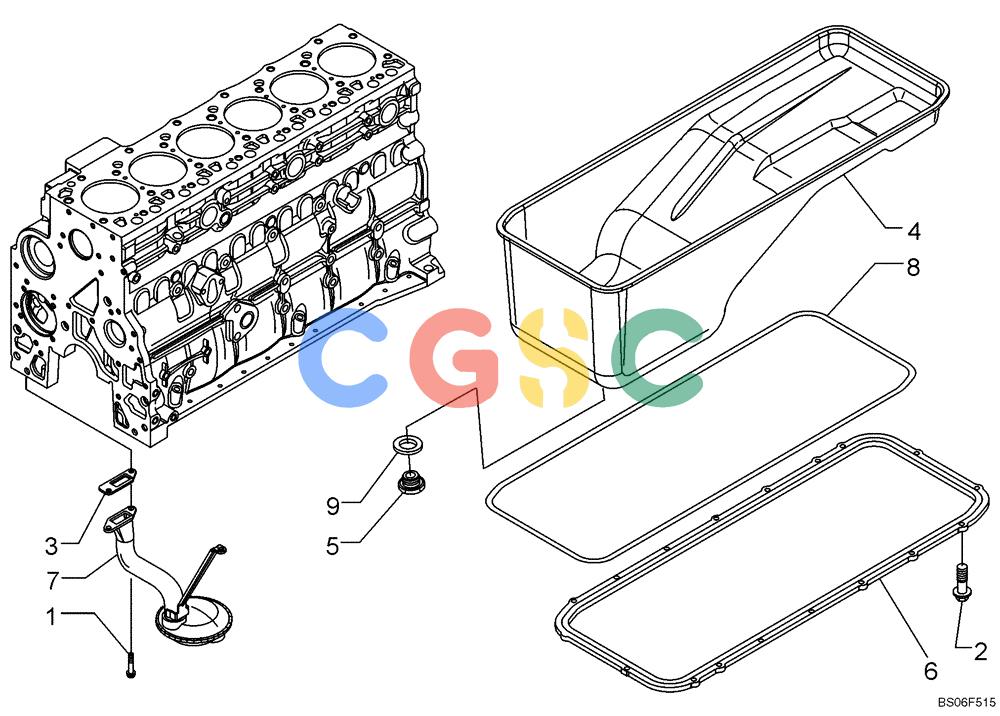

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899020 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORAlternate Part to 16673635 Superseded by part number: 16673635 |
| 2. | 4899091 | [18] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOROil Suction |
| 4. | 2852308 | [1] | ENGINE OIL PAN | TOR |
| 5. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 6. | 4897858 | [1] | SPACER | TORAdapter |
| 7. | 2852310 | [1] | FILTER STRAINER | TOR Superseded by part number: 504388529 |
| 8. | 4897861 | [1] | OIL PAN GASKET SET,17.3mm Thk | TOR |
| 9. | 2852978 | [1] | O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro | TORReplaces 2853728 Superseded by part number: 14457780 |
