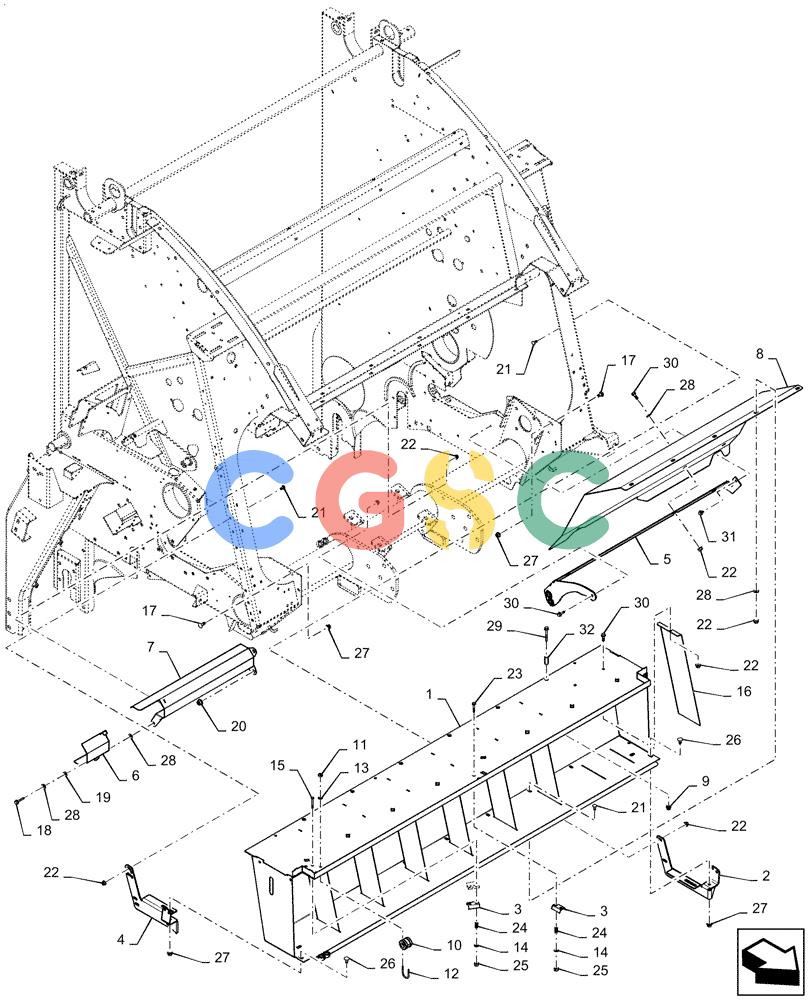

| 1. |
47916689
|
[1] |
TWINE BOX
|
NH
Twine
|
| 2. |
47897709
|
[1] |
SUPPORT
|
PLO
LH
|
| 3. |
9820171
|
[3] |
BRACKET
|
NH
|
| 4. |
47897702
|
[1] |
SUPPORT
|
NH
RH
|
| 5. |
47894638
|
[1] |
SUPPORT
|
NH
|
| 6. |
47493104
|
[1] |
SHIELD
|
PLO
|
| 7. |
47505349
|
[1] |
SHIELD
|
NH
|
| 8. |
47917925
|
[1] |
SHIELD
|
NH
|
| 9. |
86610200
|
[6] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 10. |
84298727
|
[2] |
GUIDE
|
PA
Porcelain
|
| 11. |
87304
|
[4] |
NUT,#10-24
|
BEL
|
| 12. |
28114
|
[2] |
U-BOLT
|
NH
|
| 13. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 14. |
80701
|
[4] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 15. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 16. |
47894001
|
[6] |
SUPPORT
|
NH
Rib
|
| 17. |
86633356
|
[2] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 18. |
86511842
|
[1] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
|
| 19. |
86624184
|
[2] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 20. |
9804279
|
[2] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 21. |
86507486
|
[9] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 22. |
9804277
|
[16] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 23. |
86511840
|
[2] |
BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8
|
NH
|
| 24. |
29840
|
[4] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 25. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 26. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 27. |
9804278
|
[6] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 28. |
80664
|
[10] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 29. |
86511843
|
[6] |
BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8
|
WIN
|
| 30. |
9671714
|
[6] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 31. |
381014
|
[1] |
SCREW,Flng, M8 x 16mm
|
NH
|
| 32. |
453155
|
[6] |
RING
|
ZED
|
