纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-16) - WATER PUMP - CONTROL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
312 次

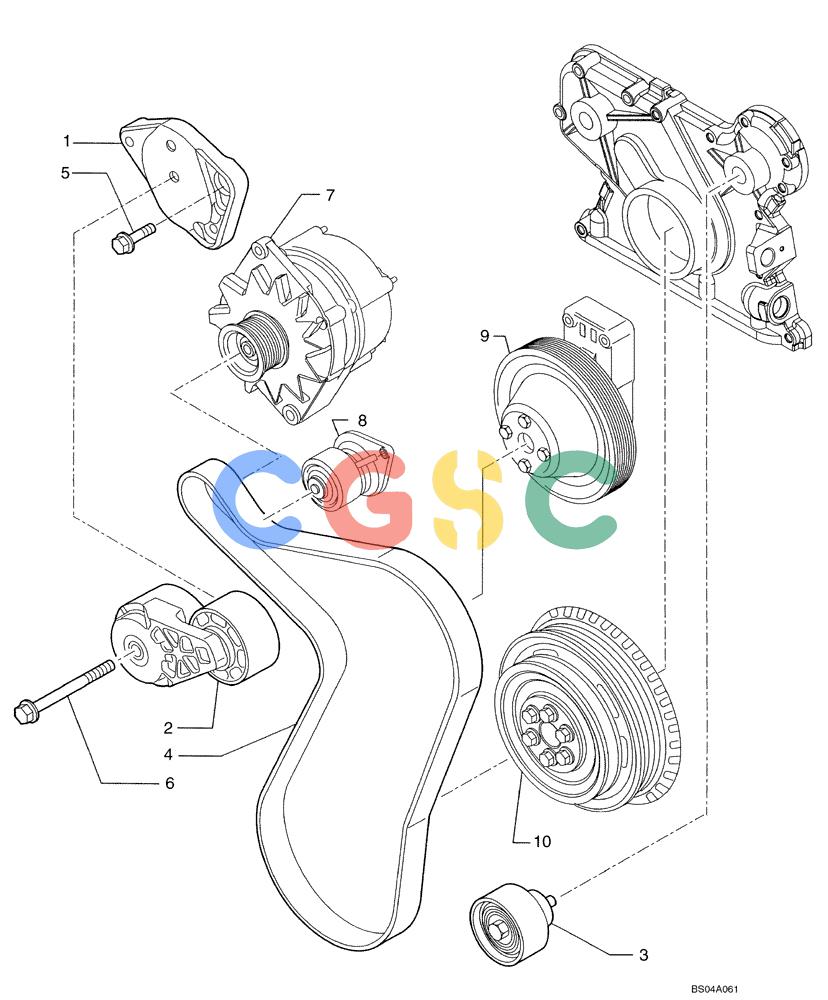

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853207 | [1] | BRACKET | TORBRACKET, Support Belt Tensioner Superseded by part number: 504075011 |
| 2. | 2855554 | [1] | BELT TENSIONER | TORTENSIONER BELT, Water Pump |
| 3. | 2852245 | [1] | PULLEY,65mm OD | TOR |
| 5. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 6. | 4899109 | [1] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| . . | 2855452 | [1] | V-BELT,1725.00 mm L, 8 Ribs | TORUsed with 2854835 Water Pump; Not Illustrated Superseded by part number: 87397416 |
