纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-17) - THERMOSTAT - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
919 次

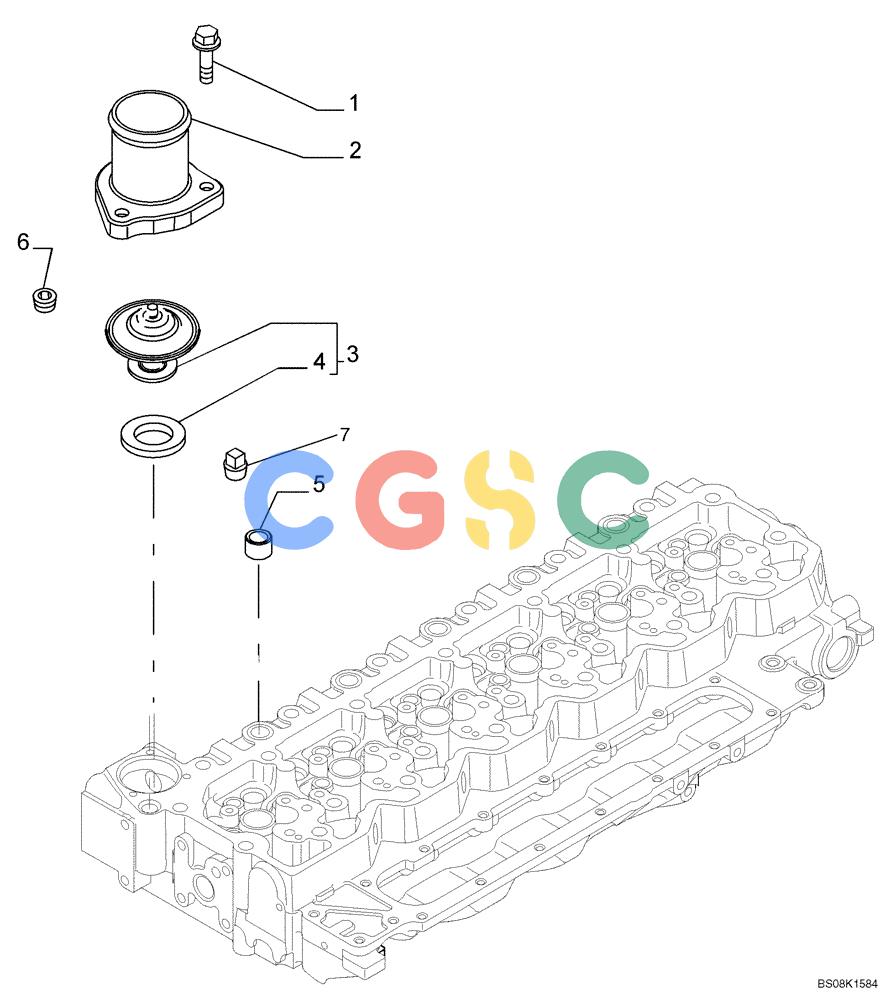

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4895131 | [1] | HOUSING | TORWater Outlet Superseded by part number: |
| 3. | 2852471 | [1] | THERMOSTAT | TORASSY, Incl. Ref 4 Superseded by part number: 84322388 |
| 4. | 2852473 | [1] | GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk | TOR |
| 5. | 4892762 | [1] | PLUG | TORHex Countersunk, 1/4 thrd x 15/32 lg; If Used |
| 5. | 4895118 | [1] | FITTING | LECOrifice Fitting, If Used, Not Illustrated |
| 6. | 4895078 | [4] | PIPE PLUG,1/2"-14 | TOR |
| 7. | 80775 | [1] | DRAIN PLUG,1/4" - 18 NPT | NH |
