纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-24) - GEAR COVER PLATE - POWER TAKE - OFF New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
839 次

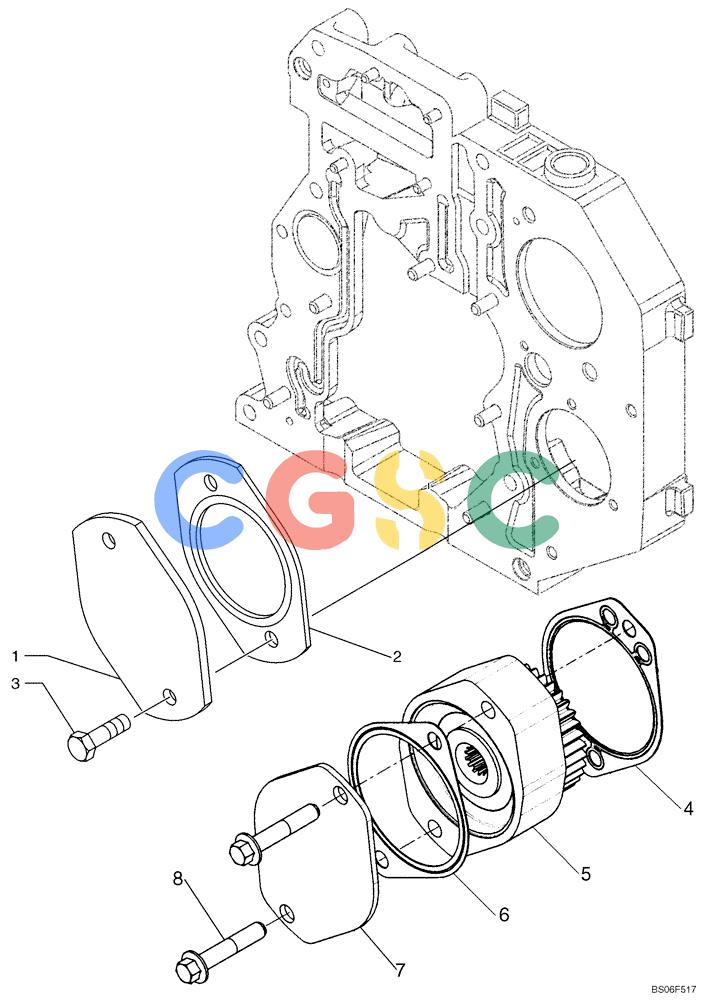

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852175 | [1] | COVER | TOR Superseded by part number: 504049033 |
| 2. | 4896897 | [1] | GASKET,1.35mm Thk | TOR |
| 3. | 16677734 | [2] | BOLT,Hex Flg, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 5. | 2854884 | [1] | GEAR | TORDrive Pump, PTO; Component Parts Not Serviced Separately |
| 6. | 4895329 | [1] | GASKET | LEC |
| 8. | 4895290 | [2] | SCREW,Hex Flg, M12 x 1.75 x 65 | LEC |
