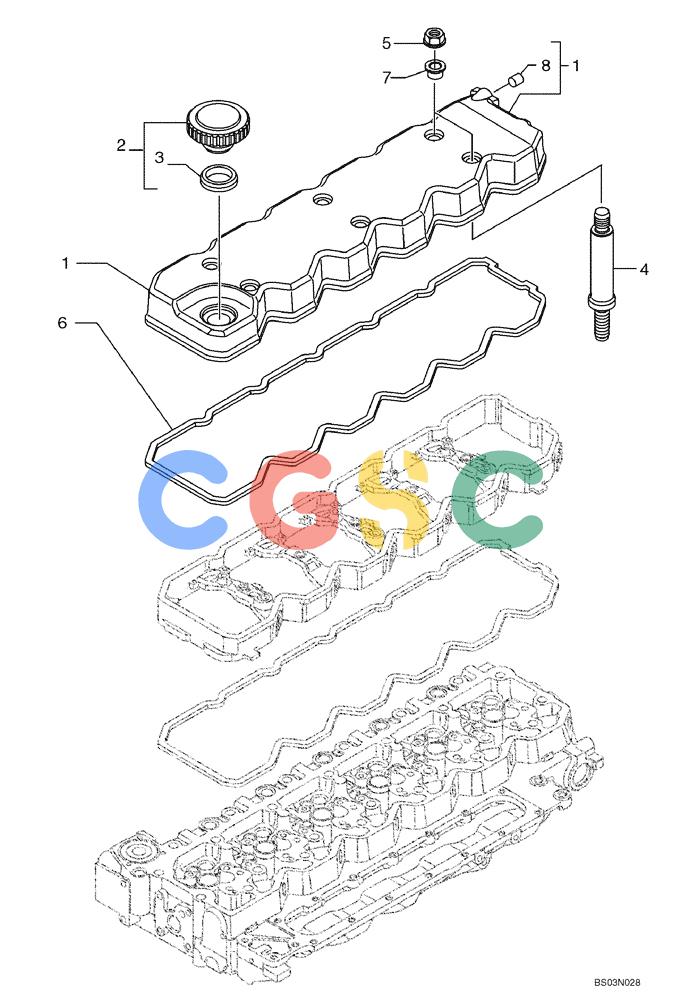

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-25) - CYLINDER HEAD - COVERS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895910 | [1] | VALVE COVER | TORASSY, Incl. Ref 8 |
| 2. | 2852773 | [1] | CAP | TORASSY, Incl. Ref 3 Superseded by part number: 504262827 |
| 3. | 2852774 | [1] | OIL PAN GASKET SET,38mm ID x 51mm OD x 8mm Thk | SMGasket; Cap Superseded by part number: 98412146 |
| 4. | 4896991 | [6] | BOLT | TOR Superseded by part number: |
| 4. | 2854375 | [6] | STUD | TORIN ALTERNATIVE Superseded by part number: |
| 5. | 4893936 | [6] | FLANGE NUT | TORM8X1.25 |
| 6. | 2853784 | [1] | GASKET,10.5mm Thk | TOR Superseded by part number: 504070038 |
| 7. | 4899239 | [6] | ISOLATOR,29mm OD x 13mm L | TORIsolator Superseded by part number: 504075125, 504070041 |
| 8. | 4898283 | [1] | PLUG | TORExpansion |
