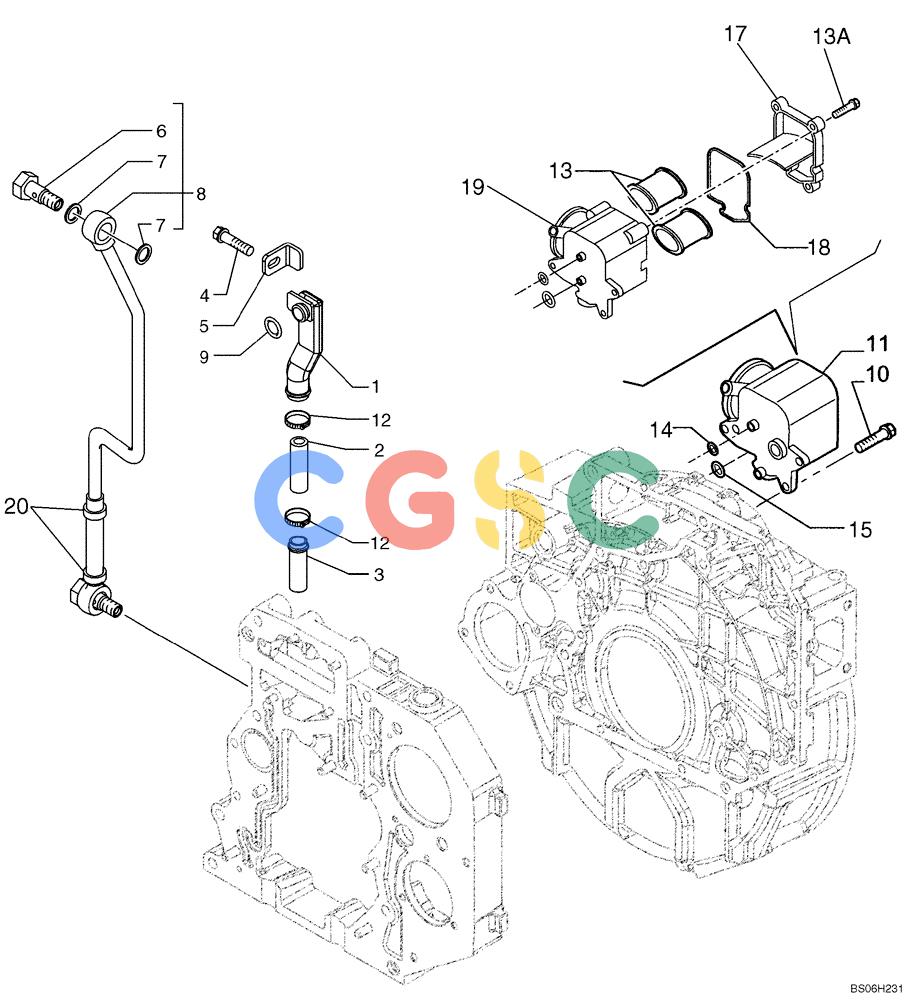

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-36) - BREATHER - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897534 | [1] | TUBE | TOR |
| 2. | 4897546 | [1] | RUBBER SLEEVE | TORIN ALTERNATIVE Superseded by part number: 2854521 |
| 2. | 2854521 | [1] | HOSE | TORIn Alternative Superseded by part number: 4897546 |
| 3. | 4897547 | [1] | TUBE | TOR |
| 4. | 4897537 | [1] | SCREW | TORFlange, M6X1X10 |
| 5. | 4897536 | [1] | BRACKET | TOR |
| 6. | 2852772 | [2] | BANJO BOLT | TORM12X1.5X30 Superseded by part number: |
| 7. | 4899926 | [4] | SEALING WASHER | TORSeal, 11.8 ID |
| 8. | 4899219 | [1] | TUBE | TORASSY; Incl. Ref 6, 7, 20 |
| 9. | 14457581 | [1] | O-RING,0.799" ID x 0.103" Width | TTFReplaces 14457581 |
| 10. | 4899092 | [3] | SCREW,Hex Flg, M6 x 1 x 25 | TOR |
| 11. | 4892871 | [1] | BREATHER | TORASSY; Incl. Ref 13 - 19; Remainder of Components Not Serviced Separately |
| 12. | 4893234 | [2] | HOSE CLAMP | TORIN ALTERNATIVE |
| 12. | 2831016 | [2] | HOSE CLAMP | SMIN ALTERNATIVE Superseded by part number: J937613 |
| 13. | 2830592 | [2] | AIR FILTER | TOR Superseded by part number: 2992447 |
| 13A. | 2830301 | [6] | SELF-TAP SCREW | TORSelf Tapping |
| 14. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TOR |
| 15. | 2830304 | [1] | O-RING | TOR |
| 17. | NSS | [1] | NOT SERVICED SEPARATELY | CONProtective Cover; Order 4892871 Ref 11 |
| 18. | 2830303 | [1] | GASKET | TORBreather Gasket |
| 20. | 4899242 | [2] | CLAMP | SM Superseded by part number: LB15V00011S301 |
