纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-37) - COOLING SYSTEM - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
426 次

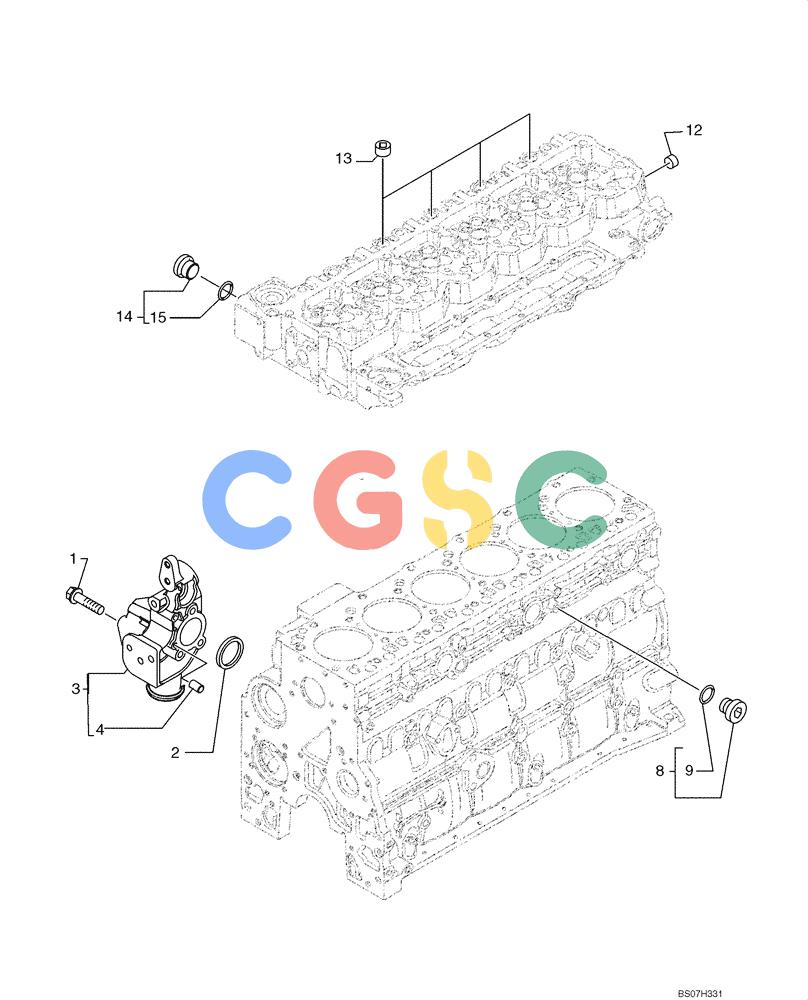

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852286 | [3] | BOLT,Flng, M10 x 1.5 x 130mm | TORM10X130 Superseded by part number: 16599125 |
| 2. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | 2855443 | [1] | FITTING | TORSupport; Water Inlet Connector; Incl. Ref 4 Superseded by part number: 504074183 |
| 4. | 4895576 | [2] | DOWEL | TOR |
| 8. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORIncl. 9 |
| 9. | NSS | [1] | NOT SERVICED SEPARATELY | CONO-Ring Seal; 13.3 ID x 2.2 |
| 12. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TORAlternate part to 2854866 Superseded by part number: 2854866 |
| 12. | 2854866 | [1] | HEX SOCKET PLUG,3/4"-14 NPTF | TORAlternate part to 4893036 Superseded by part number: 4893036 |
| 13. | 4895078 | [4] | PIPE PLUG,1/2"-14 | TOR |
| 15. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TOR Superseded by part number: 17281681 |
