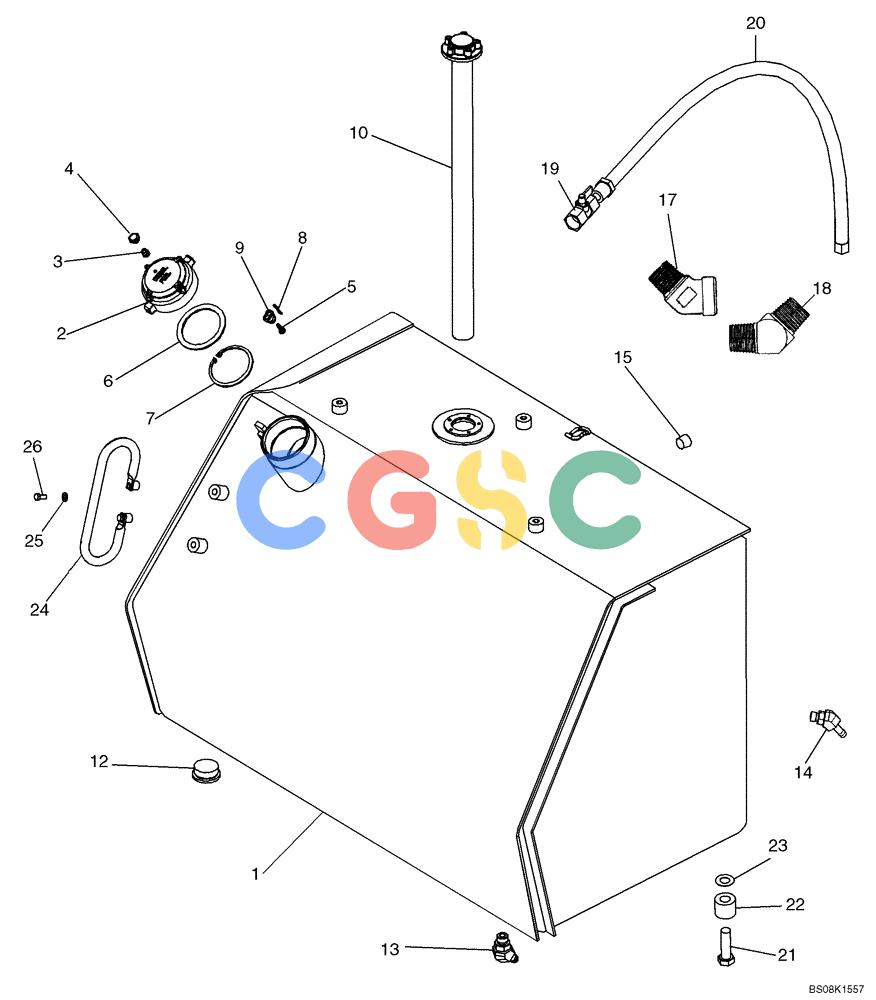

| 1. | 87695179 | [1] | FUEL TANK | BURFuel Tank, Complete; Incl. Ref 1 - 15; See Figure 09-09 For Tank Mounting |
| 2. | R57981 | [1] | FILLER CAP | CASIncl. Ref 3 - 5; Service Replacement Superseded by part number: 84267002 |
| 3. | A50096 | [1] | VALVE | CASRelief; Use With Loctite 592 Superseded by part number: 572820 |
| 4. | R57888 | [1] | FILTER | CASUse With Loctite 592 |
| 5. | 301-14712 | [1] | SCREW,Drive, #12 x 3/4" | CASUse with Loctite No. 242 |
| 6. | R49868 | [1] | GASKET,72mm ID x 90mm OD x 3mm Thk | CASRubber |
| 7. | 103-21300 | [1] | SNAP RING,3.00", Int, #300 | CAS |
| 8. | R47786 | [1] | CHAIN (CE) | CAS241 mm (9-1/2 in) |
| 9. | R48634 | [1] | FASTENER | CASHook; Swivel |
| 10. | 87583890 | [1] | SENDER UNIT | BURFuel Level Sender; Incl. (5) 10-32 UNF Screws, Wiring Connector; Component Parts Not Serviced Seprarately |
| 12. | 221-37 | [1] | PLUG | CASDrain, 1-1/4 PT; Use With Loctite 592 Superseded by part number: 221-847 |
| 13. | 217-143 | [1] | ELBOW,45º, 1/2" Hose x 3/8" NPTF Beaded | CAS |
| 14. | 217-132 | [1] | 90 ELBOW,90º, 3/8" Hose x 1/4" NPTF Beaded | CASUse With 345-147 Thread Sealant |
| 15. | 217-465 | [1] | DRAIN PLUG,Hex Soc, 1/2"-14, NPTF | CASUse with Loctite 592 |
| 17. | 217-1086 | [1] | 45 ELBOW,45º, 1/2"-14 Female x 1/2"-14 Male | CASElbow; If Used |
| 18. | 217-1209 | [1] | ELBOW | BUR45 degrees, 1/2"-14 Male; If Used |
| 19. | 86984713 | [1] | SHUT-OFF VALVE | BUROne-Way; Use With Loctite 592 |
| 20. | 87413240 | [1] | HOSE ASSY. | CASEnvironmental; Drain |
| 21. | 814-16055 | [8] | BOLT,Hex, M16 x 2 x 55mm, Cl 8.8 | CAS Superseded by part number: 385923 |
| 22. | 87440363 | [8] | SPACER | CASSpacer |
| 23. | D44330 | [8] | SHIM,.031" Thk | CASWasher |
| 24. | 87728875 | [1] | HANDLE | BURGRAB HANDLE |
| 25. | 896-11012 | [2] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 26. | 614-12025 | [2] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
