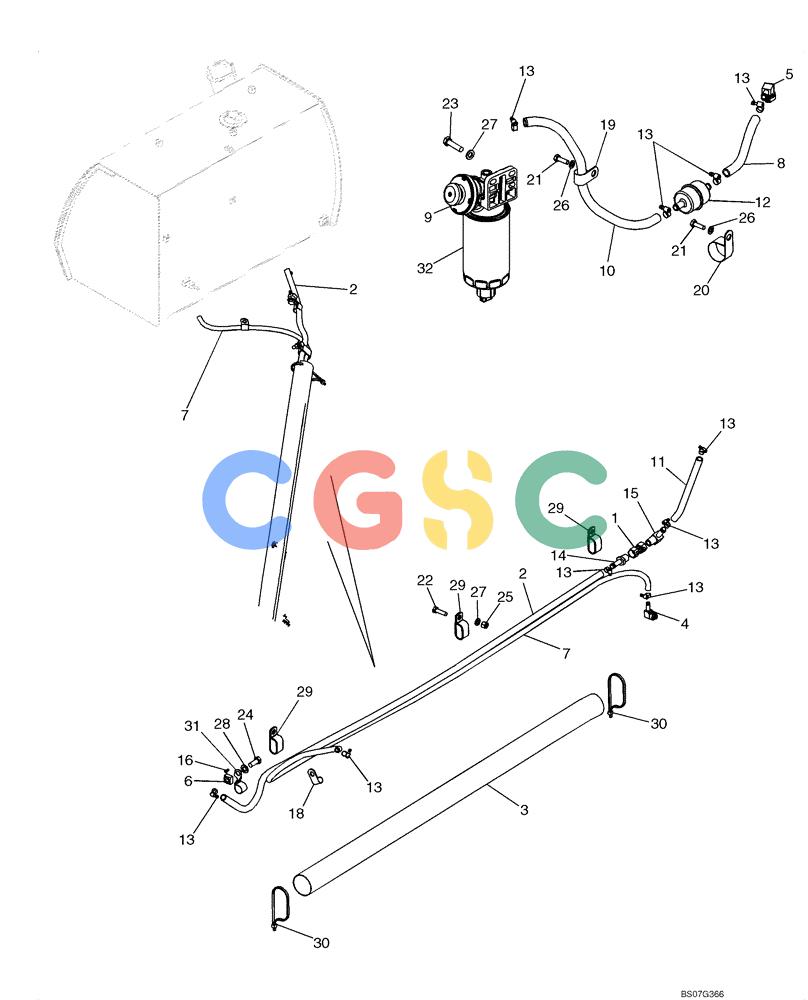

| 1. | 86984713 | [1] | SHUT-OFF VALVE | BURBrass; One-Way; 1/2 FNPT x 1/2 FNPT |
| 2. | 87323440 | [1] | FUEL HOSE | BURHOSE, 1900 mm (74-13/16 in); Supply; Cut From S118466X; Routes Through Upper Part Of Hose Sleeve |
| 3. | 87340827 | [1] | SLEEVE | BUR1350 mm (53-5/32 in) Long |
| 4. | 87400460 | [1] | 90 ELBOW | FARIncl. 87445404 O-Ring |
| . . | 87445404 | [1] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | FAR Superseded by part number: 4894095 |
| 5. | 87442270 | [1] | FITTING | BUR90 deg Elbow; Includes 87445405 O-Ring |
| . . | 87445405 | [1] | O-RING | FAR |
| 6. | 87447306 | [1] | SQUARE NUT | CASCage, M12 |
| 7. | 87525901 | [1] | FUEL HOSE,9.53 mm ID x 2135.00 mm, SAE 30R2 or SAE 30R7 | BURReturn; Cut From S118400X |
| 8. | 87527573 | [1] | FUEL HOSE,12.70 mm ID x 135.00 mm, SAE 30R2 or SAE 30R7 | BURSupply; Cut From S118466X |
| 9. | 87564387 | [1] | FILTER ASSY | BURFILTER ASSY., WATER SEPARATOR Without Heater; Incl. Ref 32 |
| 10. | 87578254 | [1] | FUEL HOSE,12.70 mm ID x 415.00 mm | BURSeparator to In-Line Filter; Cut from S118466X |
| 11. | 87578255 | [1] | FUEL HOSE,12.70 mm ID x 465.00 mm | BURSupply; Cut from S118466X |
| 12. | 87400496 | [1] | FILTER | RACIn-Line Fuel Filter Superseded by part number: 84278141 |
| 13. | 214-1708 | [10] | HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm | CAS Superseded by part number: 86625040 |
| 14. | 217-168 | [1] | FITTING,1/2" Hose X 1/4" NPTF Beaded | BRRUse With 345-147 Thread Sealant |
| 15. | 217-335 | [1] | FITTING,90º, 1/2" Hose x 1/2" NPTF Beaded | CAS |
| 16. | 336371A1 | [1] | PIN | CASNut Retainer |
| 17. | 345-147 | [1] | Sealant | |
| 18. | 515-25159 | [1] | CLAMP,5/8", Insul, 1/2" Bolt | CASUses Existing Hydraulic Brake Hardware Superseded by part number: 86639005 |
| 19. | 515-25238 | [1] | CLAMP,15/16", Insul, 1/2" Bolt | CAS Superseded by part number: 86625037 |
| 20. | 515-25444 | [1] | CLAMP,1 3/4", Insul, 7/16" Bolt | CAS Superseded by part number: 86639007 |
| 21. | 614-8020 | [2] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 22. | 614-10035 | [3] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd | CASThread to Head Superseded by part number: 9706704 |
| 23. | 614-10040 | [2] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 24. | 627-12030 | [1] | BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd | IH Superseded by part number: 43260 |
| 25. | 832-10410 | [3] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 26. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 27. | 895-11010 | [5] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 28. | 895-11012 | [1] | WASHER,13.5mm ID x 24mm OD x 2.5mm Thk | CAS |
| 29. | H434289 | [3] | MOUNTING CLIP | CASDouble Clamp, 22.2 dia |
| 30. | L18331 | [2] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 31. | R45966 | [1] | CLAMP,90° Twist, 0.94mm Dia, Coated | CAS90 Degree Twist |
| 32. | 87803444 | [1] | FUEL FILTER | BASCartridge, Service Replacement Superseded by part number: 84559022 |
