纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-05) - FUEL INJECTION TUBES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
429 次

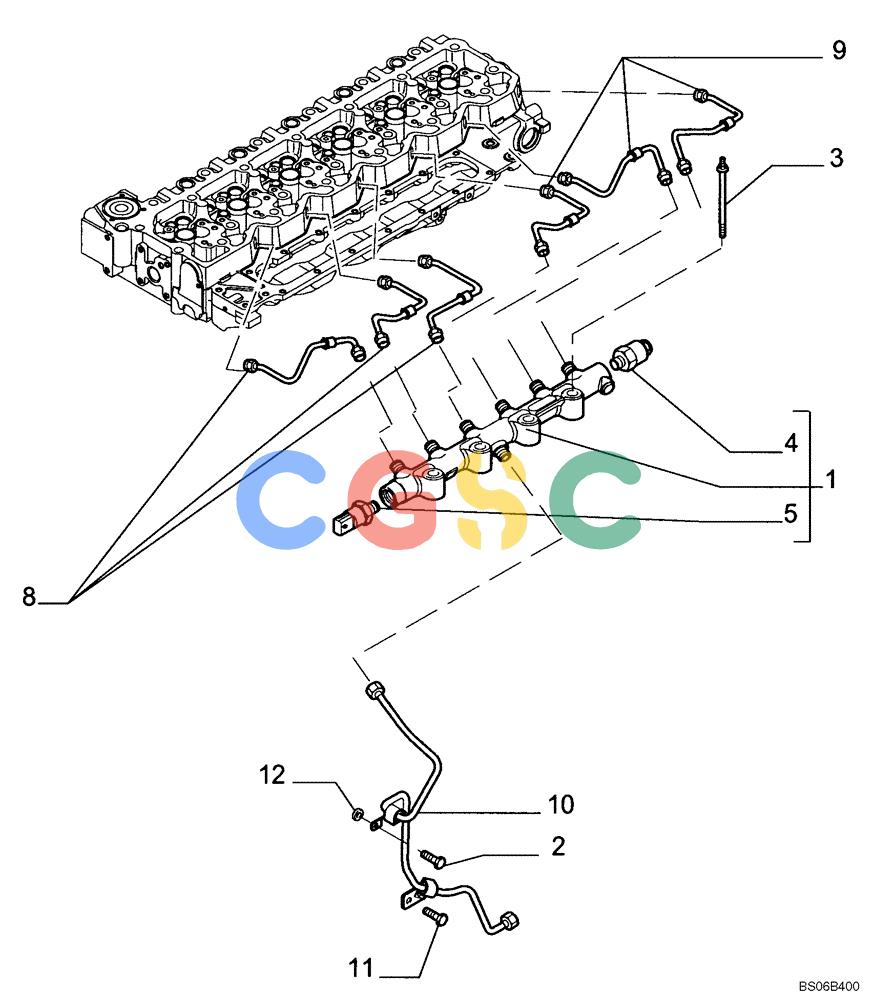

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854540 | [1] | MANIFOLD | TORASSY; Incl. Ref 4, 5 |
| 2. | 18138424 | [1] | SCREW,Hex Flg, M8 x 1.25 x 20mm | LEC |
| 3. | 2853537 | [4] | BOLT | TORSpecial Superseded by part number: 504053874 |
| 4. | 2854543 | [1] | PRESSURE RELIEF VALVE | TORPressure |
| 5. | 2854542 | [1] | SENSOR | TORPressure Superseded by part number: |
| 8. | 2854549 | [3] | INJECTION PIPE | TORFuel Supply Superseded by part number: |
| 9. | 2854544 | [3] | INJECTION PIPE | TORFuel Supply Superseded by part number: 2857017 |
| 10. | 2854552 | [1] | INJECTION PIPE | TORFuel Supply Superseded by part number: |
| 11. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TOR |
| 12. | 13605711 | [1] | SPACER | JES8.5 ID x 18 OD x 5 lg; Replaces 2852434 |
