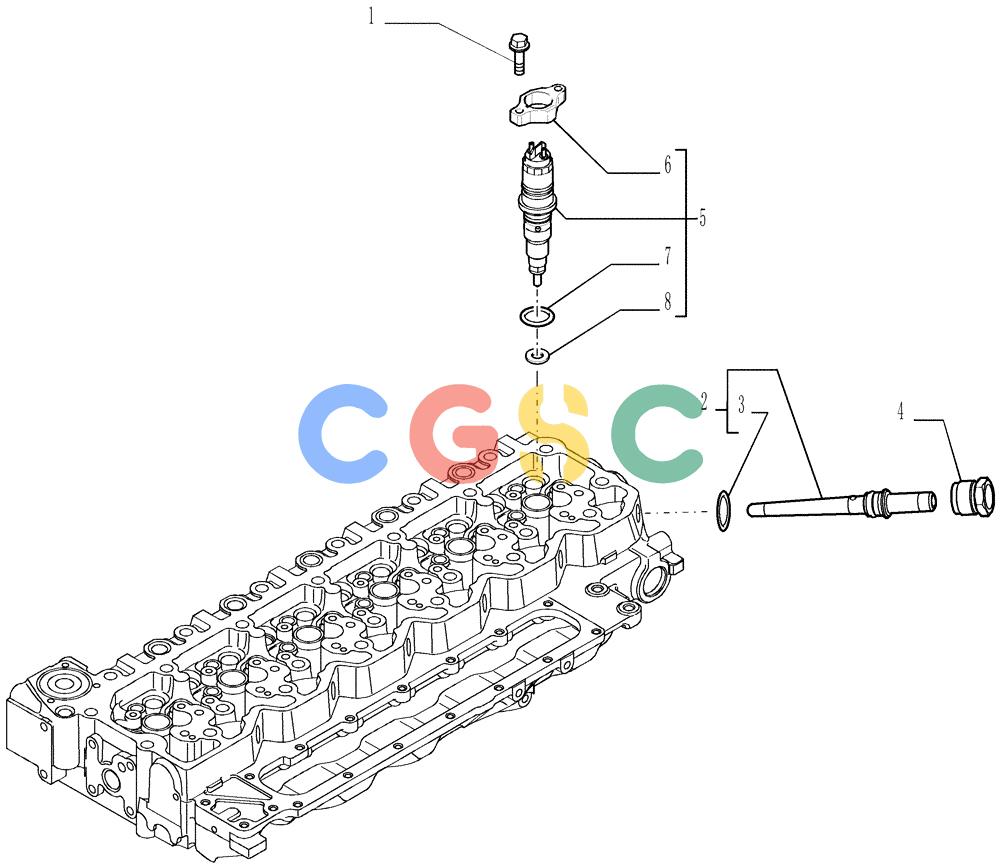

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-04) - FUEL INJECTION SYSTEM - INJECTOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895483 | [12] | BOLT,Flng, M6 x 1 x 35mm | TOR |
| 2. | 2854606 | [6] | FUEL TUBE,Connector Assembly | SMIncl. Ref 3 |
| 3. | 4890929 | [1] | O-RING,3mm Thk x 11mm ID | TOR |
| 4. | 4893739 | [6] | TUBE NUT | TOR |
| 5. | 2854608 | [6] | FUEL SYSTEM INJECTOR | TORASSY; Incl. Ref 6, 7, 8 |
| 5. | 2854608R | [6] | REMAN-FUEL INJECTOR | RACD150B Hydro Tier 3 (10/07) |
| 5. | 2854608C | [6] | CORE-FUEL INJECTOR | RACReturn Number |
| 6. | 2854609 | [1] | BRACKET | TOR Superseded by part number: 504091492 |
| 7. | 4890926 | [1] | O-RING,3mm Thk x 20.9mm ID, 60 Duro | TOR20.9 ID x 3.0 dia |
| 8. | 4899689 | [1] | SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk | TORSeal Ring |
