纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-07) - HARNESS, ENGINE ELECTRONIC CONTROL MODULE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
537 次

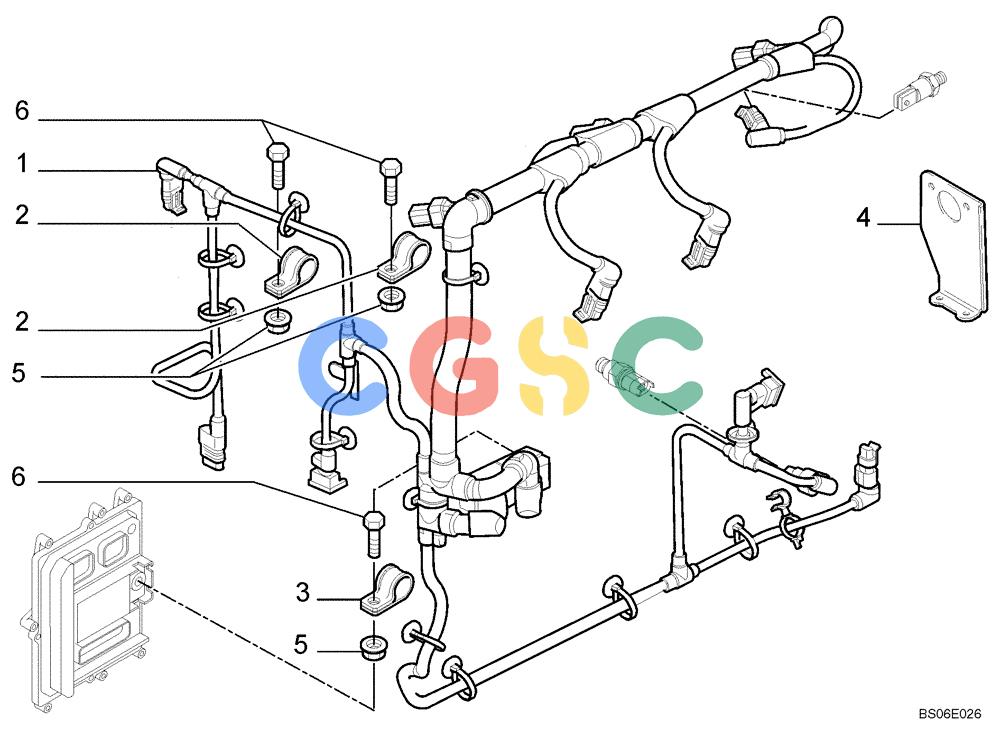

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854598 | [1] | WIRE HARNESS | TORControl Superseded by part number: |
| 2. | 2852500 | [2] | CLAMP | TOR Superseded by part number: |
| 3. | 4899815 | [1] | CLAMP | TOR Superseded by part number: 17315390 |
| 4. | 2854599 | [1] | BRACKET | TOR Superseded by part number: 504076667 |
| 5. | 2852484 | [3] | FLANGE NUT | TOR Superseded by part number: 17044625 |
| 6. | 16673635 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORReplaces 2854600 Superseded by part number: 16978124 |
