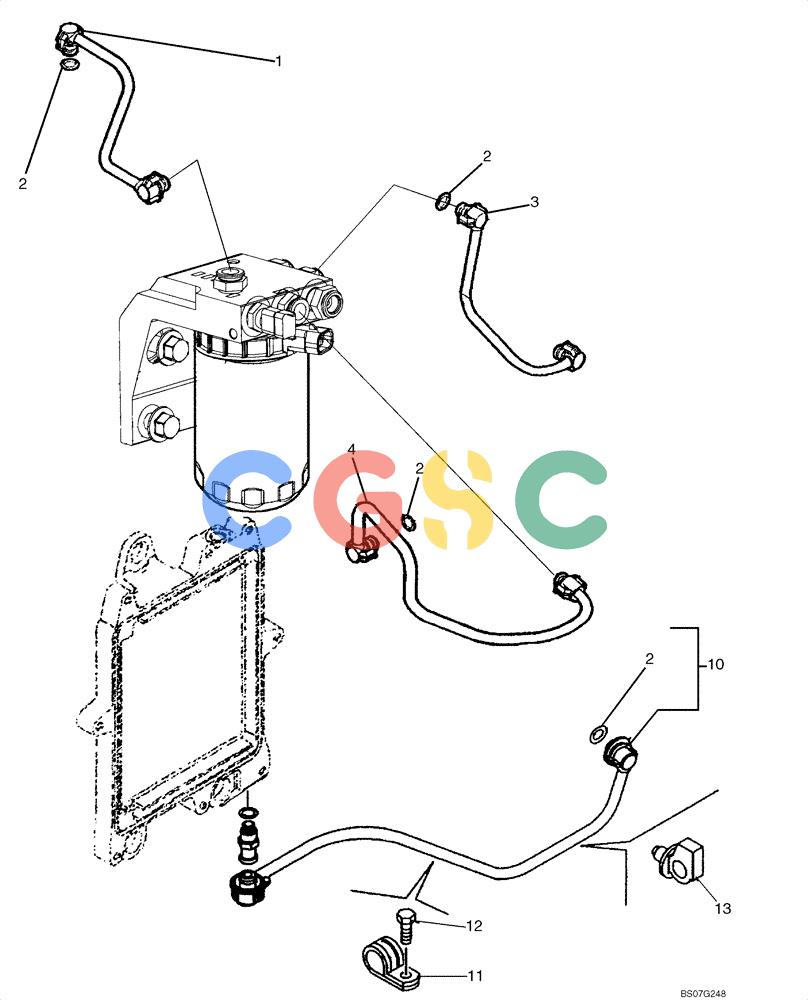

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-08) - FUEL INJECTION SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
994 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855427 | [1] | INJECTION PIPE | TOR |
| 2. | 4894095 | [4] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 3. | 2855430 | [1] | INJECTION PIPE | TOR |
| 4. | 2855428 | [1] | INJECTION PIPE | TOR |
| 10. | 2855333 | [1] | TUBE,419, 66 mm Length | TORFuel Supply Tube Superseded by part number: 504385157 |
| 11. | 4895462 | [1] | CLAMP | TOR |
| 12. | 4899103 | [1] | SCREW,Hex Flg, M8 x 1.25 x 12 | TOR |
| 13. | 4896996 | [1] | CLAMP | TOR |
