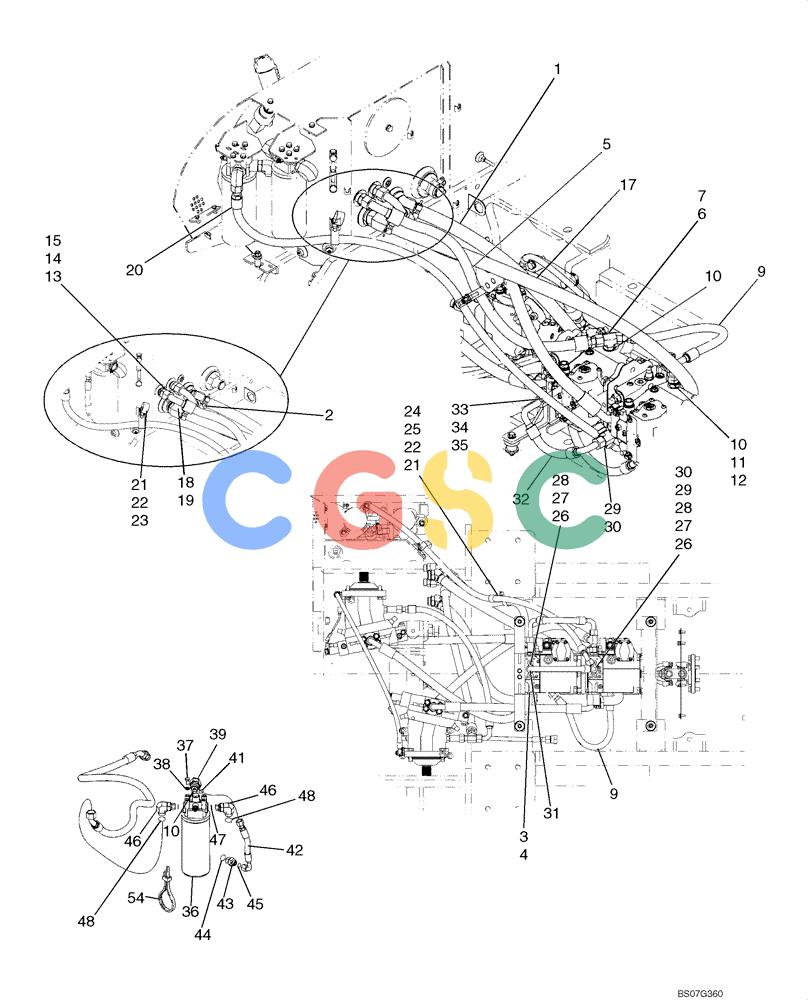

| 1. | 87667677 | [1] | HOSE ASSY. | BURHOSE ASSY., 1090 mm (42-15/16 in); Suction Rear Charge Pump |
| 2. | 87364086 | [4] | CLAMP,1.62" - 1.88" | BURT-BOLT CLAMP |
| 3. | 217-355 | [3] | FITTING,90º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded | CAS |
| 4. | 237-6020 | [1] | O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro | CAS Superseded by part number: 87779389, 570186 |
| 5. | 87580830 | [1] | HOSE, BULK | BURHOSE, METERS HOSE ASSY., 1000 mm (39 - 3/8 in);, Serial Range: Filter-Pump |
| 6. | 201-419 | [1] | TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br | CAS |
| 7. | 238-6018 | [2] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | CAS Superseded by part number: 9991976 |
| 9. | 87667684 | [1] | HOSE ASSY. | BURHOSE ASSY., 600 mm (23 - 5/8 in); Hystat. Pump Case Drain |
| 10. | 201-104 | [4] | HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB | CAS Superseded by part number: 87393627 |
| 11. | 237-6012 | [4] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CAS Superseded by part number: 72186120, 167266, 79051113 |
| 13. | 201-105 | [2] | HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/16"-12 ORB | IH Superseded by part number: 9824055 |
| 14. | 237-6016 | [2] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CAS Superseded by part number: 72186238, 167268 |
| 15. | 238-6021 | [2] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | CAS Superseded by part number: 87473574 |
| 17. | 87667676 | [1] | HOSE ASSY. | BURHOSE ASSY., 1420 mm (55 - 15/16 in); Suction Front Charge Pump |
| 18. | 217-317 | [2] | FITTING,45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded | CAS Superseded by part number: 87599598 |
| 20. | 87579284 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1940.00 mm, SAE 100R17 | BURRear Charge Pump Out to Filter In |
| 21. | 242999A1 | [2] | CLAMP | CAS |
| 22. | 515-25444 | [2] | CLAMP,1 3/4", Insul, 7/16" Bolt | CAS Superseded by part number: 86639007 |
| 23. | 811-12050 | [1] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 334682 |
| 24. | 412126 | [2] | NUT,M12 x 1.75 | ZED |
| 25. | 86625256 | [1] | WASHER,13.3mm ID x 28.5mm OD x 4mm Thk | FAR |
| 26. | 201-107 | [2] | HYD CONNECTOR,1 3/16"-12 ORFS x 7/8"-14 ORB | CAS Superseded by part number: 9840534 |
| 27. | 237-6010 | [2] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CAS Superseded by part number: 72186125, 167269 |
| 29. | 201-417 | [2] | TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS | CAS |
| 31. | 87580829 | [1] | HOSE, BULK | BURHOSE, METERS HOSE ASSY., 565 mm (22 - 1/4 in) (Was 470 mm (18 - 9/16 in); Charge Pump Out to Charge Pump Out |
| 32. | 429711A1 | [1] | HOSE ASSY. | BUR335 mm (13 - 1/4 in); Hystat. Pump Case Drain |
| 33. | 201-176 | [2] | HYD CONNECTOR,1 3/16"-12 x 1 1/16"-12, ORFS Lg | BRR Superseded by part number: 87393627 |
| 36. | 418237A1 | [1] | FILTER ASSY | BURHydrostatic, See Figure 06-08 |
| 37. | 614-10020 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43138 |
| 38. | 895-11010 | [4] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 39. | 201-327 | [1] | ELBOW,90º, 13/16"-16 x 1 1/16"-12, Adj, ORFS | CAS Superseded by part number: 87591918 |
| 40. | 238-6014 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CAS Superseded by part number: 9992298 |
| 42. | 435014A1 | [1] | HOSE ASSY. | BUR252 mm (9 - 15/16 in); Filter to Tank; Charge Filter Bypass |
| 43. | 201-128 | [1] | HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB | CAS |
| 46. | 201-307 | [2] | ELBOW,90º, 1 3/16"-12 x 1 1/16"-12 Adj, ORFS | CAS Superseded by part number: 9846848 |
