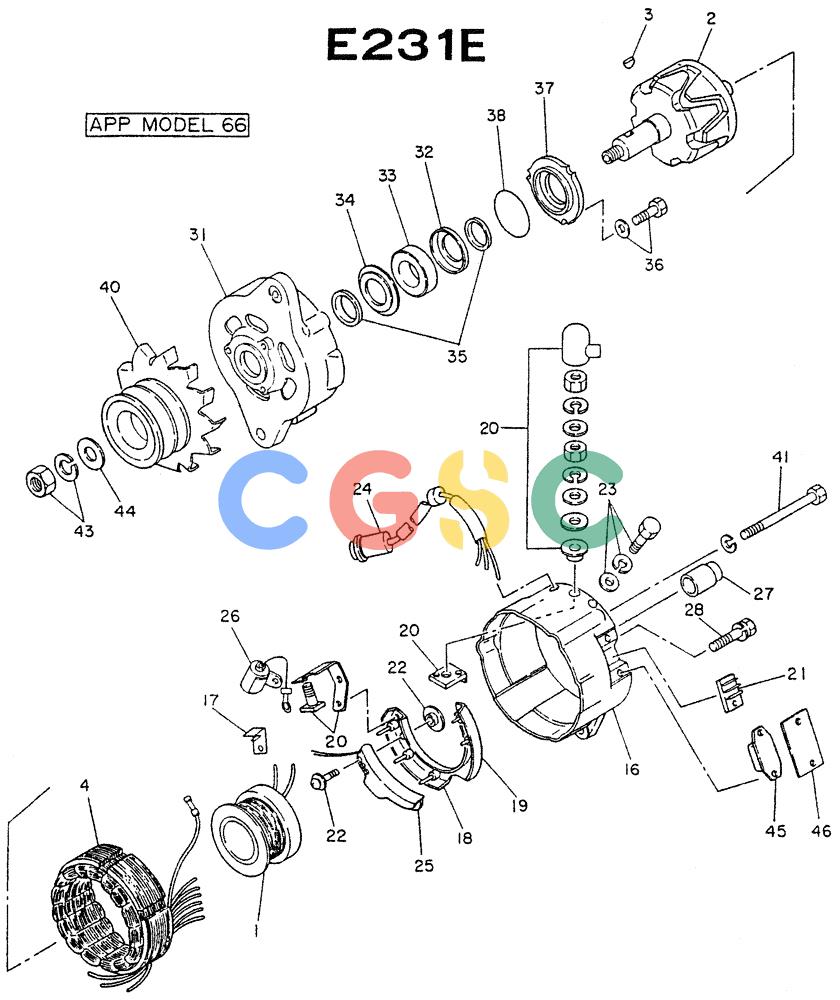

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (08-005) - GENERATOR (INNER PARTS) "SAWAFUJI MAKE 40A" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-46. | VG2310096273 | [1] | GENERATOR | KOBGENERATOR |
| 1. | VG2311199001 | [1] | COIL | KOBCOIL ASSY |
| 2. | VG2310899202 | [1] | ROTOR | KOBROTOR ASSY |
| 3. | VG0092651900 | [1] | KEY | KOBKEY-WOODRUFF |
| 4. | VG2310299204 | [1] | STATOR | KOBCOIL-STARTER |
| 16-26. | VG2312799312 | [1] | COVER | KOBCOVER ASSY |
| 16. | VG2312899204 | [1] | COVER-REAR | |
| 17. | VG2313599015 | [1] | HOLDER, INJECTOR NOZ | KOBHOLDER |
| 18. | VG2310999104 | [1] | HEAT CONTACTOR | KOBHEAT SINK ASSY. |
| 19. | VG2310999105 | [1] | HEAT CONTACTOR | KOBHEAT SINK ASSY |
| 20. | VG2315099013 | [1] | TERMINAL | KOBTERMINAL ASSY |
| 21. | VG2310399000 | [1] | CONNECTOR ASSY | |
| 22. | VG2315799109 | [2] | SCREW SET ASSY | |
| 23. | VG2314799019 | [1] | BOLT | |
| 24. | VG2316599202 | [1] | WIRE HARNESS | KOBCOUPLER ASSY |
| 25. | VG2313299002 | [1] | CIRCUIT BREAKER | KOBCIRCUIT ASSY |
| 26. | VG2312999002 | [1] | CONDENSER | KOBCONDENSER |
| 27. | VG2312099106 | [1] | BEARING HALF | KOBBEARING-ROLLER |
| 28. | VG2315799110 | [3] | SCREW | |
| 31-38. | VG2311899101 | [1] | COVER | KOBBRACKET ASSY-FR |
| 31. | VG2311999112 | [1] | COVER | KOBBRACKET-FRONT |
| 32. | VG2311799016 | [1] | COVER | |
| 33. | VG2313099007 | [1] | BALL BEARING | KOBBEARING-BALL |
| 34. | VG2311799015 | [1] | COVER | |
| 35. | VG2311699008 | [2] | RING GEAR | KOBFELT |
| 36. | VG2313199102 | [3] | BOLT | |
| 37. | VG2314599010 | [1] | BEARING HALF | KOBCOVER-BEARING |
| 38. | VG2334499013 | [1] | O-RING | KOBO RING |
| 40. | VG2315199314 | [1] | PULLEY | KOBPULLEY ASSY |
| 41. | VG2313199101 | [3] | BOLT | |
| 43. | VG2315290004 | [1] | NUT NUT ASSY-PULLEY | NUT NUT ASSY-PULLEY |
| 44. | VG2320699003 | [1] | WASHER | |
| 45. | VG2350099005 | [1] | REGULATOR | KOBIC REGURATOR |
| 46. | VG2311799014 | [1] | COVER | |
