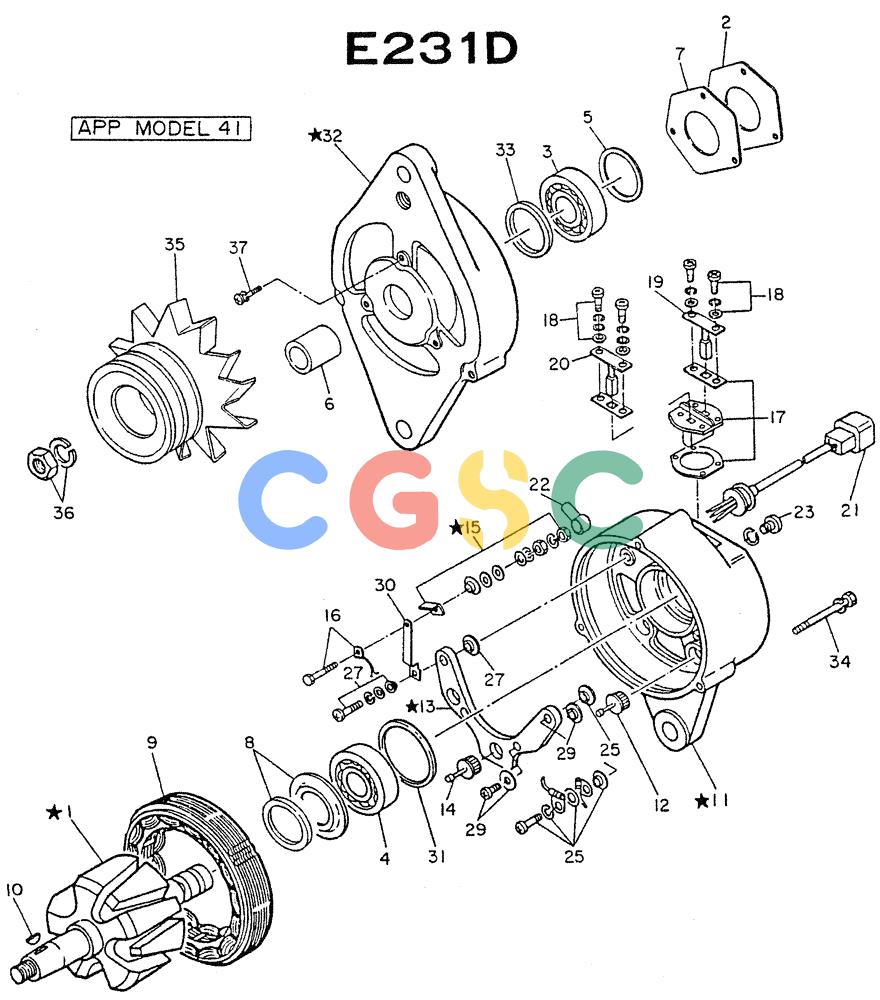

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (08-004) - GENERATOR (INNER PARTS) "HITACHI MAKE 35A" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
137 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-37. | VG2310097002 | [1] | GENERATOR | |
| 1-8. | VG2310899100 | [1] | ROTOR ASSY | |
| 2. | VG2311799003 | [1] | PROTECTOR | |
| 3. | VG2312099010 | [1] | BALL BEARING | KOBBALL |
| 4. | VG2312099011 | [1] | BALL BEARING | KOBBALL |
| 5. | VG2311690002 | [1] | PACKING | |
| 6. | VG2317890006 | [1] | SPACER | |
| 7. | VG2314599007 | [1] | RETAINER | |
| 8. | VG2313699002 | [1] | SEAL-DUST | |
| 9. | VG2310299008 | [1] | COIL-STARTER | |
| 10. | VG2319590001 | [1] | KEY | |
| 11-30. | VG2312799111 | [1] | COVER ASSY-REAR | |
| 11.12. | VG2312899013 | [1] | COVER-REAR | |
| 12. | VG2313790008 | [3] | DIODE | |
| 13.14. | VG2311490007 | [1] | HOLDER ASSY | |
| 14. | VG2313790009 | [3] | DIODE | |
| 15.16. | VG2314699007 | [1] | TERMINAL ASSY | |
| 16. | VG2314799018 | [1] | BOLT | |
| 17-20. | VG2313499000 | [1] | HOLDER ASSY-BRUSH | |
| 17. | VG2313490004 | [1] | HOLDER | |
| 18. | VG0831041610 | [4] | SCREW | |
| 19. | VG2313590010 | [1] | BRUSH | KOB |
| 20. | VG2313590011 | [1] | BRUSH ASSY | |
| 21. | VG2316599018 | [1] | LEAD MIRE | |
| 22. | VG2314899000 | [1] | COVER TERMINAL | COVER TERMINAL |
| 23. | VG2314790007 | [1] | BOLT TERMINAL | BOLT TERMINAL |
| 25. | VG2313899004 | [1] | HOLDER SCREW | |
| 27. | VG2313899005 | [1] | HOLDER SCREW | |
| 29. | VG2313899006 | [2] | HOLDER SCREW | |
| 30. | VG2312490001 | [1] | PLATE-TERMINAL | |
| 31. | VG2313699003 | [1] | SEAL-FELT | |
| 32.33. | VG2311999009 | [1] | COVER ASSY-FRONT | |
| 33. | VG2311690002 | [1] | PACKING | |
| 34. | VG2313199005 | [3] | BOLT-THROUGH | |
| 35. | VG2315190100 | [1] | PULLEY | |
| 36. | VG2316190002 | [1] | NUT-PULLEY | |
| 37. | VG0831052510 | [3] | SCREW | |
