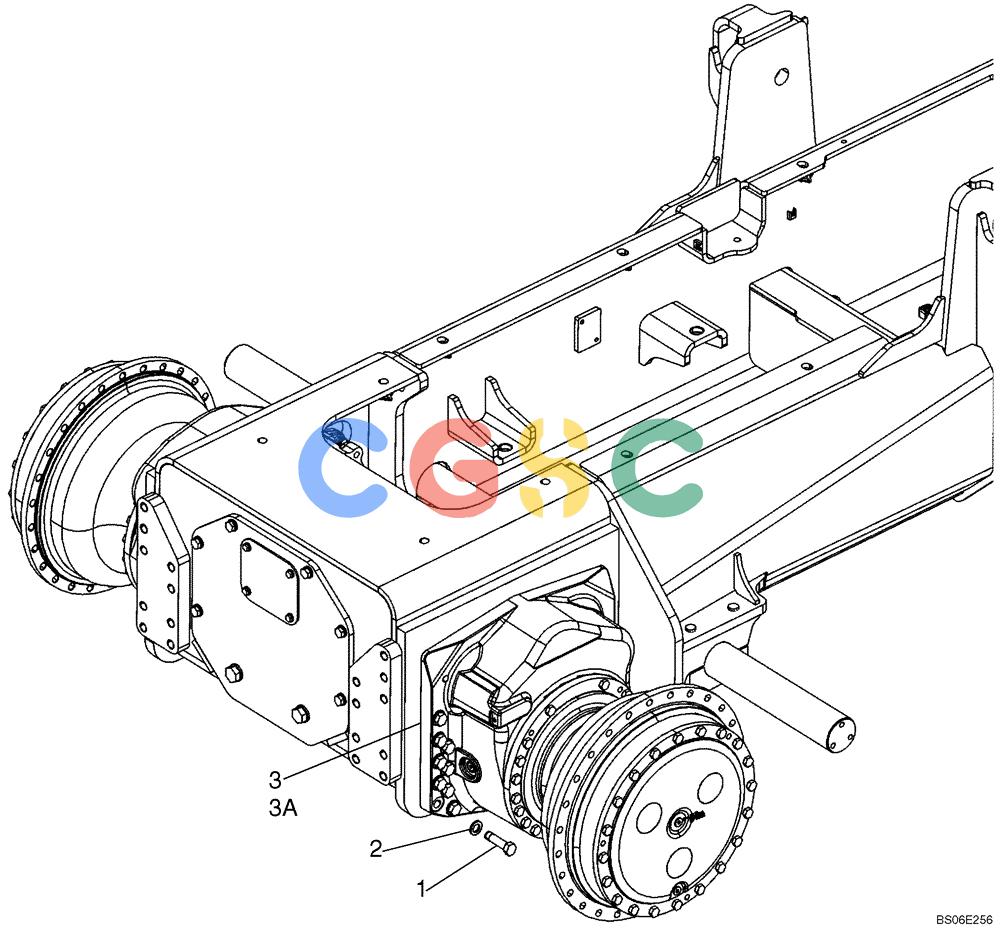

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (06-05) - FINAL DRIVE - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87352548 | [36] | BOLT,Hex, M20 x 75mm, Cl 10.9 | BHBM20 x 75 Locking Bolt |
| 2. | 896-11020 | [36] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS Superseded by part number: 86625260 |
| 3. | 87715383 | [2] | Final Drive, 74 Gage Narrow Extended Long Track (XLT); See Figure 06-06; Mounts to Rear Box on Main Frame, See Figure 09-07 for Final Drive Box Covers | |
| 3A. | 87715384 | [2] | Final Drive, 84 Gage Wide Track (WT) or Low Ground Pressure (LGP); See Figure 06-06; Mounts to Rear Box on Main Frame, See Figure 09-07 For Final Drive Box Covers | |
