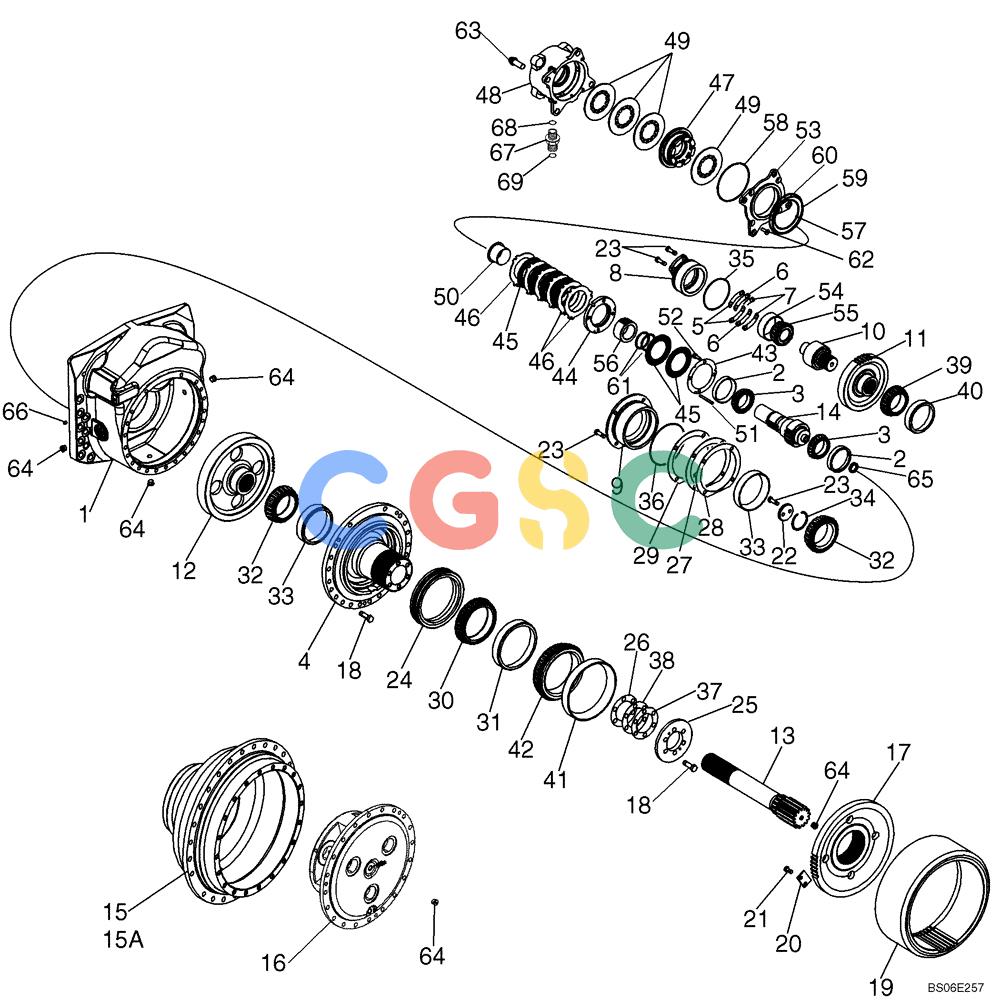

| . . | 87327773 | [2] | DRIVE ASSY. | BUR74 Gage Narrow Extended Long Track (XLT; Includes Ref 1 - 14, 15A - 69; Also Includes Parts On Figure 06-07 Superseded by part number: 47466858 |
| . . | 84311760R | [2] | REMAN-FINAL DRIVE | BUR74 Gage Narrow Extended Long Track (XLT; Includes Ref 1 - 14, 15A - 69; Also Includes Parts On Figure 06-07 |
| . . | 84311760C | [2] | CORE-FINAL DRIVE | BURReturn Number |
| . . | 87327775 | [2] | DRIVE ASSY. | BUR84 Gage Wide Track (WT) or Low Ground Pressure (LGP); Includes Ref 1 - 15, 16 - 69; Also Includes Parts On Figure 06-07 Superseded by part number: 47466859 |
| . . | 84311761R | [2] | REMAN-FINAL DRIVE | BUR84 Gage Wide Track (WT) or Low Ground Pressure (LGP); Includes Ref 1 - 15, 16 - 69; Also Includes Parts On Figure 06-07 |
| . . | 84311761C | [2] | CORE-FINAL DRIVE | BURReturn Number |
| 1. | 87309904 | [1] | HOUSING | BURFinal Drive Superseded by part number: 47447180 |
| 2. | A136128 | [2] | BEARING CUP | IHCup Superseded by part number: 86577049 |
| 3. | A136127 | [2] | ROLLER BEARING,2.5591" ID x 0.9055" | IHCone Superseded by part number: 86577049 |
| 4. | 87452186 | [1] | SPINDLE | BUR |
| 5. | G107613 | [1] | SHIM | CAS0,08 mm thk; Idler Shaft Cover |
| 6. | G107614 | [1] | SHIM | CAS0,18 mm thk; Idler Shaft Cover |
| 7. | G107615 | [1] | SHIM | CAS0,51 mm thk; Idler Shaft Cover |
| 8. | 87452193 | [1] | BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm | BURIdler Gear |
| 9. | 87452194 | [1] | BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm | BURSun Gear |
| 10. | 87610432 | [1] | IDLER PINION | BUR16T |
| 11. | 87610438 | [1] | DRIVEN GEAR | BUR50T |
| 12. | 87309911 | [1] | DRIVEN GEAR | BUR65T |
| 13. | 87309912 | [1] | GEAR | BURShaft, Sun Gear Final Drive |
| 14. | 87309907 | [1] | GEAR | BURPinion, Park Brake and Input Superseded by part number: 47504510 |
| 15. | 87519342 | [1] | HUB | BUR87327775 Final Drive for WT or LGP |
| 15A. | 87638356 | [1] | HUB | BUR87327773 Final Drive for XLT |
| 16. | 87309913 | [1] | PLANET CARRIER | BHBSee Figure 06-07 |
| 17. | 87309916 | [1] | RING CARRIER | BURCarrier, Ring Gear |
| 18. | 606-16050 | [47] | BOLT,Hex, M16 x 50mm, Cl 10.9 | CAS |
| 19. | 87309917 | [1] | GEAR | BURRing |
| 20. | 87452214 | [6] | RETAINER | BURRing Gear |
| 21. | 606-12025 | [12] | BOLT,Hex, M12 x 25mm, Cl 10.9 | CAS |
| 22. | 87452199 | [1] | RETAINER | BURSun Gear |
| 23. | 606-12040 | [10] | BOLT,Hex, M12 x 40mm, Cl 10.9 | CAS |
| 24. | G107620 | [1] | SEAL,193.22mm ID x 238.89mm OD x 42.46mm Thk | CASFace |
| 25. | 87452201 | [1] | ADJUSTING PLATE | BURBearing |
| 26. | 87452202 | [1] | SHIM,82mm ID x 133mm OD x 0.08mm Thk | BUR0,08 mm thk; 6 Mounting Holes |
| 27. | 87452195 | [1] | SHIM | BUR0,08 mm thk; 4 Mounting Holes; Sun Gear Bearing |
| 28. | 87452196 | [1] | SHIM | BUR0,18 mm thk; 4 Mounting Holes; Sun Gear Bearing |
| 29. | 87452197 | [1] | SHIM | BUR0,51 mm thk; 4 Mounting Holes; Sun Gear Bearing |
| 30. | G103915 | [1] | TAPERED ROLLER BEARING,142.88mm ID x 39.69mm W | CASCone |
| 31. | G100240 | [1] | BEARING CUP,200.03mm OD x 34.13mm W | CASBearing |
| 32. | 87313983 | [2] | BEARING ASSY,99.97mm ID x 42mm W | BUR |
| 33. | 87313985 | [2] | BEARING CUP,156.97mm OD x 34mm W | BUR Superseded by part number: 384142 |
| 34. | D32043 | [1] | RING | CASSnap, Internal |
| 35. | 238-5250 | [1] | O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro | CAS Superseded by part number: 510828 |
| 36. | 238-5261 | [1] | O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro | CAS Superseded by part number: 70923596 |
| 37. | 87452203 | [1] | SHIM,82mm ID x 133mm OD x 0.18mm Thk | BUR0,18 mm thk; 6 Mounting Holes |
| 38. | 87452204 | [1] | SHIM,82mm ID x 133mm OD x 0.51mm Thk | BUR0,51 mm thk; 6 Mounting Holes |
| 39. | 65720C91 | [1] | BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378" | IHCone Superseded by part number: 384141 |
| 40. | 65721C1 | [1] | BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378" | IHCup Superseded by part number: 384141 |
| 41. | A140151 | [1] | BEARING CUP | CASBearing Superseded by part number: 86613602 |
| 42. | A140150 | [1] | ROLLER BEARING,6.875" ID x 1.875" | CASBearing Superseded by part number: 86613603 |
| 43. | 87368126 | [1] | SHIM,106mm ID x 146mm OD x 0.1mm Thk | BUR0,10 mm thk; Input Bearing Superseded by part number: 84322474 |
| 44. | 87455988 | [1] | RETAINING PLATE | BURBearing |
| 45. | A188946 | [6] | DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk | CASClutch Friction; Internal Teeth |
| 46. | 385244A2 | [6] | BRAKE PLATE | RACSeparator |
| 47. | 87577298 | [1] | PISTON | BURBrake |
| 48. | 87617640 | [1] | HOUSING | BURParking Brake |
| 49. | 1997880C1 | [4] | SPRING,70.15mm ID x 155mm OD x 3.5mm Thk | IH |
| 50. | 87577303 | [1] | SLEEVE | BURSpring Retainer |
| 51. | 837-8075 | [3] | DOWEL,M8 x 75 | CASHardened Superseded by part number: 87016656 |
| 52. | 863-10025 | [4] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CAS Superseded by part number: 86625209 |
| 53. | 87452184 | [1] | BRAKE PLATE | BURPark Brake Housing Superseded by part number: 47504331 |
| 54. | 84987C1 | [1] | BEARING ASSY | IH Superseded by part number: NNA40435 |
| 55. | 84986C91 | [1] | BEARING | IHCone Superseded by part number: 84986C1 |
| 56. | 87452185 | [1] | HUB | BURPark Brake Hub |
| 57. | 385236A2 | [1] | SEALING RING | RACSEALRING 0,137 x 4,682 in |
| 58. | 385237A2 | [1] | SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro | RACSEALRING 0,137 x 6,165 in |
| 59. | 87591920 | [1] | O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro | BURO-RING |
| 60. | 87591919 | [1] | O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro | BURO-RING |
| 61. | 101-11250 | [2] | SNAP RING,#250, 2.356, Ext | CAS Superseded by part number: 87016255 |
| 62. | 906037R1 | [4] | HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9 | CASSCREW |
| 63. | 868-20050 | [4] | 12 PT SCREW,M20 x 50mm, Cl 12.9 | KOB12 Point Flange Head Screw, M20 x 50; 12.9 |
| 64. | 71100209 | [5] | PLUG,Hex Soc, 3/4"-16 ORB | BHBIncl 237-6008 O-Ring Superseded by part number: 85802955 |
| . . | 237-6008 | [1] | O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro | CAS Superseded by part number: 128825 |
| 65. | 87567817 | [1] | SEAL,28mm ID x 40mm OD x 7mm Thk | BUROil Seal |
| 66. | 87520606 | [1] | PLUG | BRRExpansion Type; 10 mm |
| 67. | 201-101 | [1] | HYD CONNECTOR,11/16"-16 ORFS x 9/16"-18 ORB | CASIncl Ref 68, 69, Parking Brake Housing Superseded by part number: 9993143 |
| 68. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CASBoss End Superseded by part number: 9617873 |
| 69. | 238-6012 | [1] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9993141 |
| 70. | 87487610 | [2] | GUARD | BURSeal |
| 71. | 87487609 | [2] | GUARD | BURSeal |
| 72. | 86625266 | [16] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | GI |
| 73. | 86541970 | [16] | BOLT,Hex, M16 x 100mm, Cl 10.9 | WIN |
| 74. | 84226589 | [1] | SEAL KIT | BURSeal Guard |
| 75. | 84335948 | [1] | SERVICE KIT | BURPark Brake (Not Shown) |
