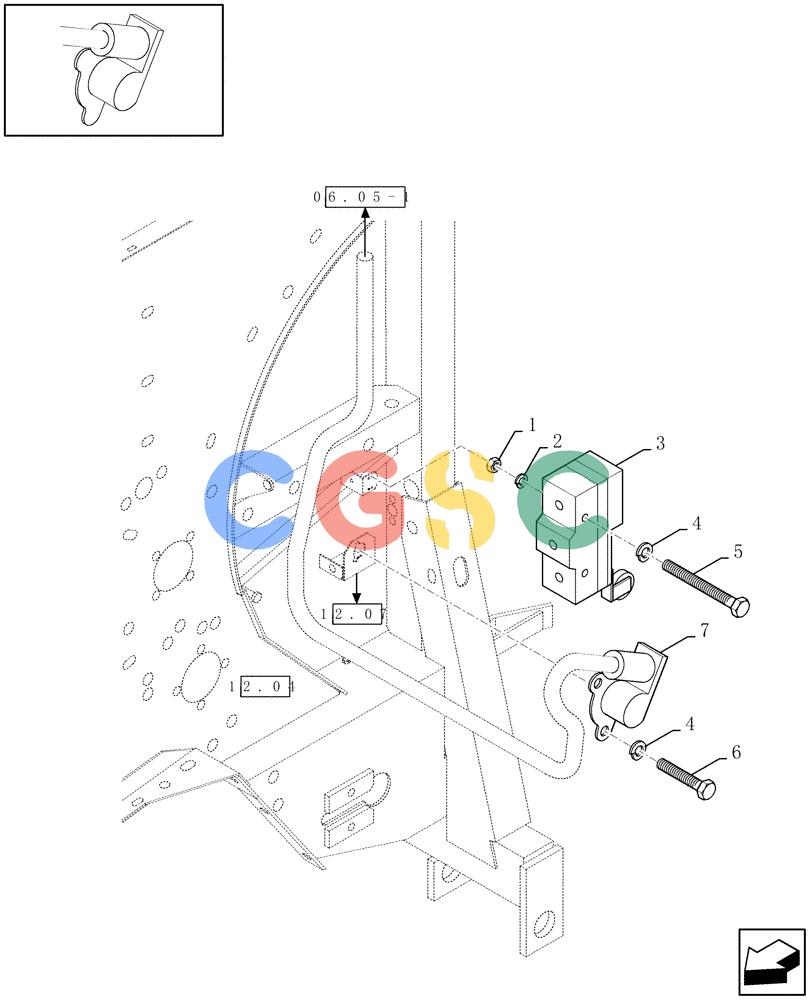

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (06.06[01]) - TAILGATE LATCH SWITCH AND BALE SIZE DETECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
691 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
100011
|
[4] |
NUT,M3, Cl 8
|
NNA
Superseded by part number: 1175064
|
| 2. |
80412547
|
[4] |
LOCK WASHER
|
ZED
3MM Superseded by part number: 412547
|
| 3. |
80783681
|
[2] |
SWITCH
|
PLO
Superseded by part number: 783681
|
| 4. |
80322355
|
[8] |
WASHER
|
ZED
4MM Superseded by part number: 322355
|
| 5. |
84005966
|
[4] |
SCREW,Pan, M3 x 35mm, Cl 4.8
|
ZED
M3x35
|
| 6. |
80412255
|
[2] |
BOLT
|
PLO
M4x20 Superseded by part number: 412255
|
| 7. |
86500902
|
[2] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
NH
, Serial Range: -C639 Superseded by part number: 86977396
|
| 7. |
86977396
|
[2] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
PA
, Start Serial: D640
|
