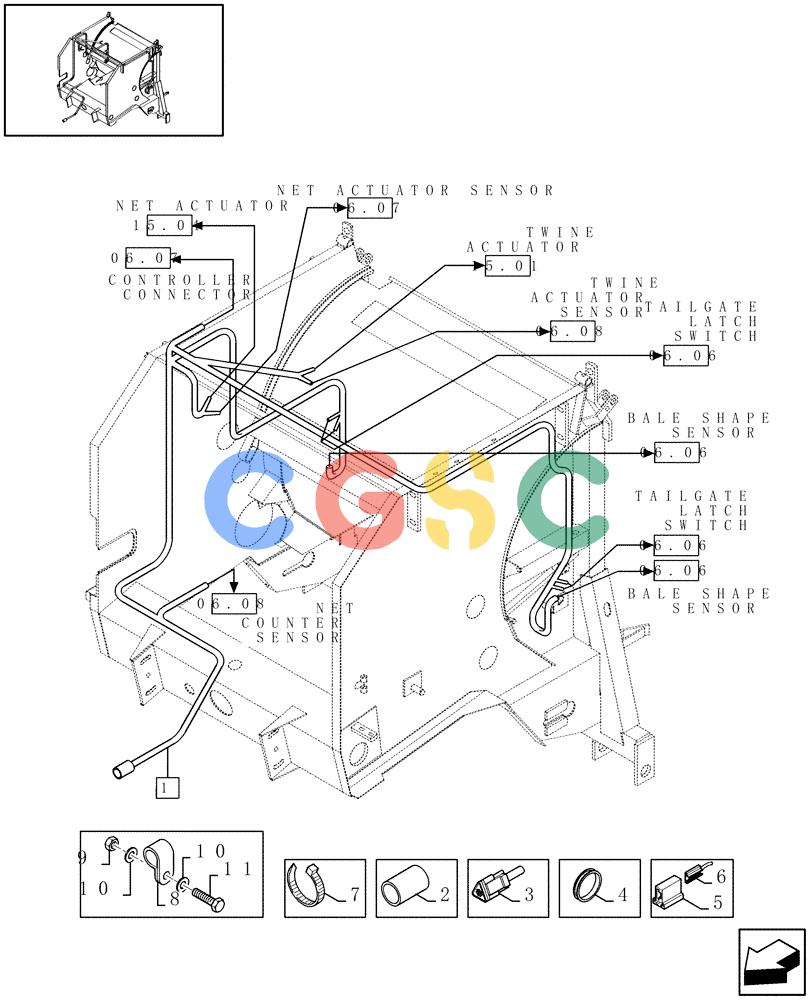

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (06.05[01]) - ELECTRIC WIRE, BALE COMMAND TM Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86531610
|
[1] |
WIRE HARNESS
|
PLO
, Serial Range: (2-6)
|
| 2. |
9619682
|
[2] |
BUSHING
|
NH
|
| 3. |
9842514
|
[3] |
KIT
|
NH
Superseded by part number: 87695723, 87695646, 87695625, 87695580
|
| 4. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
|
| 5. |
80248712
|
[2] |
WIRE CONNECTOR
|
PA
Superseded by part number: 87693325
|
| 6. |
900613
|
[4] |
TERMINAL
|
NH
Superseded by part number: NH900613
|
| 7. |
80323597
|
[15] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 8. |
89503929
|
[6] |
CLAMP
|
ZED
13MM Superseded by part number: 84818442
|
| 9. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 10. |
80140015
|
[1] |
WASHER
|
ZED
6MM Superseded by part number: 86588450
|
| 11. |
80120100
|
[1] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
