纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (06-08) - FILTER ASSY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
312 次

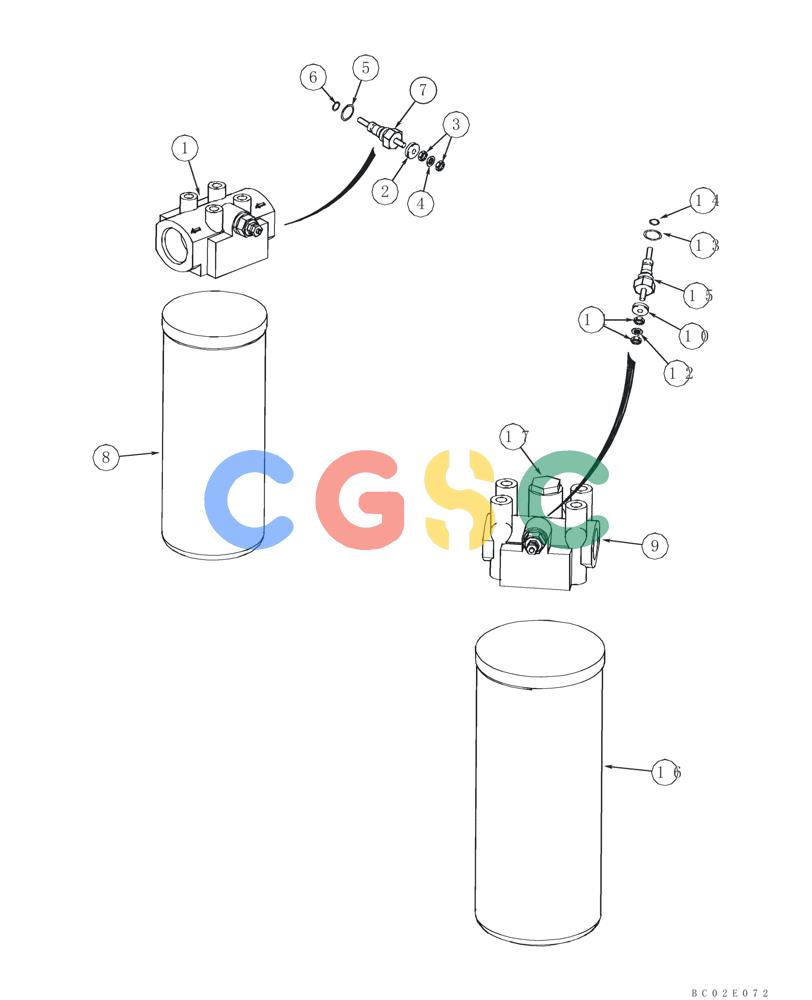

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87331818 | [1] | FILTER ASSY | BURFILTER ASSY, Hydraulic Oil; Incl. Ref 1 - 8 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHead |
| . . | N13268 | [1] | PRESSURE SWITCH | CASIncl. Ref 2 - 7 Superseded by part number: 8604802 |
| 3. | 129-667 | [2] | NUT,#10-32, LH | CAS Superseded by part number: 86625058 |
| 4. | 493-21020 | [1] | LOCK WASHER,Int Tooth, #10 | CAS Superseded by part number: 280254 |
| 5. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS Superseded by part number: 9617873 |
| 6. | 238-5011 | [1] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | CAS Superseded by part number: 9672548, 87779390 |
| 8. | 87404986 | [1] | HYDRAULIC OIL FILTER | BASElement Superseded by part number: 84226263 |
| . . | 418237A1 | [1] | FILTER ASSY | BURHydrostatic; 4-5/8 OD x 14-11/16 in lg; Incl. Ref 9 - 17 |
| 16. | 254353A1 | [1] | HYDRAULIC OIL FILTER | CAS4-5/8 OD x 11-5/8 in lg |
