纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (06-07) - PLANETARY, FINAL DRIVE ASSEMBLY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
858 次

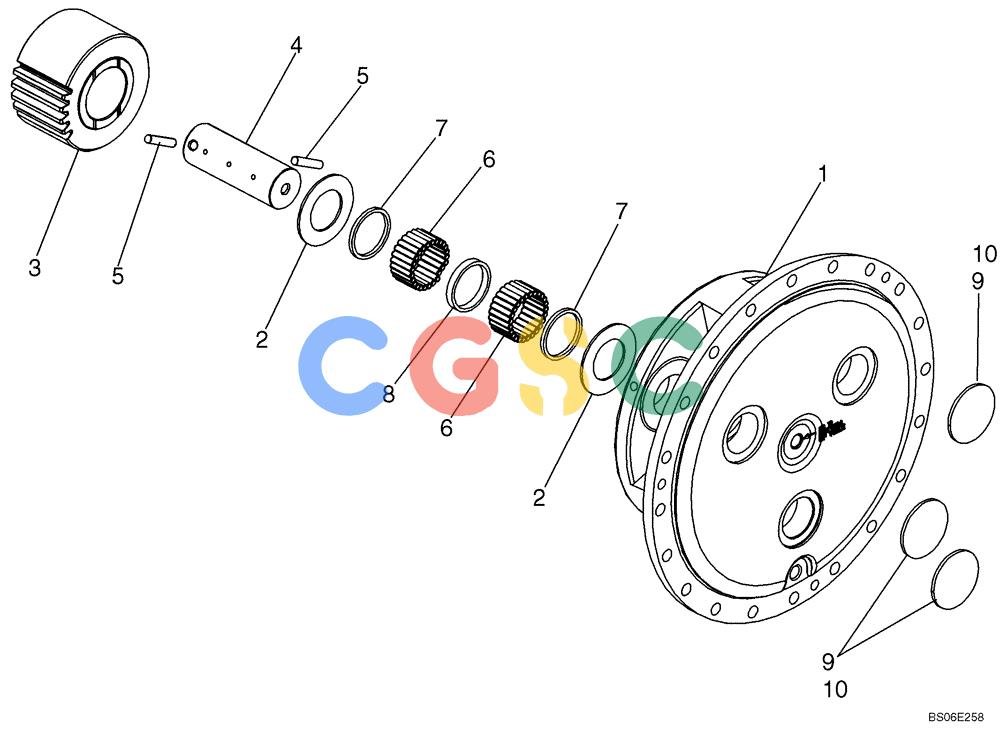

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87715383 | [2] | Final Drive Assy, 74 Gage Narrow Extended Long Track (XLT); Incl. Ref 1 - 10; Also Includes Parts On Figure 06-06 | |
| . . | 87715384 | [2] | Final Drive Assy, 84 Gage Wide Track (WT) or Low Ground Pressure (LGP); Incl. Ref 1 - 10; Also Includes Parts On Figure 06-06 | |
| . . | 87309913 | [1] | PLANET CARRIER | BHBCarrier Assembly, Planetary; Included With 87327773 or 87327775 Final Drive Assy; Incl. Ref 1 - 10 |
| 1. | 87309914 | [1] | HOUSING | BURHousing, Planetary Carrier |
| 2. | 87452211 | [6] | THRUST WASHER,58mm ID x 100mm OD x 3mm Thk | BURThrust Washer, Planet Gear |
| 3. | 87309915 | [3] | GEAR | BURGear, Planet |
| 4. | 87452207 | [3] | GROOVED PIN,57.62mm OD x 162mm L | BURPlanet Gear Pin |
| 5. | 135-113 | [6] | GROOVED PIN,7/16" x 2", Type A | CASPIN, GROVED |
| 6. | A151972 | [150] | ROLLER | CASBEARING, Roller |
| 7. | 87452209 | [6] | SPACER | BURSPACER, NEEDLE BEARING, 62.60 ID x 71.85 OD x 5.30 mm thk Spacer |
| 8. | 87452210 | [3] | SPACER | BURSPACER, NEEDLE BEARING, 62.60 ID x 71.85 OD x 10.30 mm thk Spacer |
| 9. | 41-52 | [3] | PLUG,Exp, 3 1/4" | CASPLUG, Expansion Superseded by part number: 41-3052 |
| 10. | 345-74 | [1] | SEALANT | CAS1 ml Loctite No. 504 Superseded by part number: B501074 |
