神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (08-010) - TANK FUEL "OEA PARTS" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
361 次

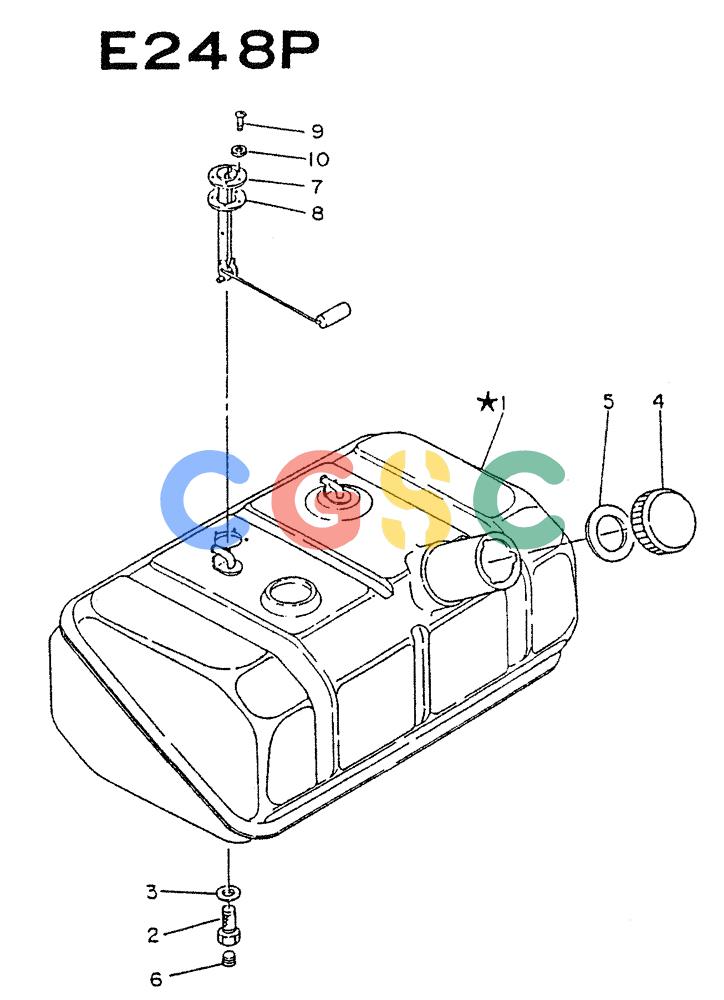

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76 | [1] | FUJI JUKO, Years: -01-FEB-88 | |
| 1-6. | VG17201Z2060 | [2] | TANK ASSY-FUEL, NOT FOR SALE INDIVIDUALLY, Years: -01-DEC-86 | |
| 1-5. | VG17201Z2006 | [2] | TANK ASSY-FUEL | |
| 2. | VG17261Z2001 | [2] | SCREEN ASSY, NOT FOR SALE INDIVIDUALLY, Years: -01-DEC-86 | |
| 2. | VG1726190000 | [2] | SCREEN ASSY | |
| 3. | VG0135121304 | [2] | GASKET | |
| 4. | VG1725190002 | [2] | CAP ASSY-FILLER | |
| 5. | VG1726490004 | [2] | SEAT-RUBBER | |
| 6. | VG009311061A | [2] | PLUG-THREAD, NOT FOR SALE INDIVIDUALLY, Years: -01-DEC-86 | |
| 7. | VG1729190174 | [2] | UNIT ASSY-TANK | |
| 8. | VG1729490001 | [2] | GASKET | |
| 9. | VG0836051612 | [10] | SCREW | |
| 10. | VG1730190000 | [10] | WASHER-SEAL | |
