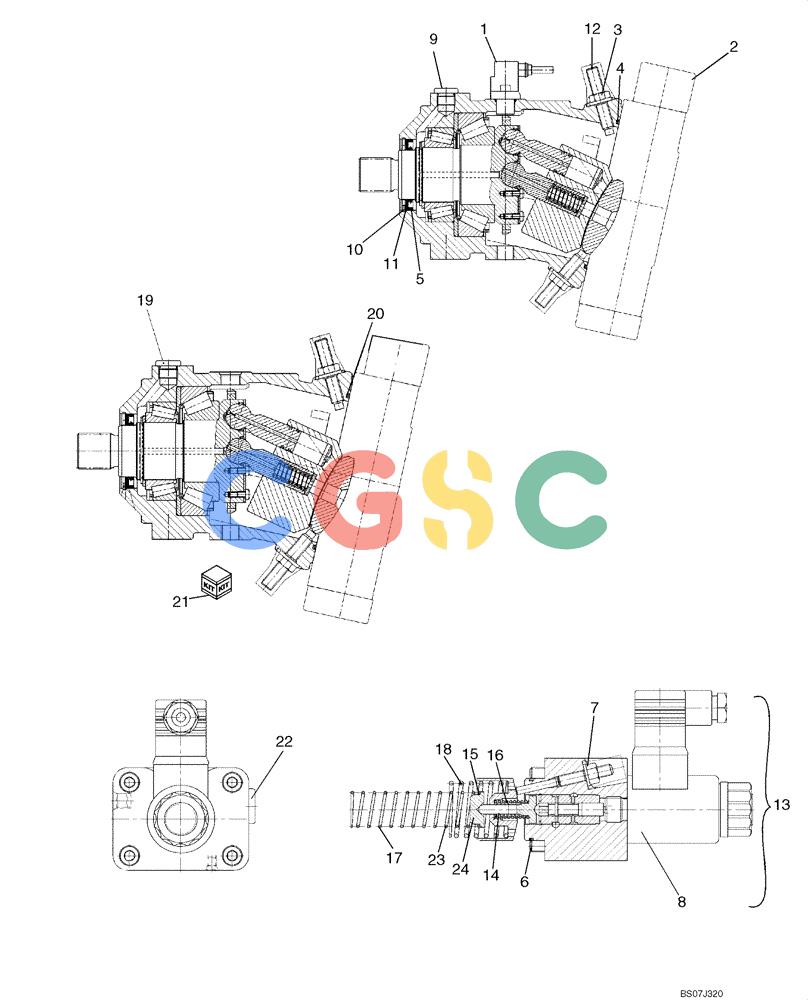

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (06-10) - HYDROSTATIC MOTOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
946 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87313556 | [2] | HYDROSTATIC MOTOR | BURHydrostaticMotor, 140cc ; Incl. 1 - 18, Also Incl. Parts On Figure 06-11 |
| . . | 87313556R | [2] | REMAN-HYD MOTOR | BURD150B - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) |
| . . | 87313556C | [1] | CORE-MOTOR HYDRAULIC | BURReturn Number |
| . . | 87516652 | [1] | SEAL KIT | BURComplete Motor Seal Kit |
| 1. | 87516649 | [1] | SENSOR | BURMotor Speed Sensor |
| 2. | 87516680 | [1] | SENSOR | BURSpeed Sensor Control Block |
| 3. | 87441442 | [2] | LOCK NUT | BURNUT, Seal Lock |
| 4. | 87516655 | [1] | O-RING,164.69MM ID x 6.762" OD x 3.53MM | BUR164.69 x 3.53 O-Ring |
| 5. | 87516653 | [1] | SEAL,60mm ID x 80mm OD x 7mm Thk | BURShaft Seal |
| 6. | 87516669 | [1] | O-RING,39.34mm ID x 1.755" OD x 2.62mm | BUR39.34 x 2.62 O-Ring |
| 7. | 87441441 | [1] | LOCK NUT | BURNUT, Seal Lock |
| 8. | 87516674 | [1] | SOLENOID | BURProportional Solenoid |
| 9. | 87516650 | [1] | PLUG | BURSCREW, LOCK M18 x 1.5 Plug |
| 10. | 87516651 | [1] | RING | BUR80 x 2.5 Retaining Ring Superseded by part number: 71485840 |
| 11. | 87516654 | [1] | PLATE | BUR63 x 80 Backup Plate |
| 12. | 87516656 | [2] | PIN | BURThreaded Pin |
| 13. | 87516657 | [1] | CONTROL | BURComplete Control Assembly Superseded by part number: 87313244 |
| 14. | 87516664 | [1] | RETAINER COLLAR | BURSpring Collar Retainer |
| 15. | 87516665 | [1] | RETAINER COLLAR | BURSpring Collar Retainer |
| 16. | 87516666 | [1] | SPRING | BUR1.4/8.6/19 Spring |
| 17. | 87516667 | [1] | SPRING | BUR1.6/21.1/79 Spring |
| 18. | 87516668 | [1] | SPRING | BUR3.0/36.6/115.0 Spring |
| 19. | 87713160 | [1] | PLUG | BHBSCREW, Locking |
| 20. | 87713162 | [1] | O-RING | BHBO-RING Superseded by part number: 1471780 |
| 21. | 87713161 | [1] | REPAIR KIT | BHBKIT, Complete Seal Superseded by part number: 6914958 |
| 22. | 87713171 | [1] | PLUG | BHBSCREW, Locking |
| 23. | 87713170 | [1] | SPRING | BHBSPRING, Pressure Superseded by part number: 84485202 |
| 24. | 87713169 | [1] | SPRING CUP | BHBSPRING, Collar/Retainer Superseded by part number: 84485202 |
| . . | 87713173 | [4] | SCREW | BHBSCREW, Head Socket |
| . . | 87713174 | [1] | O-RING | BHBO-Ring Superseded by part number: 1446128 |
| . . | 87713175 | [1] | Flushing Orifice | |
