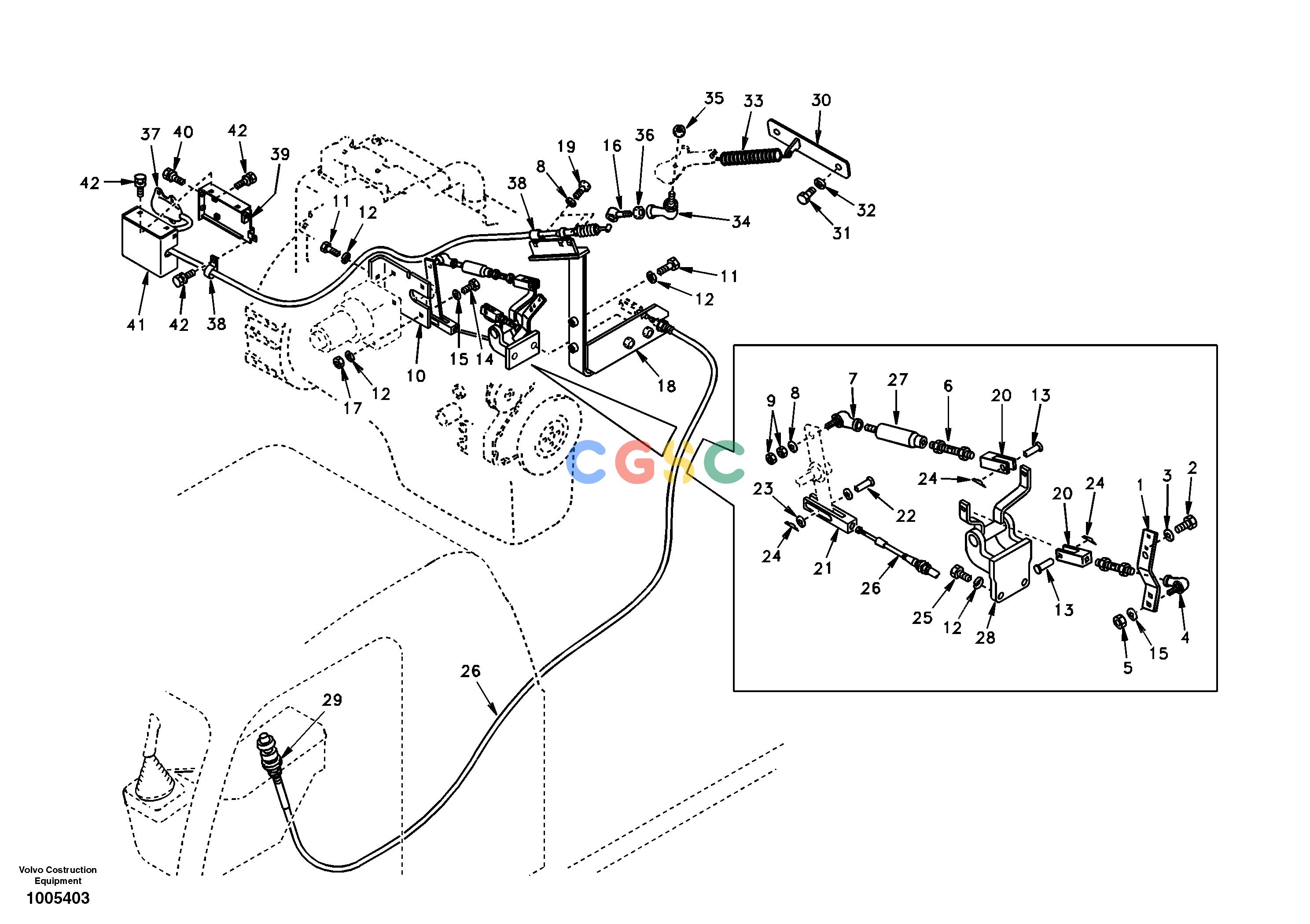

沃尔沃零件查询EW130 Speed controlNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1118-00750
|
[1] |
Lever
|
|
| 2. |
SA9011-10603
|
[2] |
Bolt
|
|
| 3. |
VOE955892
|
[2] |
Plain washer
|
|
| 4. |
VOE14880993
|
[1] |
Rod end
|
|
| 5. |
VOE993197
|
[1] |
Hexagon nut
|
|
| 6. |
SA1118-00231
|
[2] |
Bar
|
|
| 7. |
VOE14880992
|
[1] |
Rod end
|
|
| 8. |
VOE993835
|
[4] |
Plain washer
|
|
| 9. |
VOE983303
|
[2] |
Hexagon nut
|
|
| 10. |
SA1118-01660
|
[1] |
Bracket
|
|
| 11. |
VOE993025
|
[2] |
Hexagon screw
|
|
| 12. |
VOE955922
|
[8] |
Spring washer
|
|
| 13. |
SA9321-20611
|
[2] |
Clevis Pin
|
|
| 14. |
VOE991635
|
[4] |
Hexagon screw
|
|
| 15. |
VOE992040
|
[5] |
Plain washer
|
|
| 16. |
SA1118-01590
|
[1] |
Hook
|
|
| 17. |
VOE983304
|
[4] |
Hexagon nut
|
|
| 18. |
SA1118-01500
|
[1] |
Bracket
|
|
| 19. |
VOE965175
|
[3] |
Flange screw
|
|
| 20. |
SA1118-00400
|
[2] |
Yoke
|
|
| 21. |
SA1118-00181
|
[1] |
Yoke
|
|
| 22. |
VOE13964834
|
[1] |
Clevis pin
|
|
| 23. |
SA1118-01630
|
[2] |
Plain washer
|
|
| 24. |
SA9326-06000
|
[3] |
Pin
|
|
| 25. |
VOE983252
|
[2] |
Hexagon screw
|
|
| 26. |
SA1018-00401
|
[1] |
Cable
|
|
| 27. |
SA1118-00280
|
[1] |
Vibration damper
|
|
| 28. |
SA1118-00550
|
[1] |
Bracket
|
|
| 29. |
SA1118-00650
|
[1] |
Grommet
|
|
| 30. |
SA1118-01440
|
[1] |
Bracket
|
|
| 31. |
SA1118-01530
|
[2] |
Bolt
|
|
| 32. |
SA14880474
|
[2] |
Washer
|
|
| 33. |
VOE14504562
|
[1] |
Spring
|
|
| 34. |
VOE14880989
|
[1] |
Rod end
|
|
| 35. |
VOE14880449
|
[1] |
Lock nut
|
|
| 36. |
VOE993868
|
[1] |
Hexagon nut
|
|
| 37. |
SA1122-03770
|
[1] |
Wire
|
|
| 38. |
SA9315-00801
|
[2] |
Insulating clip
|
|
| 39. |
SA1118-01430
|
[1] |
Bracket
|
|
| 40. |
VOE946441
|
[2] |
Flange screw
|
|
| 41. |
SA1118-01480
|
[1] |
Cover
|
|
| 42. |
VOE946173
|
[6] |
Flange screw
|
|
