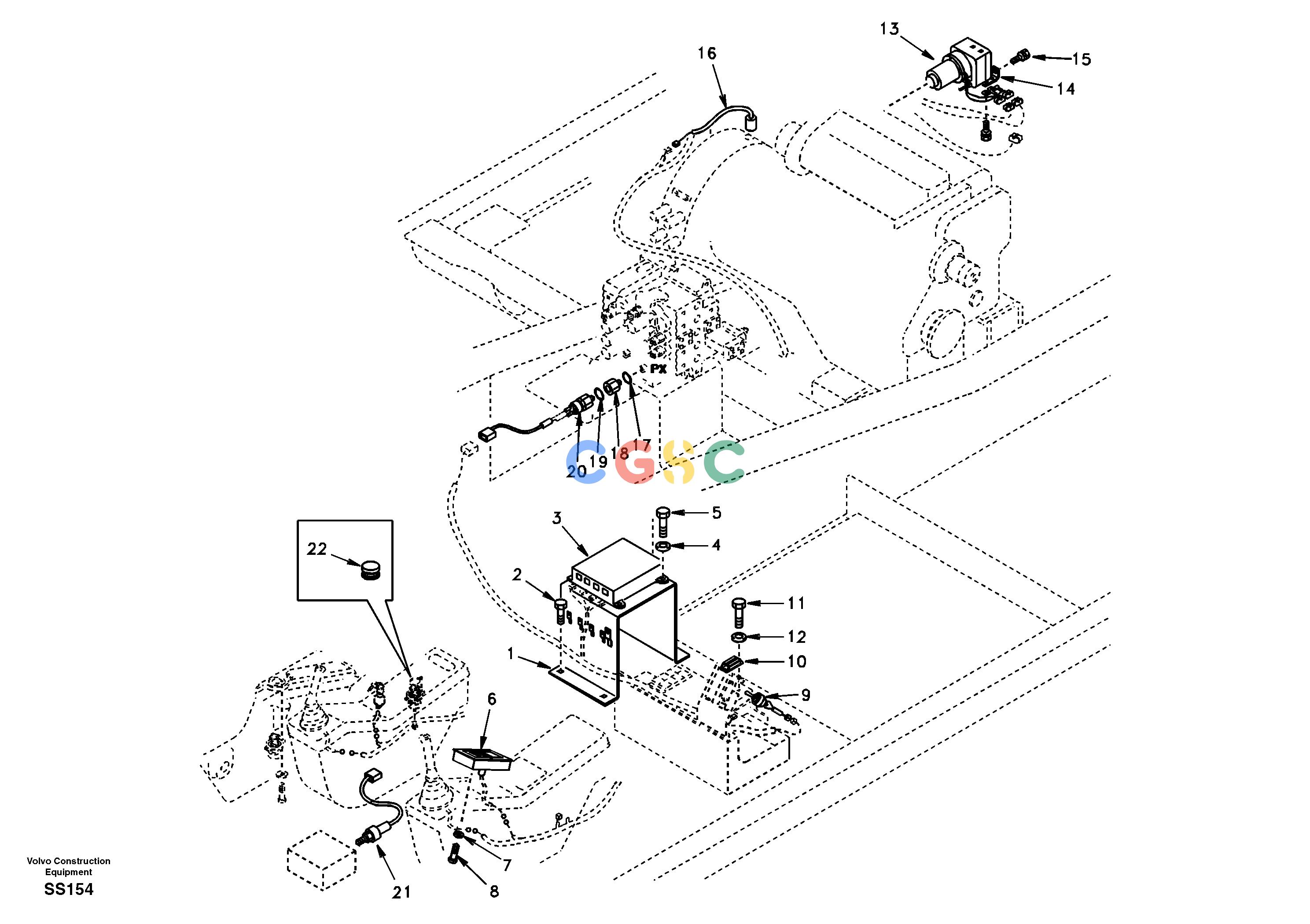

沃尔沃零件查询EW130 Automatic Speed controlNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529228
|
[1] |
Bracket
|
|
| 2. |
VOE946441
|
[4] |
Flange screw
|
|
| 3. |
SA14509891
|
[1] |
Control Unit
|
|
| 4. |
VOE993835
|
[4] |
Plain washer
|
SER NO 3001-3560
|
| 5. |
VOE60113082
|
[4] |
Flange screw
|
|
| 6. |
VOE14507378
|
[1] |
Display
|
SER NO 3001-3214
|
| |
VOE14514319
|
[1] |
Display
|
SER NO 3215-
|
| 7. |
VOE14880426
|
[4] |
Washer
|
|
| 8. |
SA9021-10402
|
[4] |
Cross recessed screw
|
|
| 9. |
VOE14526156
|
[1] |
Toggle switch
|
SER NO 3001-4535
|
| |
VOE14616040
|
[1] |
Toggle switch
|
SER NO 4536-
|
| 10. |
VOE14529299
|
[1] |
Box
|
|
| 11. |
VOE969422
|
[2] |
Six point socket screw
|
|
| 12. |
VOE955892
|
[2] |
Plain washer
|
|
| 13. |
VOE14529290
|
[1] |
Motor
|
|
| 14. |
VOE14529309
|
[1] |
Clip
|
|
| 15. |
VOE946471
|
[1] |
Flange screw
|
|
| 16. |
VOE14529029
|
[1] |
Magnet
|
|
| 17. |
VOE983502
|
[1] |
O-ring
|
|
| 18. |
VOE14529302
|
[1] |
Adapter
|
|
| 19. |
SA9426-20030
|
[1] |
Gasket
|
|
| 20. |
VOE14529293
|
[1] |
Switch
|
|
| 21. |
VOE14529292
|
[1] |
Sensor
|
|
| 22. |
VOE14529291
|
[1] |
Cover
|
|
