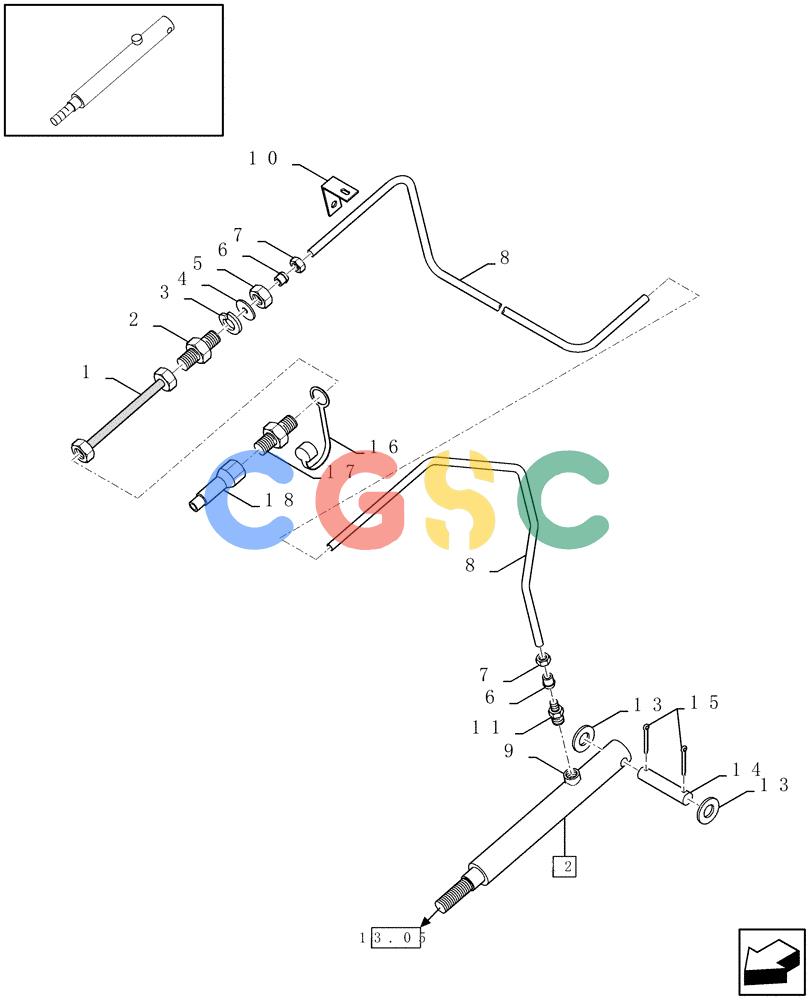

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (07.01[01]) - HYDRAULICS FOR PICK-UP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84025710
|
[1] |
HYDRAULIC HOSE,6.4mm ID x 2400mm L, SAE 100R1
|
PLO
|
| 2. |
84025707
|
[1] |
HYD CONNECTOR
|
PLO
|
| 3. |
80140069
|
[1] |
WASHER
|
ZED
Superseded by part number: 140069
|
| 4. |
80350656
|
[1] |
SPARE PART
|
ZED
Superseded by part number: 350656
|
| 5. |
80100065
|
[1] |
NUT
|
ZED
M14
|
| 6. |
80335136
|
[2] |
FERRULE
|
ZED
Superseded by part number: 335136
|
| 7. |
80335135
|
[2] |
NUT
|
ZED
Superseded by part number: 335135
|
| 8. |
80371540
|
[1] |
RIGID TUBE
|
ZED
DIA:8MM Superseded by part number: 371540
|
| 9. |
84038372
|
[1] |
SEAL KIT
|
PLO
|
| 10. |
84024980
|
[1] |
BRACKET
|
PLO
|
| 11. |
80386215
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 386215
|
| 12. |
84024400
|
[1] |
HYDRAULIC CYLINDER
|
PLO
(9)
|
| 13. |
80378247
|
[2] |
WASHER
|
ZED
20MM Superseded by part number: 378247
|
| 14. |
80320677
|
[1] |
PIN
|
PLO
|
| 15. |
80412686
|
[2] |
COTTER PIN
|
ZED
5x32 Superseded by part number: 412686
|
| 16. |
84042342
|
[1] |
DUST CAP
|
ZED
|
| 17. |
84057160
|
[1] |
HYD CONNECTOR
|
ZED
|
| 18. |
772730
|
[1] |
QUICK MALE COUPLING
|
NH
Male Superseded by part number: 86544945
|
