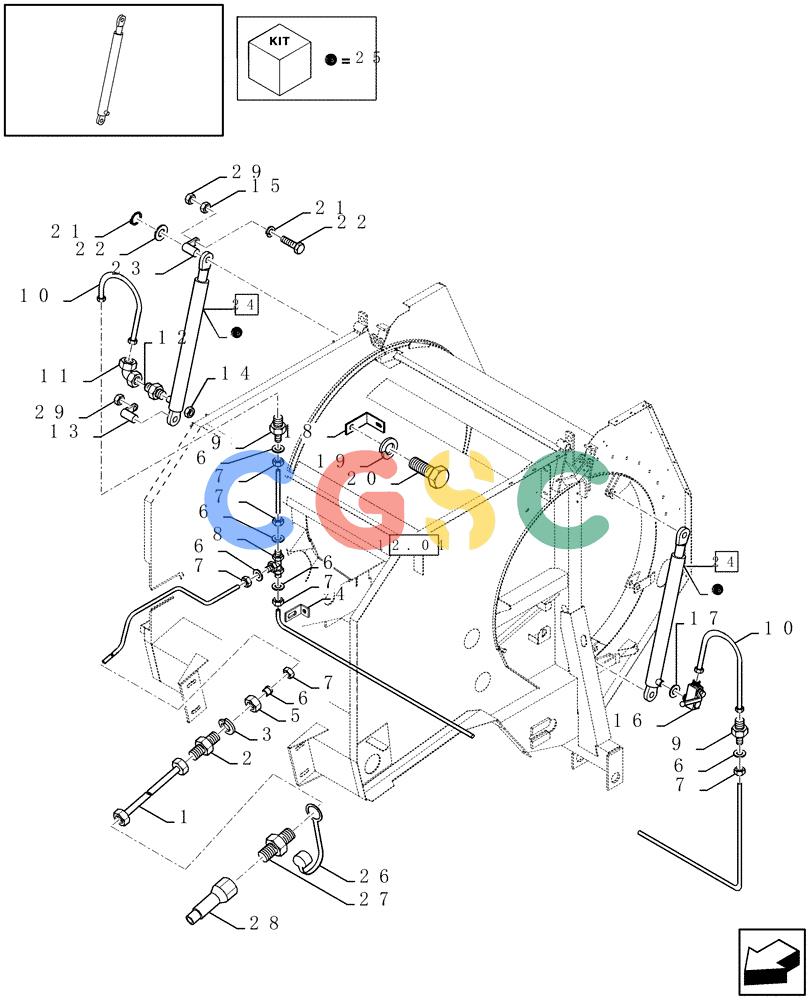

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (07.02[01]) - HYDRAULICS FOR TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84025710
|
[1] |
HYDRAULIC HOSE,6.4mm ID x 2400mm L, SAE 100R1
|
PLO
|
| 2. |
84025707
|
[1] |
HYD CONNECTOR
|
PLO
|
| 3. |
80140069
|
[1] |
WASHER
|
ZED
15MM Superseded by part number: 140069
|
| 4. |
84056634
|
[1] |
BRACKET
|
ZED
|
| 5. |
80100065
|
[1] |
NUT
|
ZED
M14
|
| 6. |
80335136
|
[1] |
FERRULE
|
ZED
8MM Superseded by part number: 335136
|
| 7. |
80335135
|
[1] |
NUT
|
ZED
M8 Superseded by part number: 335135
|
| 8. |
80379430
|
[1] |
3 WAY CONNECTION
|
ZED
Superseded by part number: 379430
|
| 9. |
80335172
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 335172
|
| 10. |
84025709
|
[2] |
HYDRAULIC HOSE,6.4mm ID x 600mm L, SAE 100R1
|
PLO
|
| 11. |
89508529
|
[1] |
ELBOW
|
ZED
Superseded by part number: 9508529
|
| 12. |
80395782
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395782
|
| 13. |
84068723
|
[2] |
PIN
|
PLO
|
| 14. |
43362
|
[2] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 16. |
84024388
|
[1] |
HYDRAULIC VALVE,M18 x 1.5 x M18 x 1.5
|
PLO
|
| 17. |
80220122
|
[1] |
GASKET
|
ZED
Superseded by part number: 220122
|
| 18. |
84024980
|
[3] |
BRACKET
|
PLO
|
| 19. |
80140045
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 20. |
80120109
|
[2] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 21. |
80140016
|
[2] |
WASHER
|
ZED
8MM Superseded by part number: 86624184
|
| 22. |
80300382
|
[2] |
SCREW
|
ZED
M8x60 Superseded by part number: 86977784
|
| 24. |
84024114
|
[2] |
HYDRAULIC CYLINDER
|
PLO
(25)
|
| 25. |
84038371
|
[2] |
SEAL KIT
|
PLO
|
| 26. |
84042341
|
[1] |
PROTECTION CAP
|
ZED
Superseded by part number: 84819669
|
| 27. |
84057160
|
[1] |
HYD CONNECTOR
|
ZED
|
| 28. |
772730
|
[1] |
QUICK MALE COUPLING
|
NH
Male Superseded by part number: 86544945
|
| 29. |
80100067
|
[4] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
