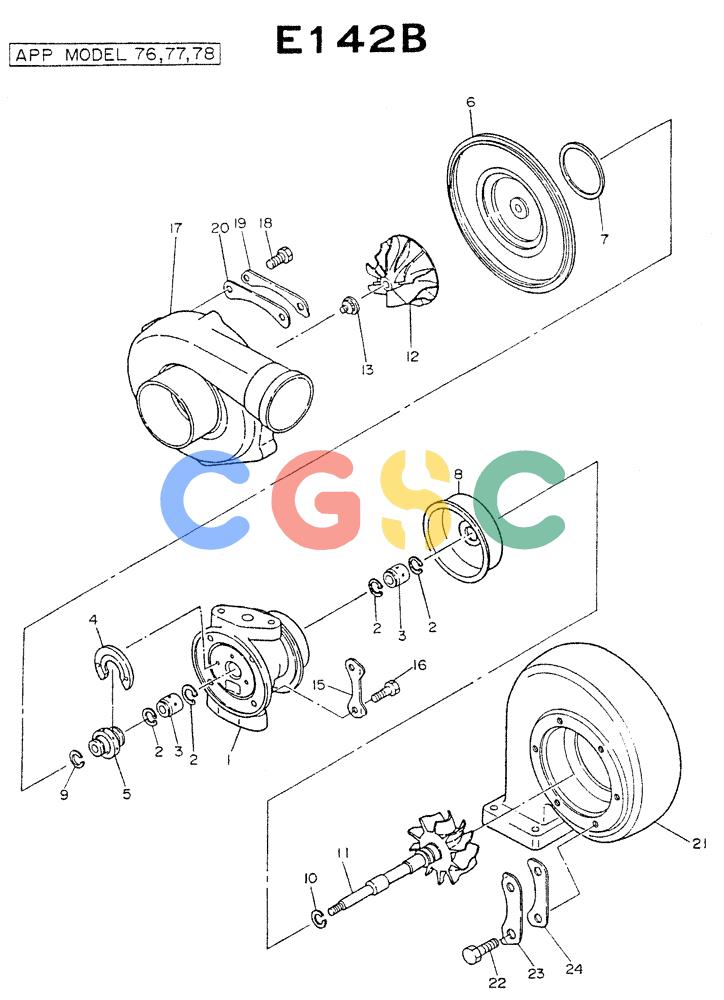

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (04-005) - TURBO CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
777 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-24. | VG1420195005 | [1] | TURBO CHARGER | |
| 1. | VG1420899014 | [1] | HOUSING-CENTER | |
| 2. | VG1423699000 | [4] | RETAINER | KOBRING-RETAINER |
| 3. | VG1420799001 | [2] | SET OF STD MAIN BRGS | KOBBEARING |
| 4. | VG1421499001 | [1] | SET OF STD MAIN BRGS | KOBBEARING-THRUST |
| 5. | VG1421599001 | [1] | COLLAR CLAMP | KOBCOLLER-T-HRUST |
| 6. | VG1422299009 | [1] | BACK PLATE ASSY | |
| 7. | VG1421799000 | [1] | SEAL RETAINER | KOBRING-SEAL |
| 8. | VG14223Z9002 | [1] | WHEEL-SHROUD | |
| 9. | VG1420599003 | [1] | PISTON RING | KOBRING-PISTON |
| 10. | VG1420599004 | [1] | PISTON RING | KOBRING-PISTON |
| 11. | VG1420419004 | [1] | SHAFT-WHEEL | |
| 12. | VG1422699108 | [1] | WHEEL-COMPRESSOR | |
| 13. | VG1422519001 | [1] | LOCK-NUT | |
| 15. | VG1421999000 | [2] | PLATE | KOBPLATE-LOCK |
| 16. | VG14218Z9OO1 | [4] | BOLT | |
| 17. | VG1422699107 | [1] | HOUSING-COMPRESSOR | |
| 18. | VG14220Z9010 | [6] | BOLT | |
| 19. | VG1421999006 | [3] | PLATE PLATE-LOCK | PLATE PLATE-LOCK |
| 20. | VG1422199004 | [3] | CLAMP PLATE-CLAMP | CLAMP PLATE-CLAMP |
| 21. | VG1420299112 | [1] | HOUSING-TURBINE | |
| 22. | VG1422099003 | [1] | SCREW | KOBBOLT |
| 23. | VG1421999002 | [3] | PLATE | KOBPLATE-LOCK |
| 24. | VG1422119003 | [3] | PLATE-CLAMP | |
