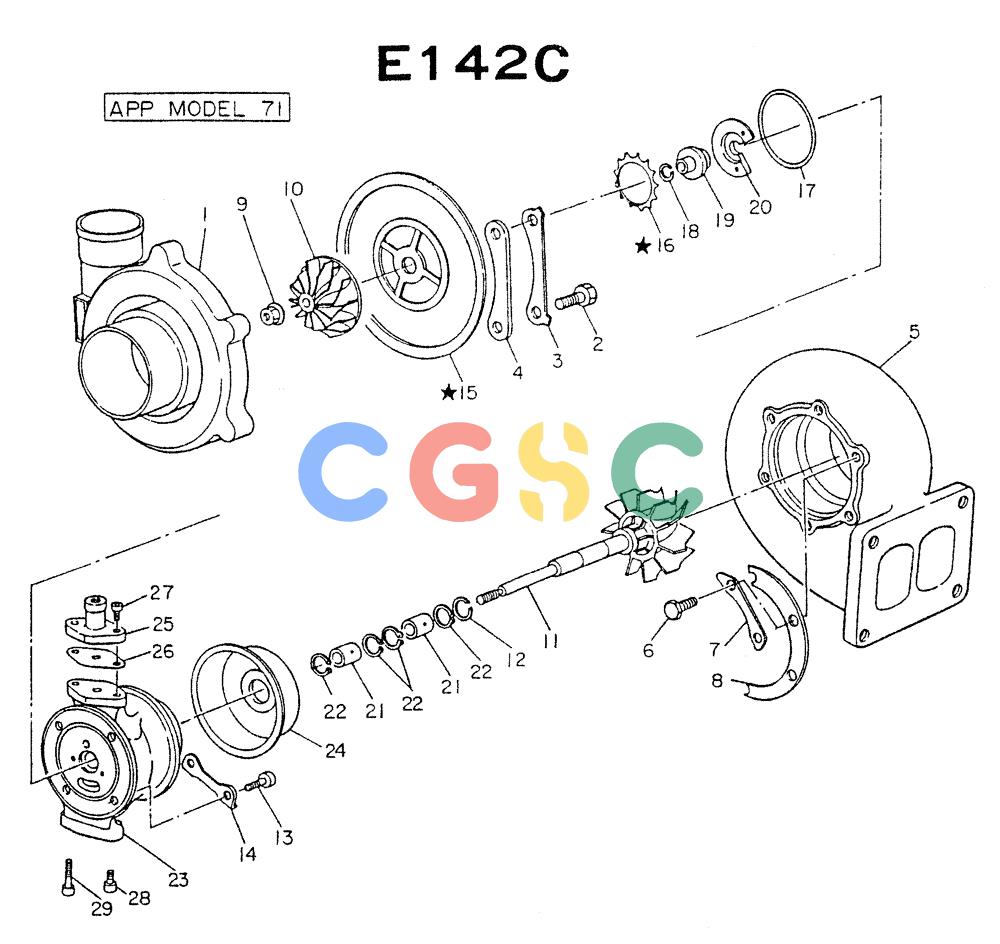

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (04-006) - TURBO CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
619 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-29. | VG1420195003 | [1] | TURBOCHARGER | KOBTURBO CHARGER |
| 1. | VG1422699004 | [1] | HOUSING-COMP. | |
| 2. | VG1422099004 | [6] | SCREW | KOBBOLT |
| 3. | VG1421999006 | [3] | PLATE PLATE-LOCK | PLATE PLATE-LOCK |
| 4. | VG1422199004 | [3] | CLAMP CLAMP | CLAMP CLAMP |
| 5. | VG1420299004 | [1] | HOUSING-TURBINE | |
| 6. | VG1422099003 | [6] | SCREW | KOBBOLT |
| 7. | VG1421999002 | [3] | PLATE | KOBPLATE-LOCK |
| 8. | VG1422199005 | [2] | CLAMP | KOBCLAMP |
| 9. | VG1422599001 | [1] | NUT LOCK NUT-LOCK | NUT LOCK NUT-LOCK |
| 10. | VG1422499004 | [1] | IMPELLER | |
| 11. | VG1420499001 | [1] | TURBINE | KOBSHAFT-WHEEL |
| 12. | VG1420599004 | [1] | PISTON RING | KOBRING-PISTON |
| 13. | VG1421899000 | [4] | BOLT BOLT | BOLT BOLT |
| 14. | VG1421999000 | [2] | PLATE | KOBPLATE-LOCK |
| 15. 16. | VG1422299004 | [1] | PLATE | KOBPLATE ASSY-BACK |
| 17. | VG1421799000 | [1] | SEAL RETAINER | KOBRING-SEAL |
| 18. | VG1420599003 | [1] | PISTON RING | KOBRING-PISTON |
| 19. | VG1421599001 | [1] | COLLAR CLAMP | KOBCOLLER-THRUST |
| 20. | VG1421499001 | [1] | SET OF STD MAIN BRGS | KOBBEARING-THRUST |
| 21. | VG1420799001 | [2] | SET OF STD MAIN BRGS | KOBBEARING |
| 22. | VG1423699000 | [4] | RETAINER | KOBRING-RETAINING |
| 23. | VG1420899003 | [1] | HOUSING-CENTER | |
| 24. | VG1422399002 | [1] | WHEEL SHROUD-WHEEL | WHEEL SHROUD-WHEEL |
| 25. | VG1421099003 | [1] | ADAPTER ADAPTER | ADAPTER ADAPTER |
| 26. | VG1420999001 | [1] | GASKET | KOBGASKET |
| 27. | VG1421199002 | [2] | SCREW | |
| 28. | VG1421199003 | [1] | SCREW | |
| 29. | VG1421199005 | [1] | SCREW | |
